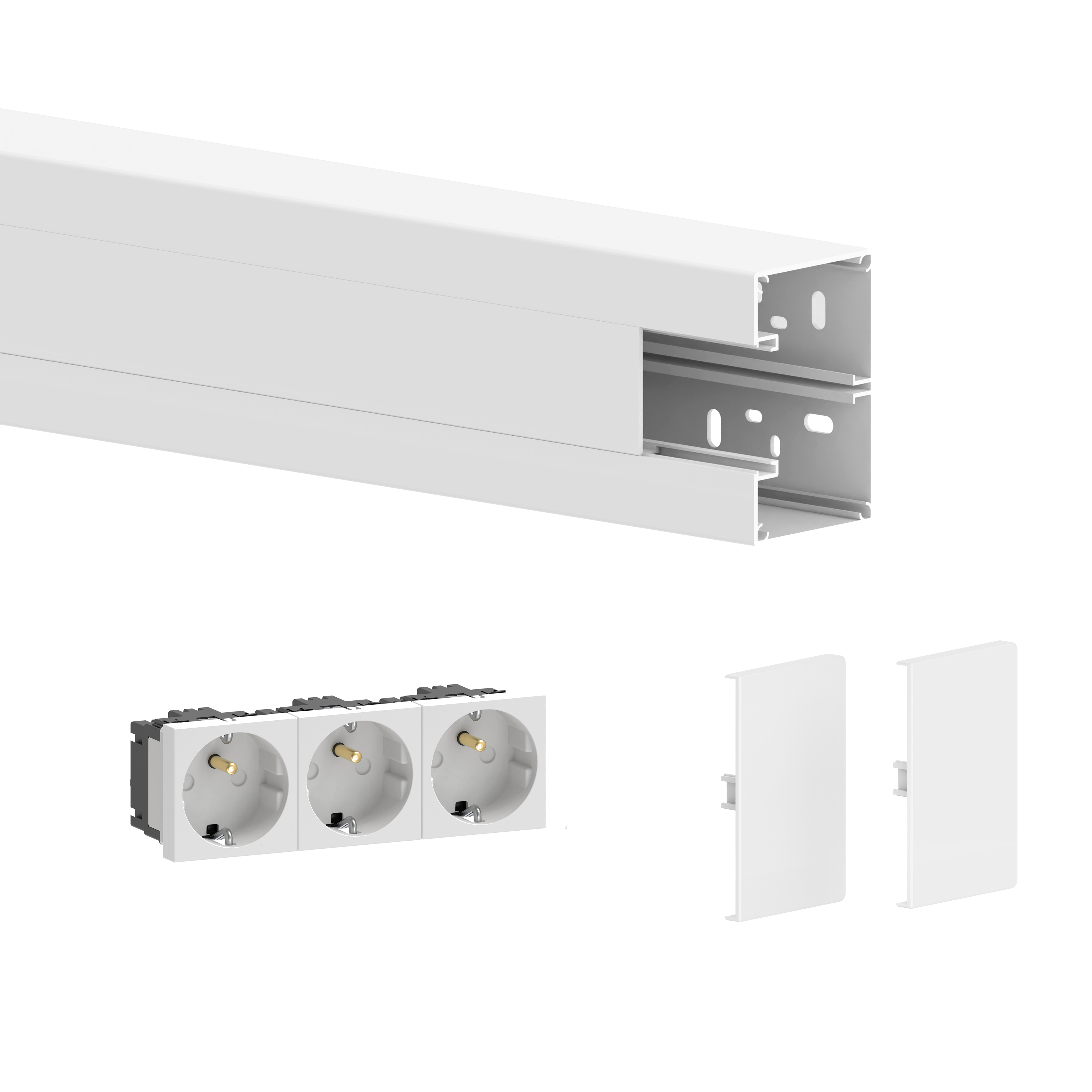

Wall trunking set MBR 65x100/45-9010, 2x end-piece + triple socket outlet (B/F), 1.000 mm
| Manufacturer | GGK |
| Item number | ws10224 |
| List price excl. VAT | on request |
| Product group | 20-Wall installation |
| Packing unit | 120 pieces |
| EAN code | 4018475344754 |
| Tariff number | 39259020 |
| Product status |
Core range
|
Wall trunking set made of PVC according to DIN EN 50085-2-1 for laying cables directly on the wall or on wall brackets, consisting of a 1 m wall trunking with internal 45 mm cover for device installation in 45x45 mm format and base with double-row base perforation for fastening, two end pieces overlapping on 3 sides for covering the open trunking ends and one pre-assembled triple built-in socket outlet in Belgian/French version (B/F) for horizontal device installation. A solution for achieving IP41 protection is available on request. Note: Sound and fire protection measures must be carried out professionally.

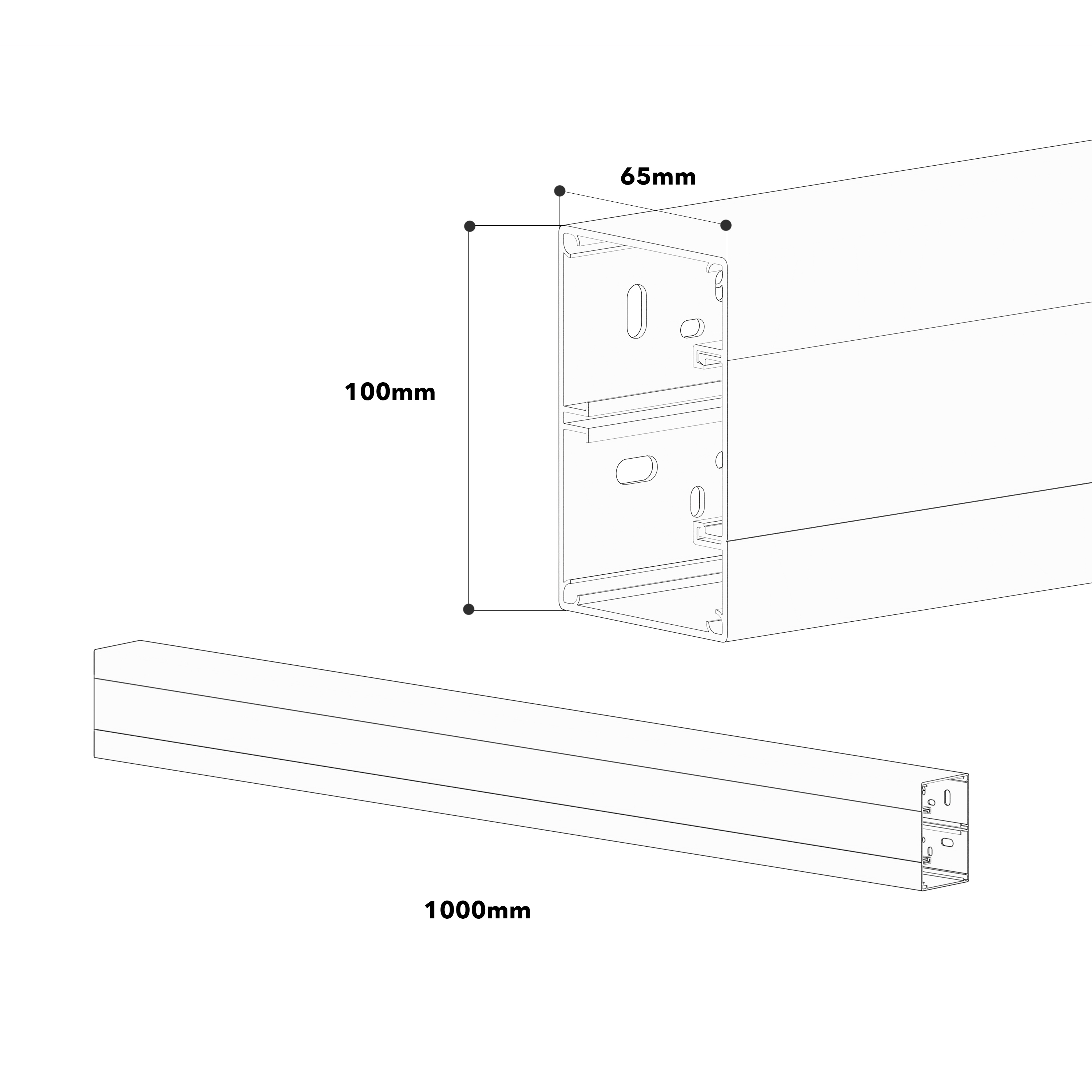

| Width | 100 mm |
| Depth | 65 mm |
| Length | 1000 mm |
| Number of covers | 1 |
| Covers supplied with the product | yes |
| Cover width 1 | 45 mm |
| Symmetric | yes |
| Construction type rectangular | yes |
| Material | plastic |
| Halogen free | no |
| Anti-bacterial treatment | no |
| Surface protection | untreated |
| Colour | white |
| RAL-number | 9010 |
| Construction rear wall (inner side) | Continuous DIN-rail |
| With protective foil | yes |
| Number of plug-in partitions | 1 |
| With duct connector | no |
| Mounting perforation in bottom | yes |
| Mounting method cover | Inner lying |
| With cable fixing clip | no |
| Useful cross section | 5220 mm² |
| Degree of protection (IP) | IP30 |
| Impact strength | IK08 |
| Operating temperature | from -5 to 60 °C |
