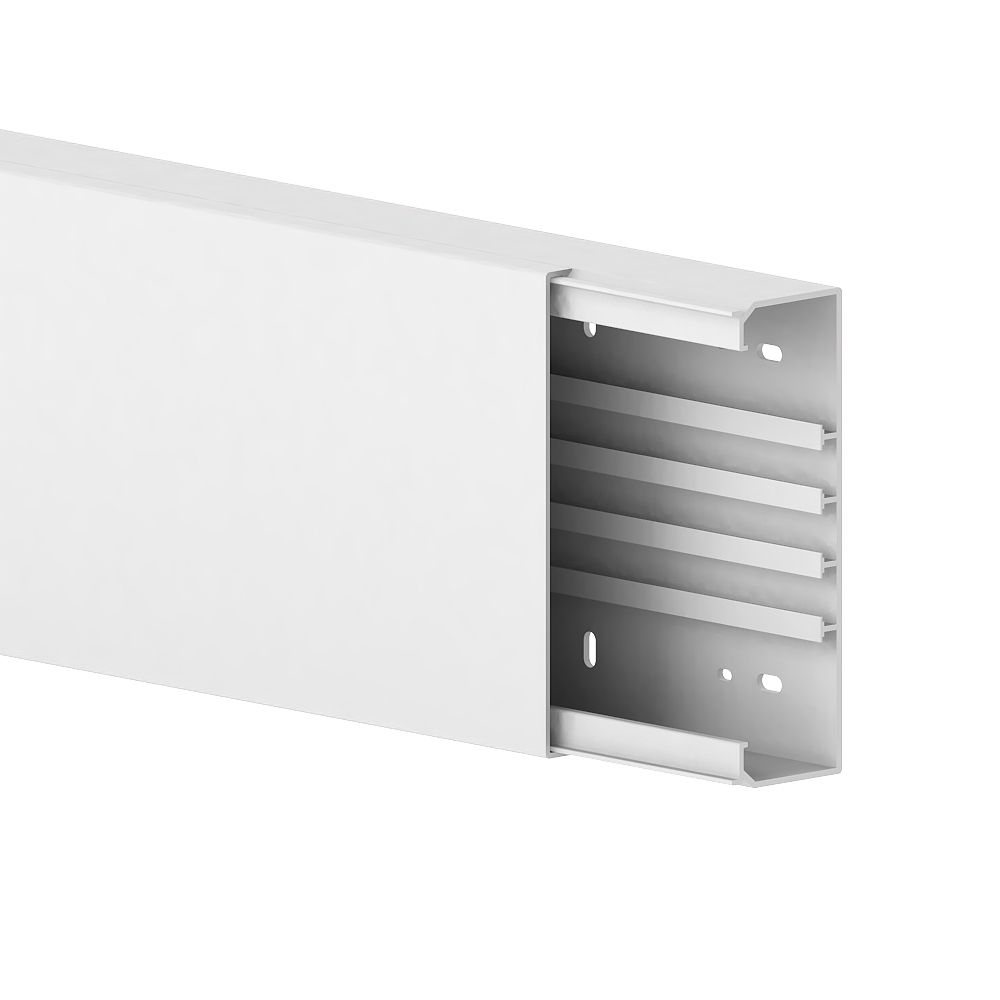

Installation trunking FB 60x200-9010, with base perforation, pure white, 1.300 mm
| Manufacturer | GGK |
| Item number | EAN8014 |
| List price excl. VAT | on request |
| Product group | 10-Cable routing |
| Packing unit | 24 pieces |
| EAN code | 4018475338456 |
| Tariff number | 39259020 |
| Product status |
Core range
|

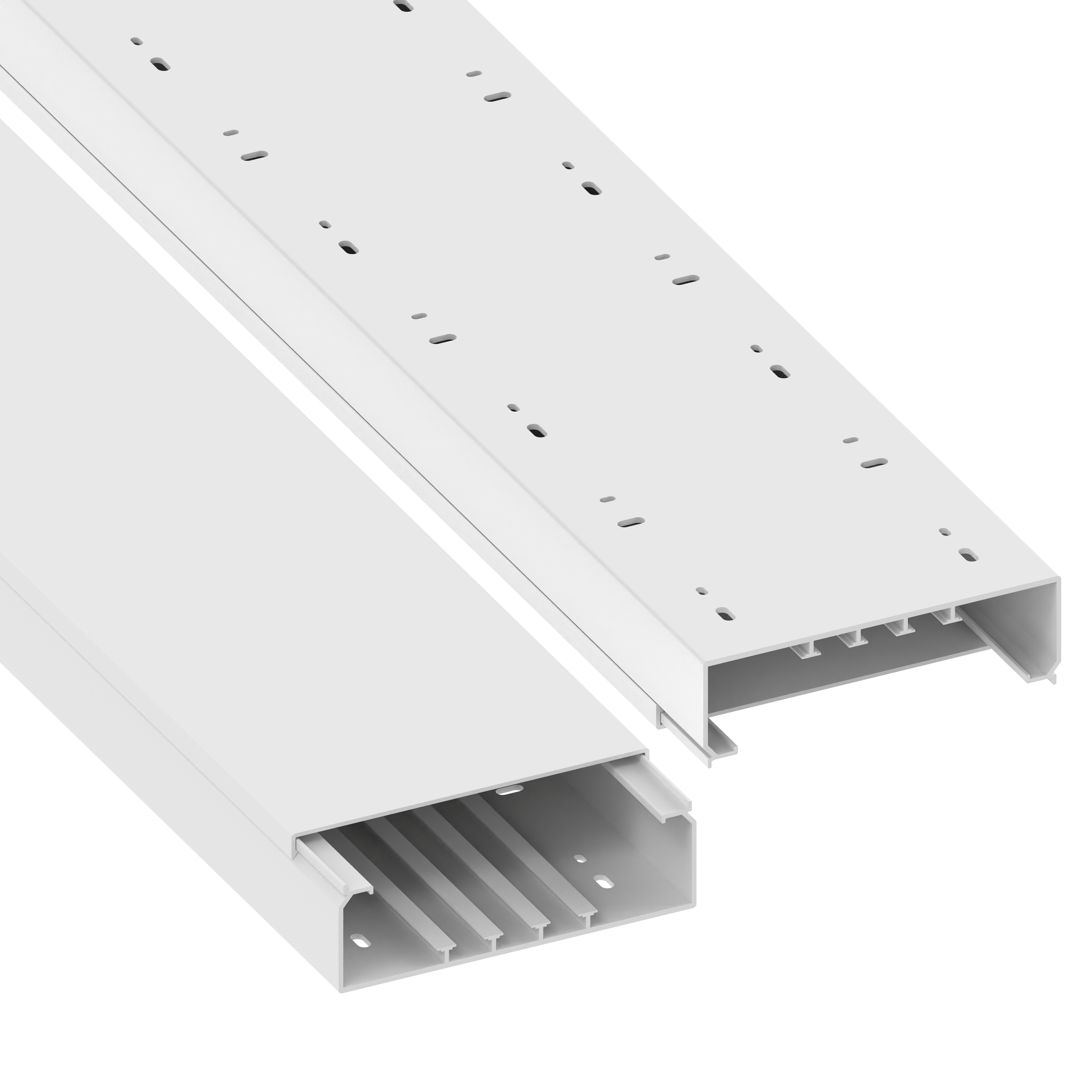

PVC installation trunking according to DIN EN 50085-2-1 for cable routing on walls and ceilings, consisting of completely overlapping cover and base with double-row base perforation for fastening and two DIN rails for the installation of device installation boxes as well as snap-in partition walls, 2 freely movable cable clips are included per 1.3 metre length. A solution for achieving IP41 protection is available on request. Note: Sound and fire protection measures must be carried out professionally.

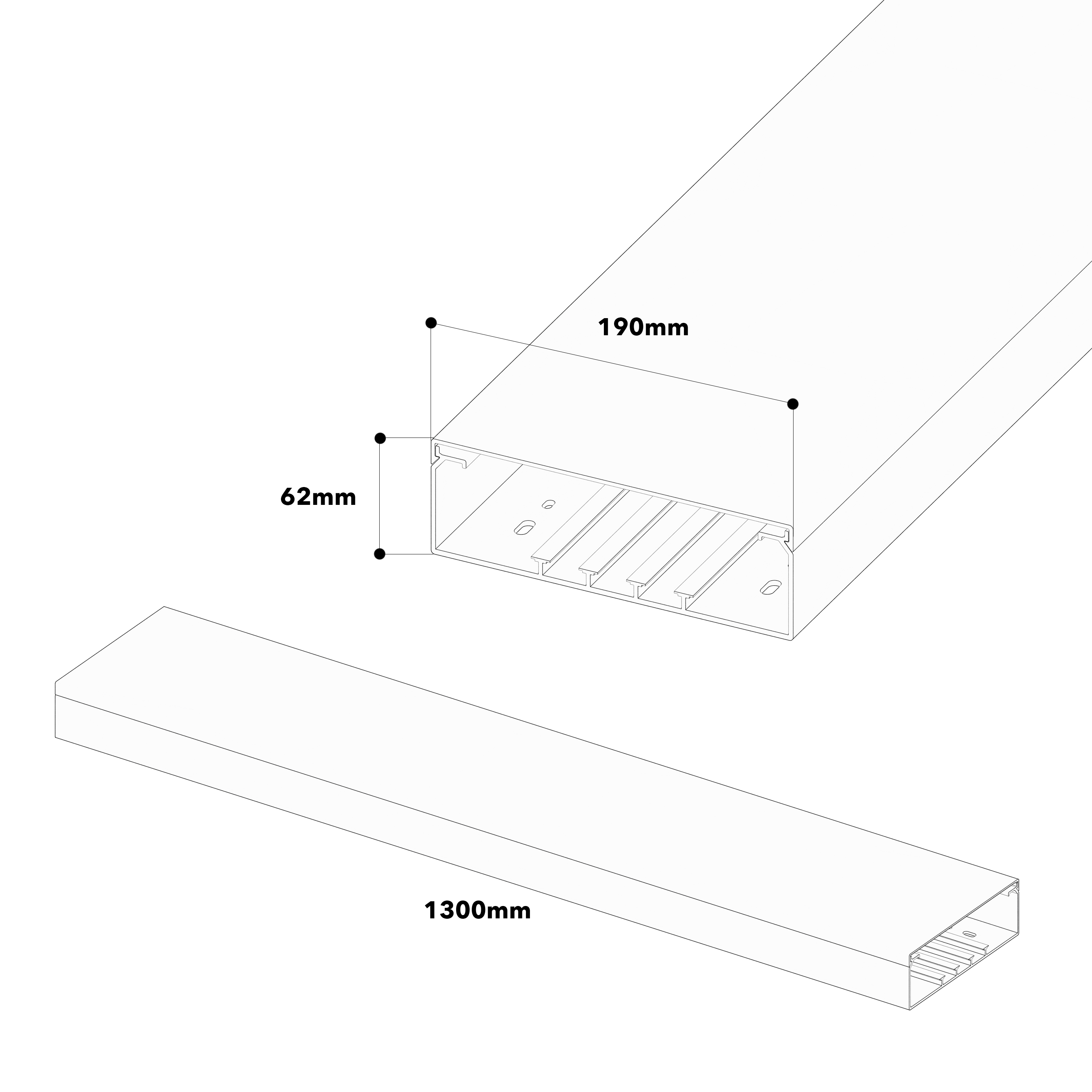

| Height | 62 mm |
| Width | 190 mm |
| Length | 1300 mm |
| Useful cross section | 9682 mm² |
| Material | plastic |
| Halogen free | no |
| Anti-bacterial treatment | no |
| Surface protection | untreated |
| Suitable for circuit integrity | no |
| Colour | white |
| Transparent | no |
| RAL-number | 9010 |
| Number of permanent partitions | 0 |
| Number of plug-in partitions | 2 |
| Type of fastening | Bottom perforation |
| Cover model | loose |
| With cable fixing clip | yes |
| With protective foil | no |
| With duct connector | no |
| Delivery on roll | no |
| Pre-stamping | no |
| Degree of protection (IP) | IP30 |
| Impact strength | IK10 |
| Operating temperature | from -5 to 60 °C |
