Installation column 62x110-9010, 2800 mm, 1-sided, aluminium, pure white
Manufacturer | GGK |
Item number | 18670 |
List price excl. VAT | on request |
Product group | 30-floor and ceiling installation |
Packing unit | 1 piece |
EAN code | 4018475331082 |
Tariff number | 76109090 |
Product status |
Core range
|

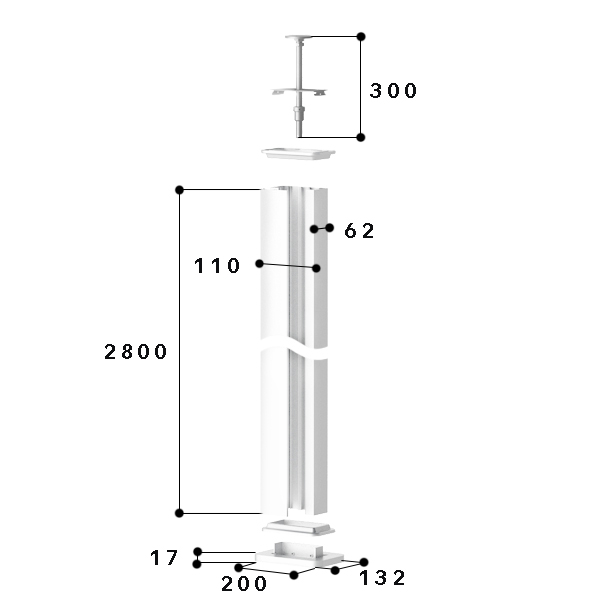

Floor/ceiling powerpole made of aluminium with a 76.5 mm wide fixing track for device installation of commercially available switch ranges in combination with accessory mounting boxes or M45 built-in devices with the aid of front-locking installation frames, cable entry through the floor or via the ceiling, consisting of a base with a DIN rail for snap-in mounting of a partition wall made of plastic for separating cables and an cover as a pole body (height 2. 800 mm), a permanently mountable base plate (width: 200 mm, depth: 132 mm, material thickness: 17 mm), two 4-sided covering laminations for a clean transition from the base plate to the column body and from the column body to the ceiling, a top plate for mounting the telescopic unit and a universal telescope for tensioning. Potential equalisation and earthing measures must be carried out professionally. The specified length corresponds to the length of the column body.
Pillar shape | rectangular |
Model | single-sided |
Prewired | no |
Height levelling | 300 mm |
Column height | 2800 - 2800 mm |
Column depth | 62 mm |
Column width | 110 mm |
Number of usable covers | 1 |
Cover width | 80 mm |
Cover depth | 15 mm |
Type of fastening | telescope |
Place variable | no |
Cable entry | top/bottom |
Through-going profile | yes |
Material installation column | aluminium |
Material installation column halogen free | yes |
Surface protection column | coated |
Colour column | white |
RAL-number column | 9010 |
Material cover | aluminium |
Material cover halogen free | yes |
Cover surface | coated |
RAL-number cover | 9010 |
Useful cross section | 6005 mm² |
Floor mounting possible | yes |
Ceiling mounting | yes |
