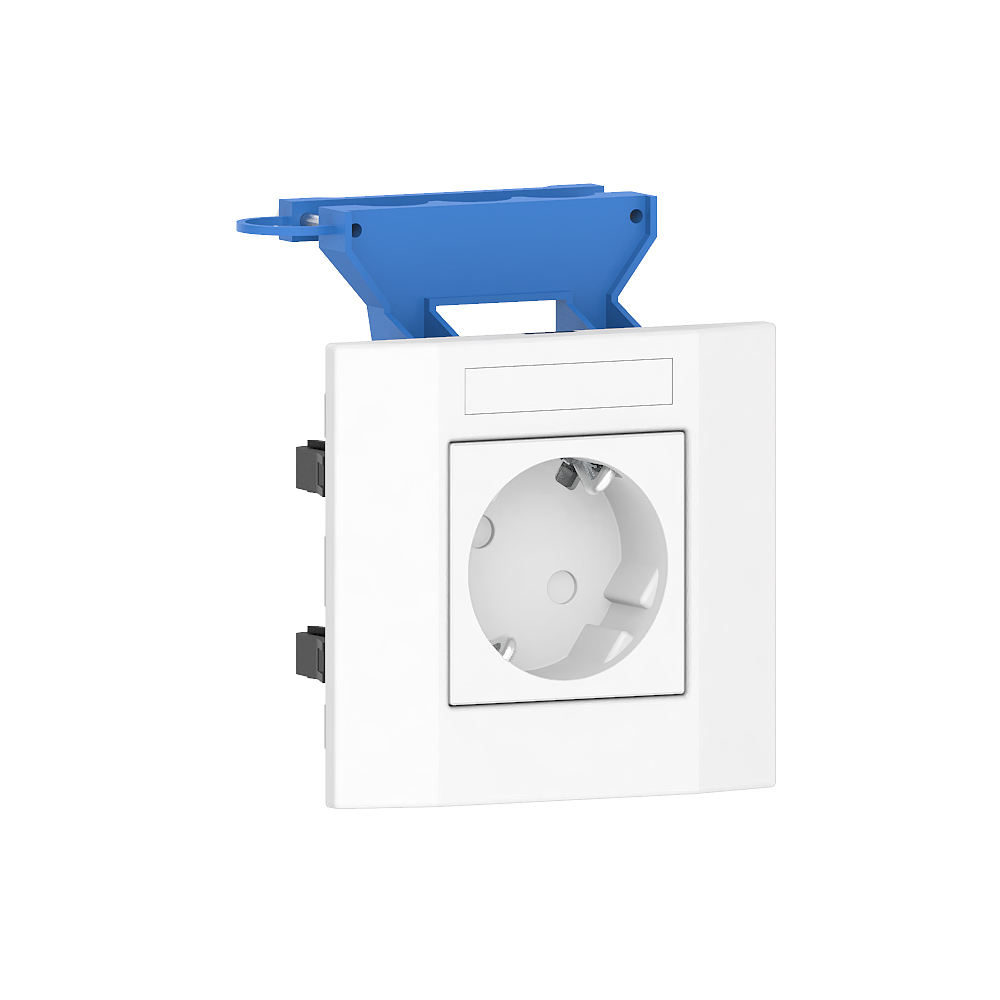

Socket single KSE/AR-1V-9010, adapter frame, Installation column, white
| Manufacturer | GGK |
| Item number | 4689 |
| List price excl. VAT | 27,86 EUR / piece |
| Product group | 20-Wall installation |
| Packing unit | 1 piece |
| EAN code | 4018475338197 |
| Tariff number | 85366990 |
| Product status |
Core range
|
Pre-assembled 1-fold socket unit, consisting of mounting support, cover frame with labelling field 8x40mm, cable fixing and a 1-fold M45 socket 45° angled, cable connection via plug-in terminals, 2-pole, 16 A/250 V~, with connection terminals according to VDE 0620, suitable for 1 angled or flat plug, with increased contact protection according to VDE 0620, for installation in wall trunking and service poles with a 76.5 mm wide fixing track, for vertical device installation.
| Model | SCHUKO |
| Number of units | 1 |
| Connection type | push-in clamp |
| With enhanced contact protection | yes |
| Label space/information surface | yes |
| Colour | aluminium |
| RAL-number (similar) | 9010 |
| Mounting method | wall trunking |
| Type of fastening | Snap mounting |
| Material | plastic |
| Halogen free | no |
| Surface finishing | matt |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
| Width of device | 160 mm |
| Height of device | 85 mm |
| Depth of device | 30 mm |
