Wall trunking BR 60x170/80-9010, PVC, base and cover, 80 mm cover, pure white
Manufacturer | GGK |
Item number | 18040 |
List price excl. VAT | 56,85 EUR / meter |
Product group | 20-Wall installation |
Packing unit | 8 meters |
EAN code | 4018475268234 |
Tariff number | 39259020 |
Product status |
Core range
|
Wall duct made of PVC to DIN EN 50085-2-1 for cable laying directly on the wall or on wall brackets, 80 mm cover for device installation of commercially available switch ranges in combination with accessory mounting boxes or M45 built-in devices with the aid of front-locking adapter frames, base with four-row base perforation for fastening and a DIN rail for snap-in mounting of a plastic partition for separating cables. Four BR easy cavity wall box adapters for the installation of standard cavity wall boxes with a maximum installation depth of 50 mm are included free of charge with each packaging unit. Couplings as mounting aids and for easy connection of two bases are additionally available as accessories. Note: Sound and fire protection measures must be carried out professionally.

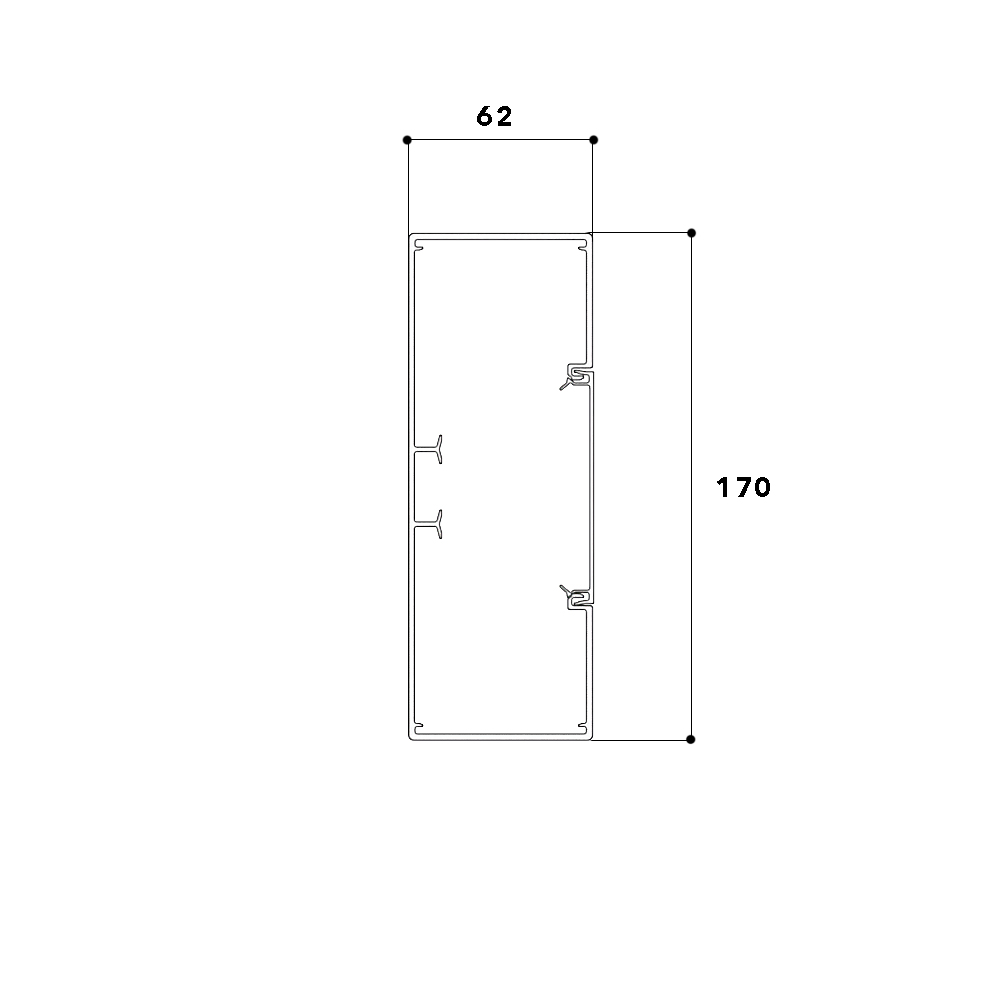

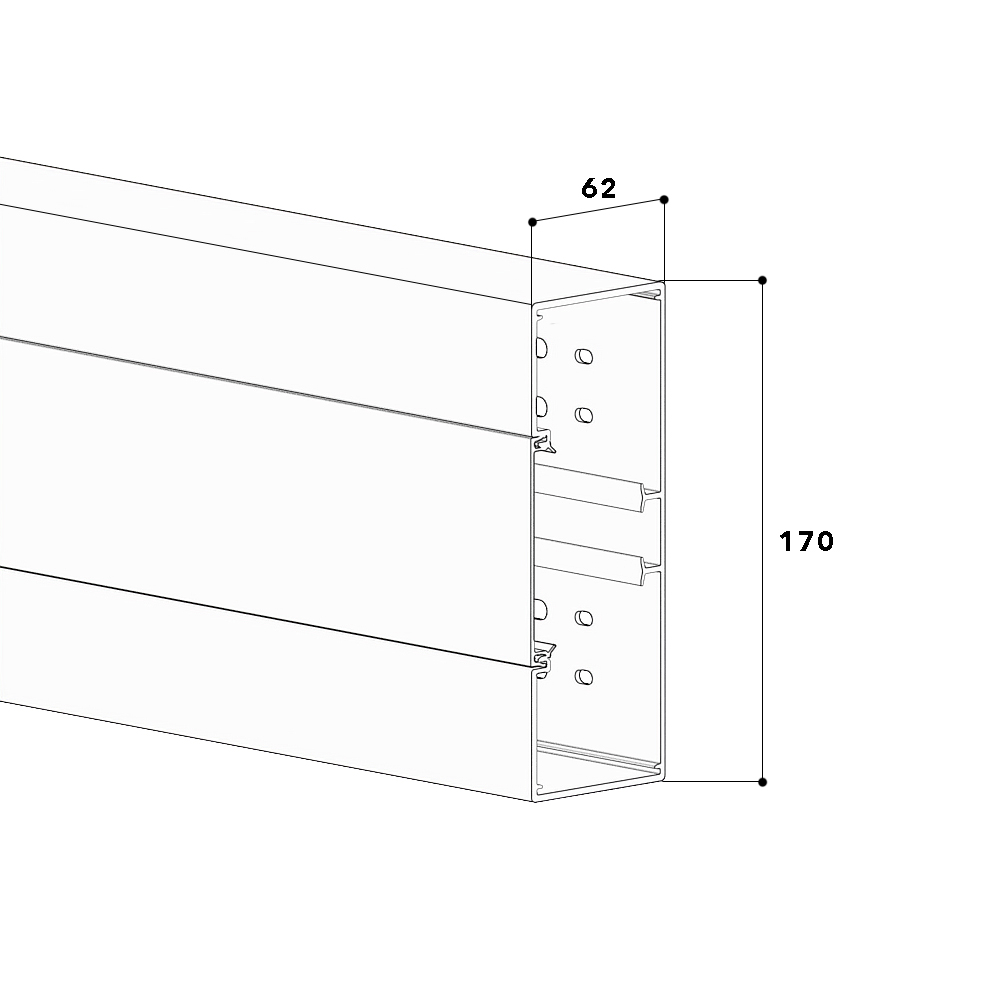

Width | 170 mm |
Depth | 62 mm |
Length | 2000 mm |
Number of covers | 1 |
Covers supplied with the product | yes |
Cover width 1 | 80 mm |
Symmetric | yes |
Construction type rectangular | yes |
Material | plastic |
Halogen free | no |
Colour | pure white |
RAL-number | 9010 |
Construction rear wall (inner side) | continuous DIN-rail |
With protective foil | yes |
Number of plug-in partitions | 1 |
Mounting perforation in bottom | yes |
Mounting method cover | inner lying |
Useful cross section | 8800 mm² |
