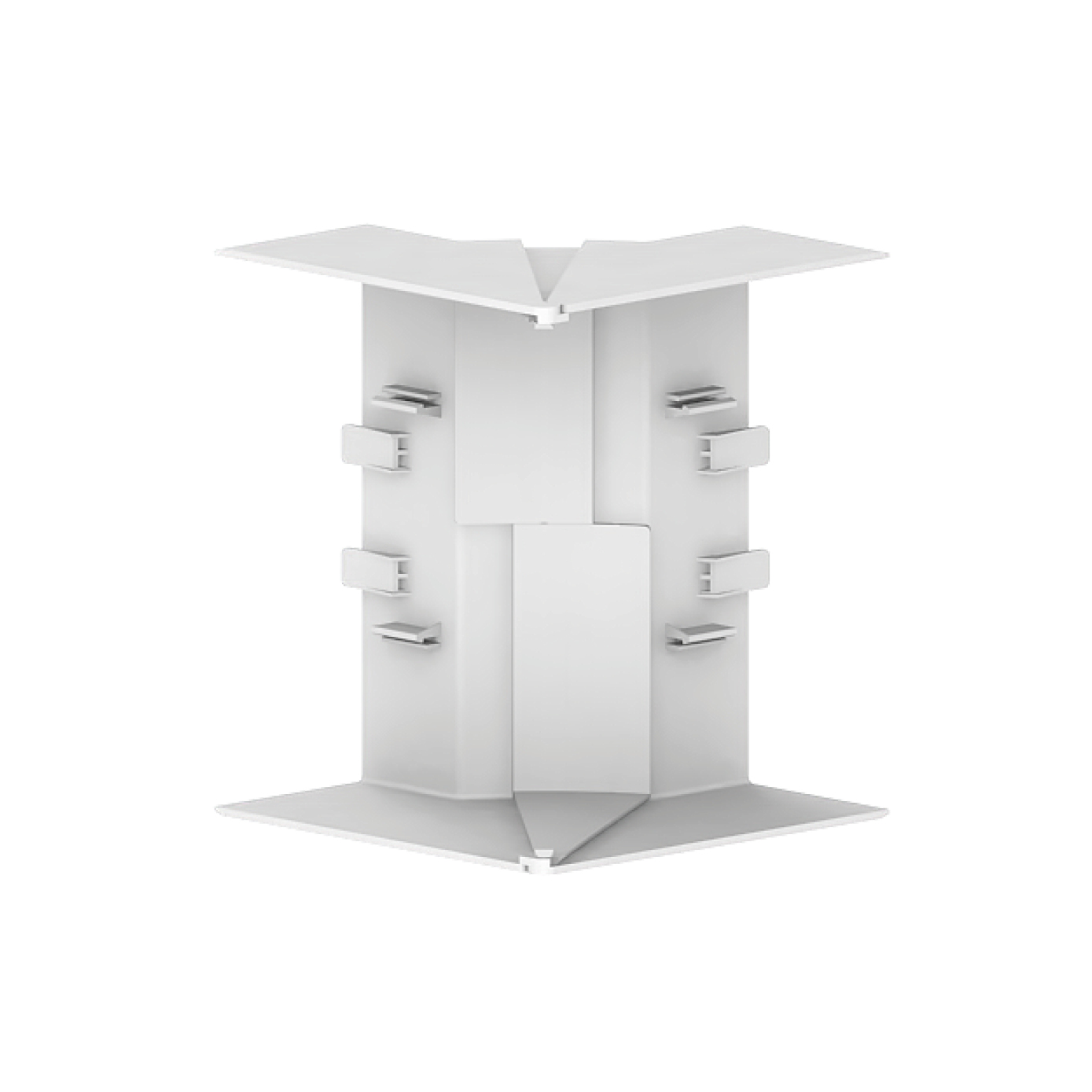

Inner corner adjustable BR 60x170/80-9010, plastic hf, cut-covering, pure white
| Manufacturer | GGK |
| Item number | 18364 |
| List price excl. VAT | 50,02 EUR / piece |
| Product group | 20-Wall installation |
| Packing unit | 1 piece |
| EAN code | 4018475278837 |
| Tariff number | 39259020 |
| Product status |
Core range
|
Inner corner as moulded part for wall duct, angle-adjustable with an adjustment range of +/- 10°, for corner bypass in rooms. Note: When installing the wall duct bases, a minimum distance of 110 mm to the wall must be maintained.
| Width | 170 mm |
| Depth | 62 mm |
| Shape | symmetrical |
| Number of covers | 1 |
| Cover width 1 | 80 mm |
| Model | moulded hood |
| Angle | 80 - 100 ° |
| Material | plastic |
| Halogen free | no |
| Colour | pure white |
| RAL-number | 9010 |
| With duct connector | no |
| Mounting perforation in bottom | yes |
| Mounting method cover | inner lying |
