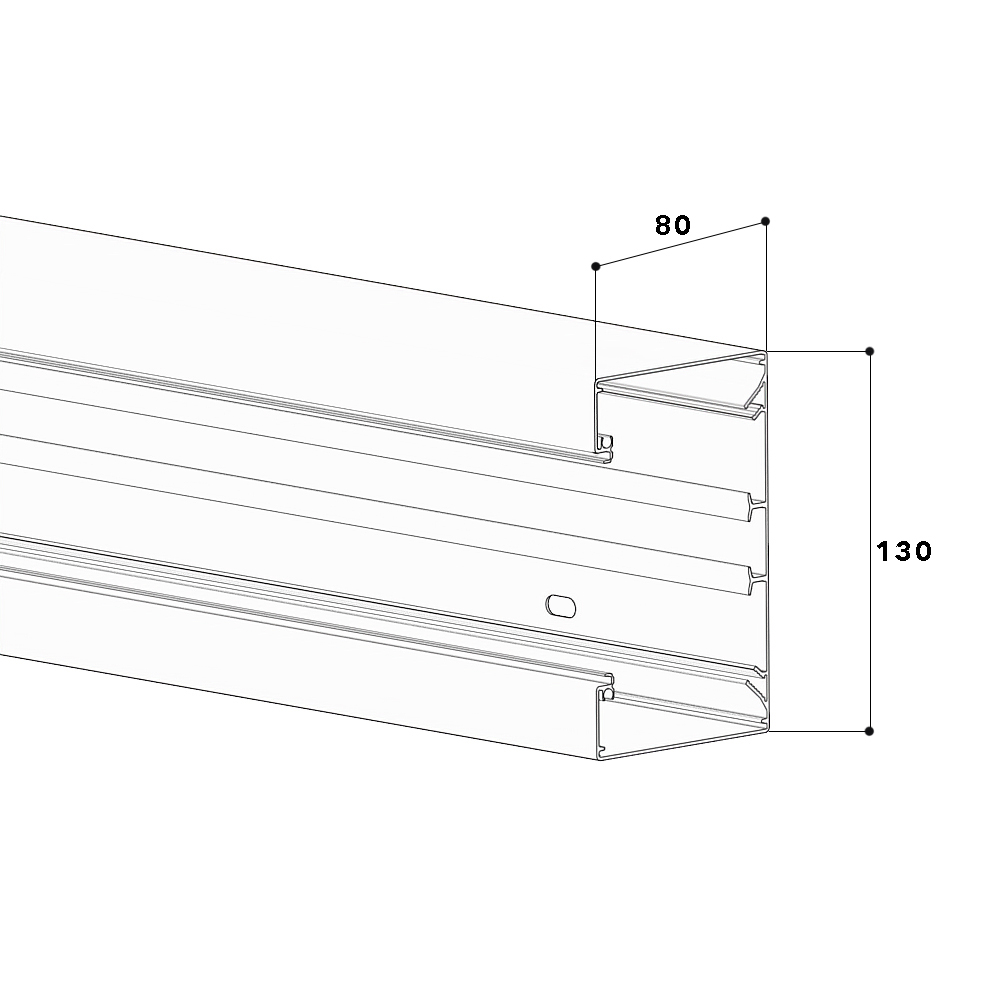

Wall trunking-base BRA 80x130, aluminium, 80 mm cover, anodised

Manufacturer GGK
Item number 18147
List price excl. VAT on request
Product group 20-Wall installation
Packing unit 8 meters
EAN code 4018475271715
Tariff number 76109090
Product status
Core range

Aluminium trunking base to DIN EN 50085-2-1 for cable routing directly on the wall or on wall brackets, for an 80 mm cover for device installation of commercially available switch ranges in combination with accessory mounting boxes or M45 built-in devices with the aid of front-locking adapter frames, base part with five-row base perforation for fastening, a DIN rail for snap-in mounting of a plastic partition wall for separating cables and earthing grooves for equipotential bonding by means of earthing cable. Couplings as mounting aids and for easy connection of two base units are additionally available as accessories. Note: Potential equalisation, earthing, sound and fire protection measures must be carried out professionally.

Width 130 mm
Depth 80 mm
Length 2000 mm
Number of covers 1
Covers supplied with the product no
Cover width 1 80 mm
Symmetric yes
Construction type rectangular yes
Material aluminium
Halogen free yes
Surface protection anodised
Colour silver
Construction rear wall (inner side) continuous DIN-rail
With protective foil no
Number of plug-in partitions 1
Mounting perforation in bottom yes
Mounting method cover inner lying
Useful cross section 9984 mm²
