Socket single 45° M45-1W-9010, 45x45mm with enhanced contact protection, white

Manufacturer GGK
Item number 6964
List price excl. VAT 8,16 EUR / piece
Product group 40-Installation devices
Packing unit 1 piece
EAN code 4018475265288
Tariff number 85366990
Product status
Core range

Single flush-mounted socket outlet, 45° angled, cable connection via plug-in terminals, 2-pole, 16 A/250 V~, with connection terminals to VDE 0620, suitable for 1 angled or flat plug, with increased protection against accidental contact to VDE 0620, for installation in wall trunking and service poles with 45 mm top section and all mounting frames/device supports for accommodating compact M45 built-in devices, for vertical device installation.

Model SCHUKO
Number of units 1
Connection type push-in clamp
With enhanced contact protection yes
Label space/information surface no
Colour white
RAL-number (similar) 9010
Mounting method wall trunking
Type of fastening Snap mounting
Material plastic
Surface finishing matt
Nominal current 16 A
Nominal voltage 250 V

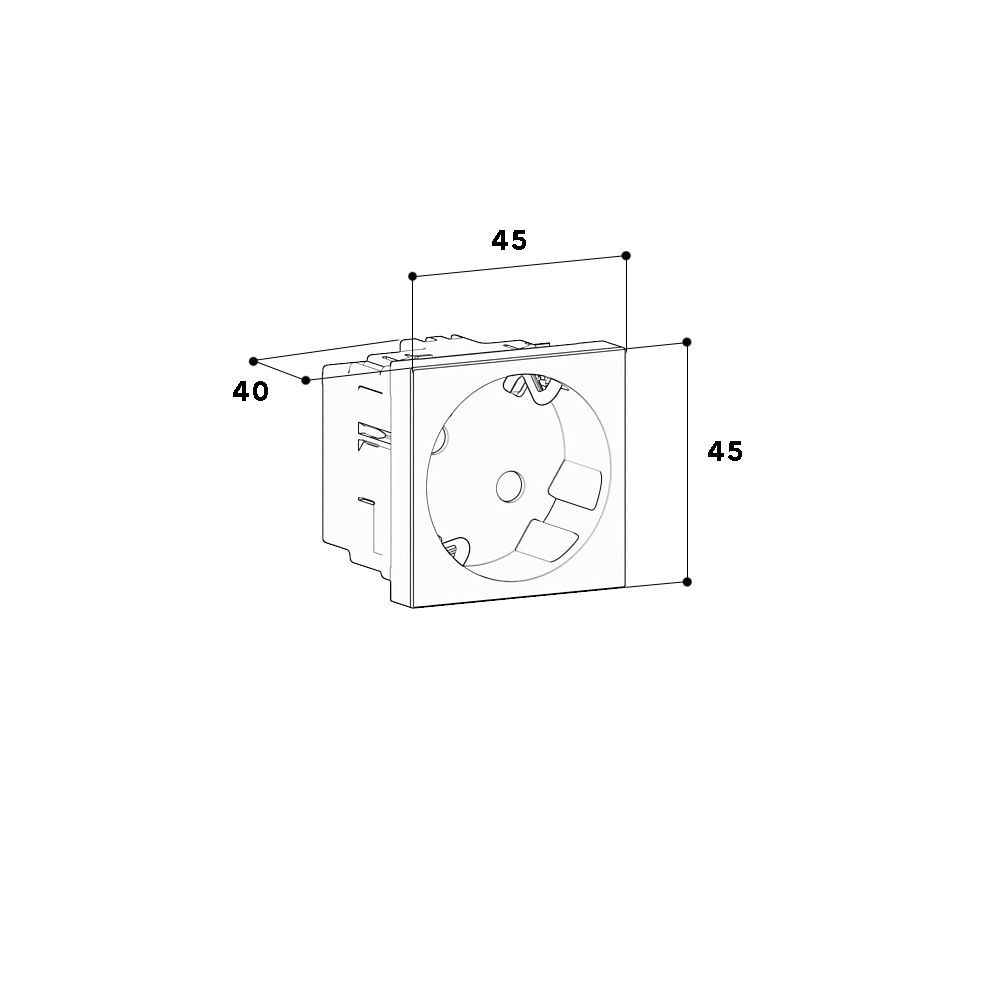

Width of device 45 mm
Height of device 45 mm
Depth of device 40 mm
