Socket double 45° M45-2W-9010, 45x45mm with enhanced contact protection, white
| Manufacturer | GGK |
| Item number | 6944 |
| List price excl. VAT | 12,62 EUR / piece |
| Product group | 40-Installation devices |
| Packing unit | 1 piece |
| EAN code | 4018475265080 |
| Tariff number | 85366990 |
| Product status |
Core range
|
Double socket outlet, 45° angled, cable connection via plug-in terminals, 2-pole, 16 A/250 V~, with connection terminals to VDE 0620, suitable for 2 angled or flat plugs, with increased protection against accidental contact to VDE 0620, for installation in wall trunking and service poles with 45 mm top section and all mounting frames/device carriers for accommodating compact M45 built-in devices, for vertical device installation.
| Model | SCHUKO |
| Number of units | 2 |
| Connection type | push-in clamp |
| With enhanced contact protection | yes |
| Label space/information surface | no |
| Colour | white |
| RAL-number (similar) | 9010 |
| Mounting method | wall trunking |
| Type of fastening | Snap mounting |
| Material | plastic |
| Surface finishing | matt |
| Nominal current | 16 A |
| Nominal voltage | 250 V |

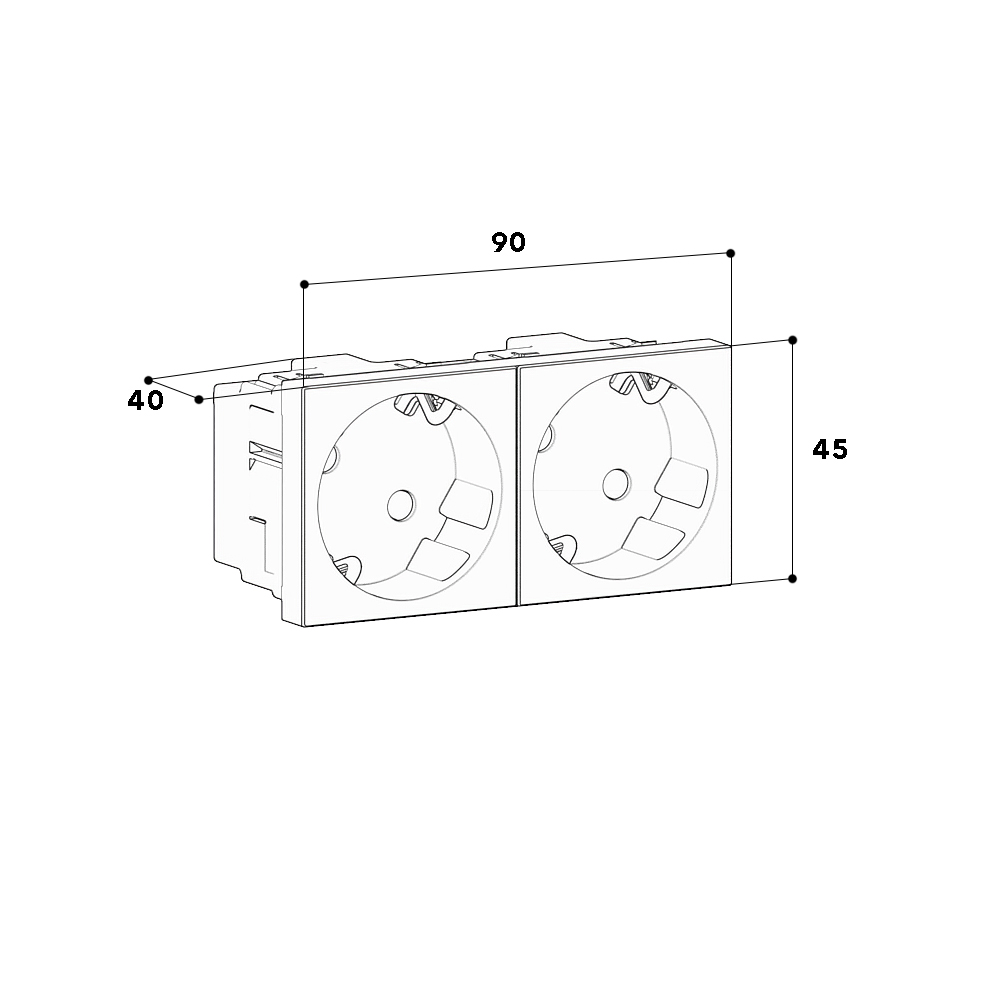

| Width of device | 90 mm |
| Height of device | 45 mm |
| Depth of device | 40 mm |
