Socket single 0° M45-1G-9010, 45x45mm with enhanced contact protection, white

Manufacturer	GGK
Item number	6960
List price excl. VAT	8,53 EUR / piece
Product group	40-Installation devices
Packing unit	1 piece
EAN code	4018475265240
Tariff number	85366990
Product status	Core range

Product data sheet

Request individual solution

Product description
Technical features
Downloads

Single flush-type socket outlet, 0° straight, cable connection via plug-in terminals, 2-pole, 16 A/250 V~, with connection terminals to VDE 0620, suitable for 1 right-angle or flat plug, with increased contact hazard protection to VDE 0620, for installation in wall trunking with 45 mm top section and all installation frames/device carriers for accommodating compact M45 built-in devices, for horizontal device installation. Note: The strain relief must be ordered separately.

Model	Earthing pin
With signal lamp	no
Imprint/indication	other
Connection type	push-in clamp
With hinged lid	no
With enhanced contact protection	yes
Label space/information surface	no
Colour	white
RAL-number (similar)	9010
Transparent	no
With function lighting	no
With orientation lighting	no
Special power supply	other
Mounting method	wall duct
Type of fastening	Snap mounting (engagement)
Material	plastic
Material quality	Thermoplastic
Halogen free	no
Surface protection	untreated
Surface finishing	Matt
Nominal current	16 A
Nominal voltage	250 V
Suitable for degree of protection (IP)	other
Impact strength	other

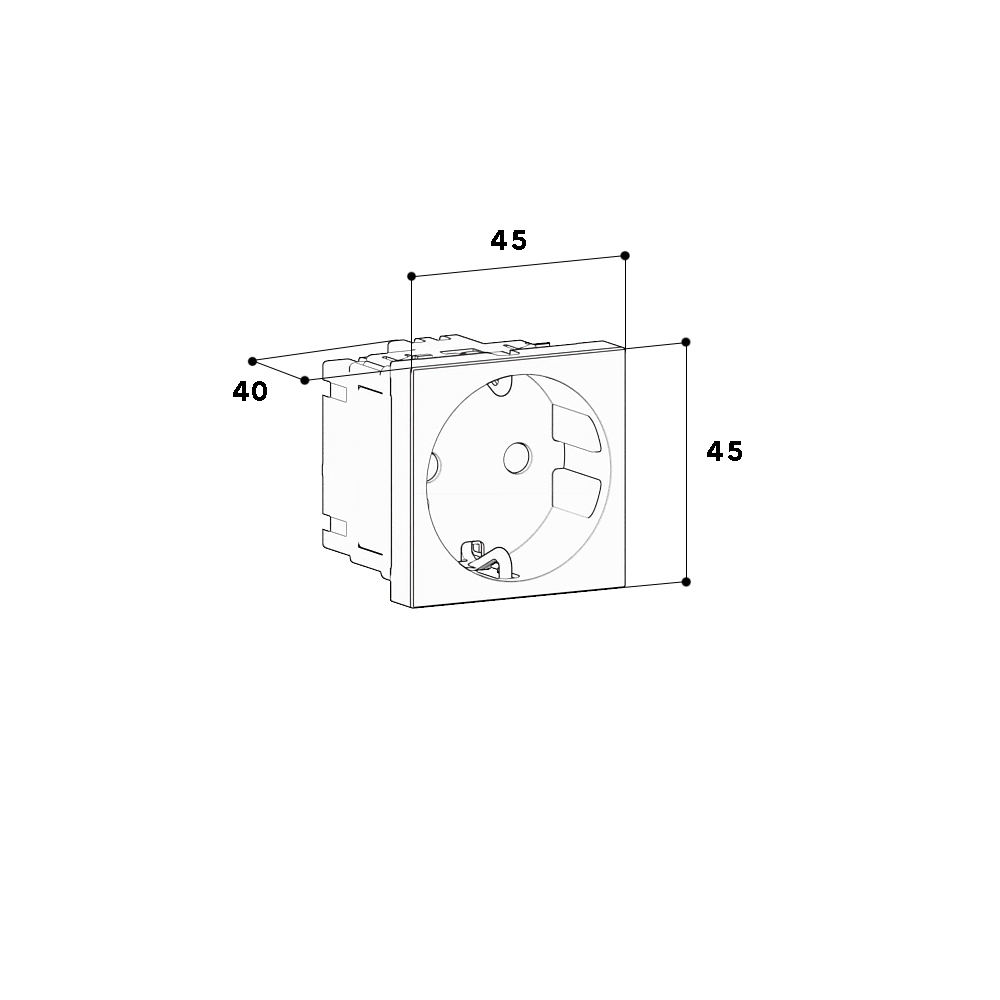

Width of device	45 mm
Height of device	45 mm
Depth of device	40 mm
Compatible with Apple HomeKit	no
Compatible with Google Assistant	no
Compatible with Amazon Alexa	no
Colour of switch operator	white
Mounting direction	Horizontal
Number of ports USB-A	0
Number of socket outlets	1
With Wi-Fi signal repeater	no
With built-in bluetooth speaker	no
Compliant with UK Building Regulations Part M	no
