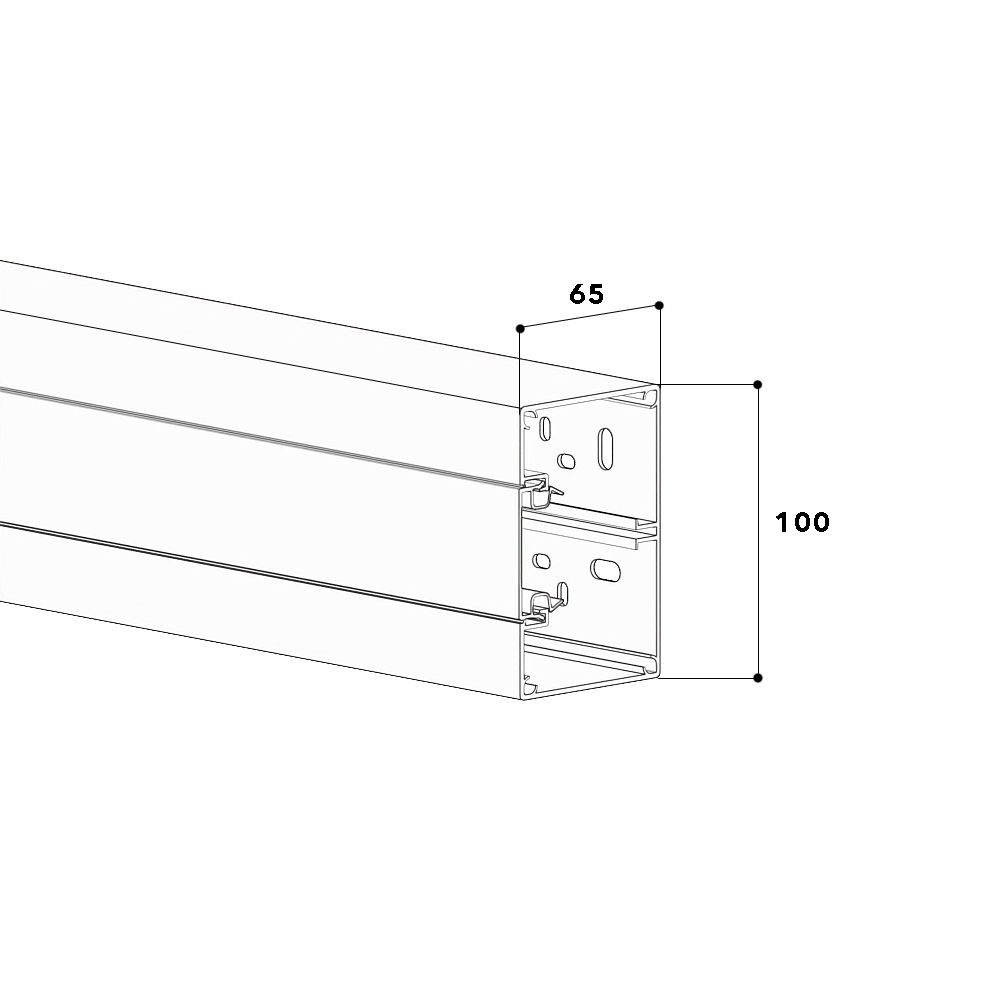

Wall trunking MBR 65x100/45-9010, PVC, base and cover, 45 mm cover, pure white
| Manufacturer | GGK |
| Item number | 7963 |
| List price excl. VAT | 36,76 EUR / meter |
| Product group | 20-Wall installation |
| Packing unit | 8 meters |
| EAN code | 4018475341067 |
| Tariff number | 39259020 |
| Product status |
Core range
|
Wall duct made of PVC to DIN EN 50085-2-1 for laying cables directly on the wall or on wall brackets, internal 45 mm Cover for installation of compact M45 built-in devices in 45x45 mm format, base with double-row base perforation for fastening and a mounting rail for snap-in mounting of a plastic partition wall for separating cables. Note: Sound and fire protection measures must be carried out professionally.

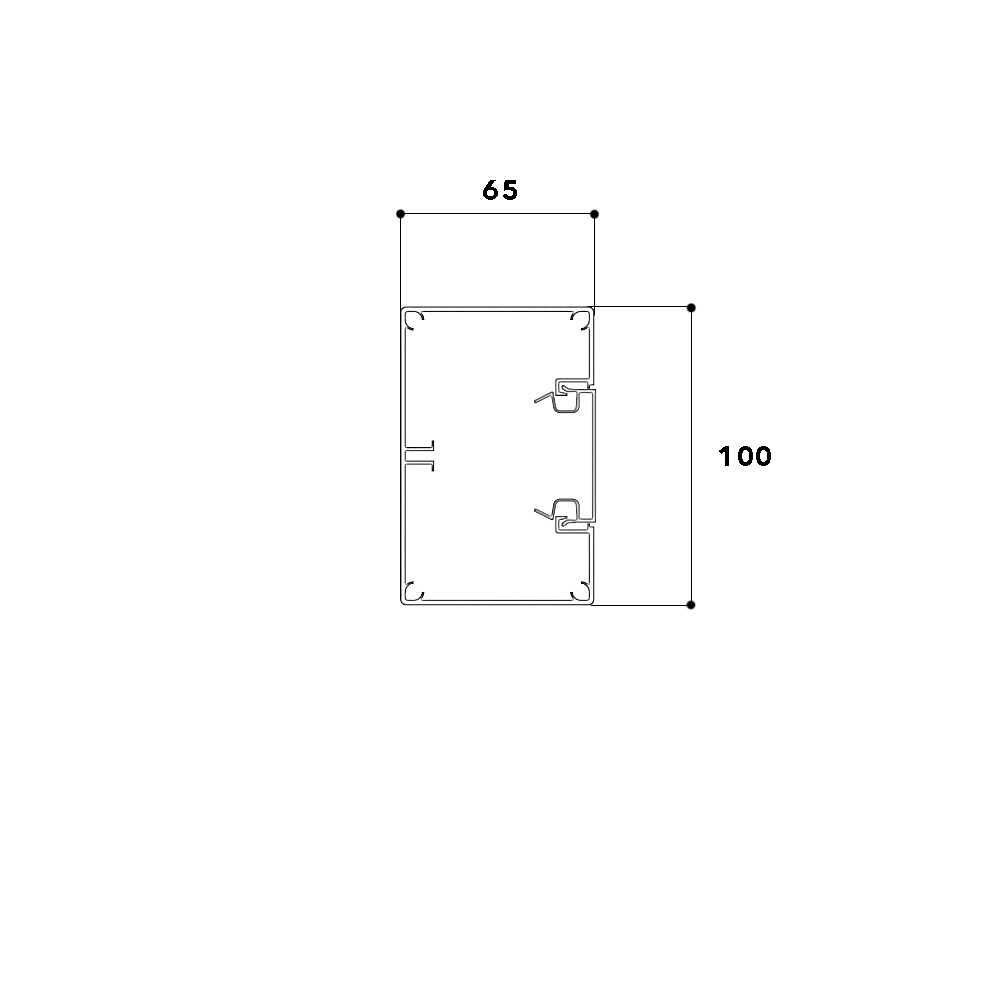

| Width | 100 mm |
| Depth | 65 mm |
| Length | 2000 mm |
| Number of covers | 1 |
| Covers supplied with the product | yes |
| Cover width 1 | 45 mm |
| Symmetric | yes |
| Construction type rectangular | yes |
| Material | plastic |
| Material quality | Polyvinyl chloride (PVC) |
| Halogen free | no |
| Anti-bacterial treatment | no |
| Surface protection | untreated |
| Colour | white |
| RAL-number | 9010 |
| Construction rear wall (inner side) | Continuous DIN-rail |
| With protective foil | yes |
| Number of plug-in partitions | 1 |
| With duct connector | no |
| Mounting perforation in bottom | yes |
| Mounting method cover | Inner lying |
| With cable fixing clip | no |
| Useful cross section | 5220 mm² |
| Degree of protection (IP) | IP30 |
| Impact strength | IK08 |
| Operating temperature | from -5 to 60 °C |
