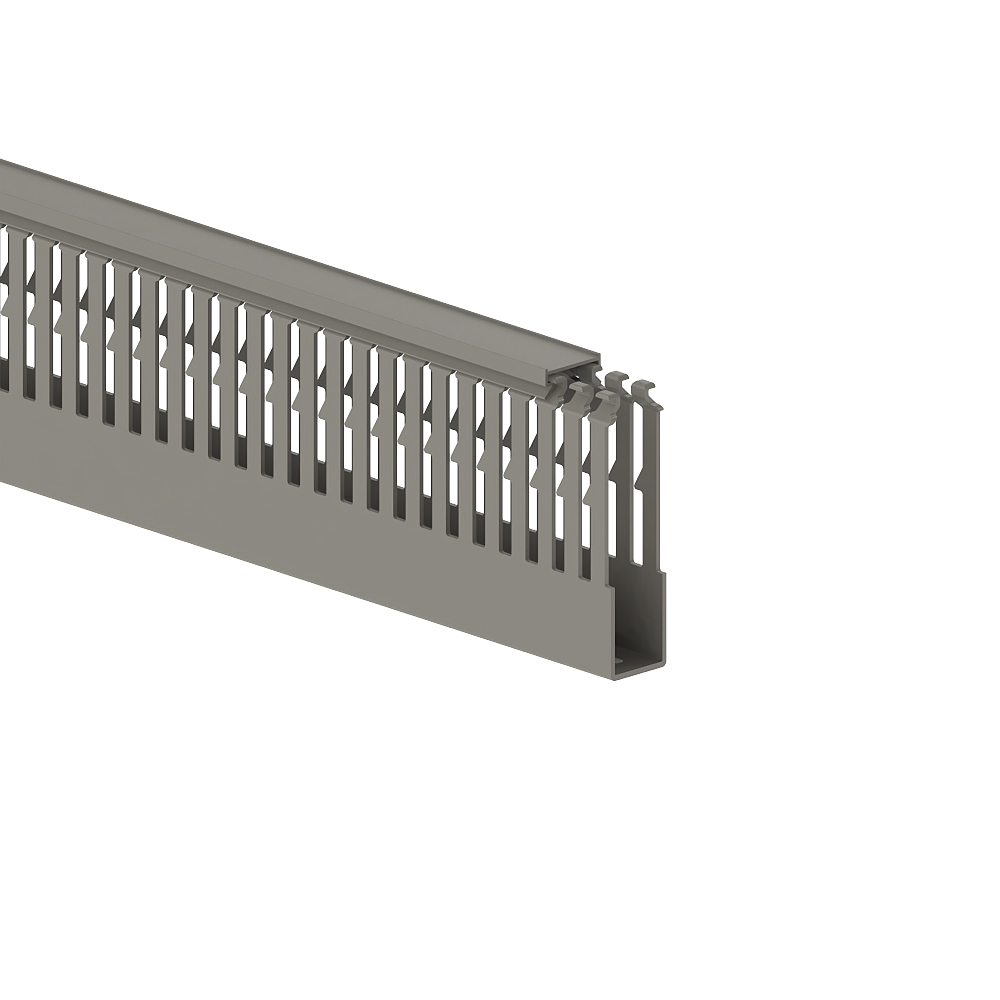

Slotted trunking VK 100x25-7030, PVC, base and cover, grey

Manufacturer GGK
Item number 1697
List price excl. VAT 21,78 EUR / meter
Product group 60-Slotted trunking
Packing unit 48 meters
EAN code 4018475016972
Tariff number 39259020
Product status
Core range

Slotted cable trunking made of PVC according to DIN EN 50085-2-3 for installation in switch cabinets, base with slotted side walls and with single-row base perforation according to DIN EN 50085-2-3, overlapping cover with a continuous labelling edge. The side bars can be broken out without tools, with the aid of notching pliers the side bars can be broken out down to the base. The wiring duct is VDE-tested and CSA-certified.

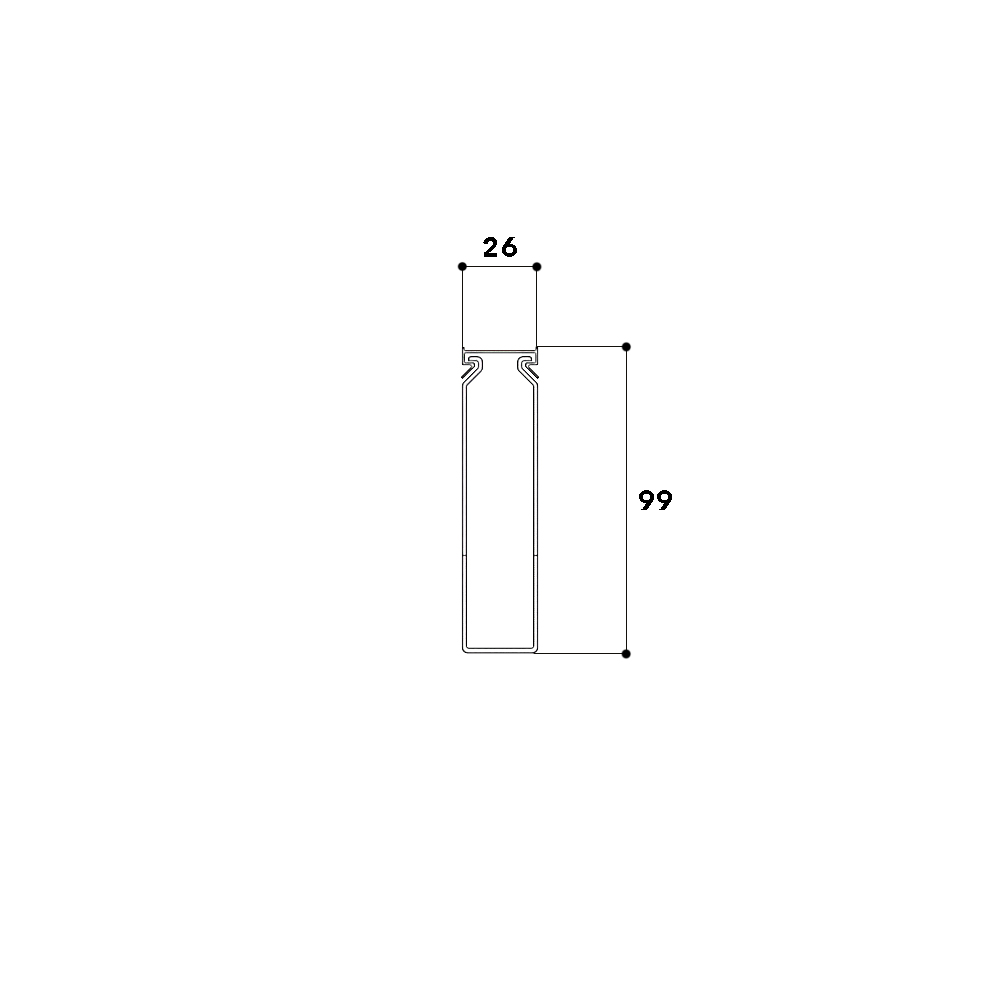

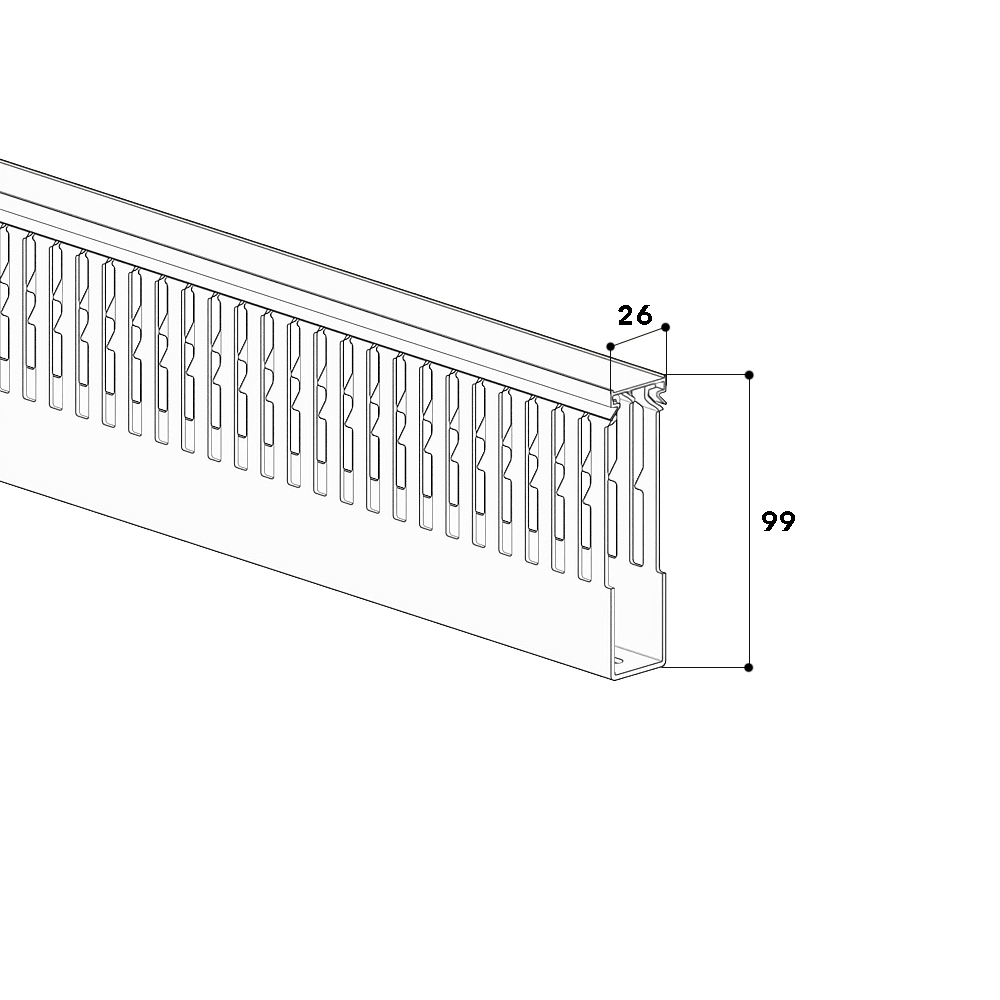

Height 100 mm
Width 25 mm
Length 2000 mm

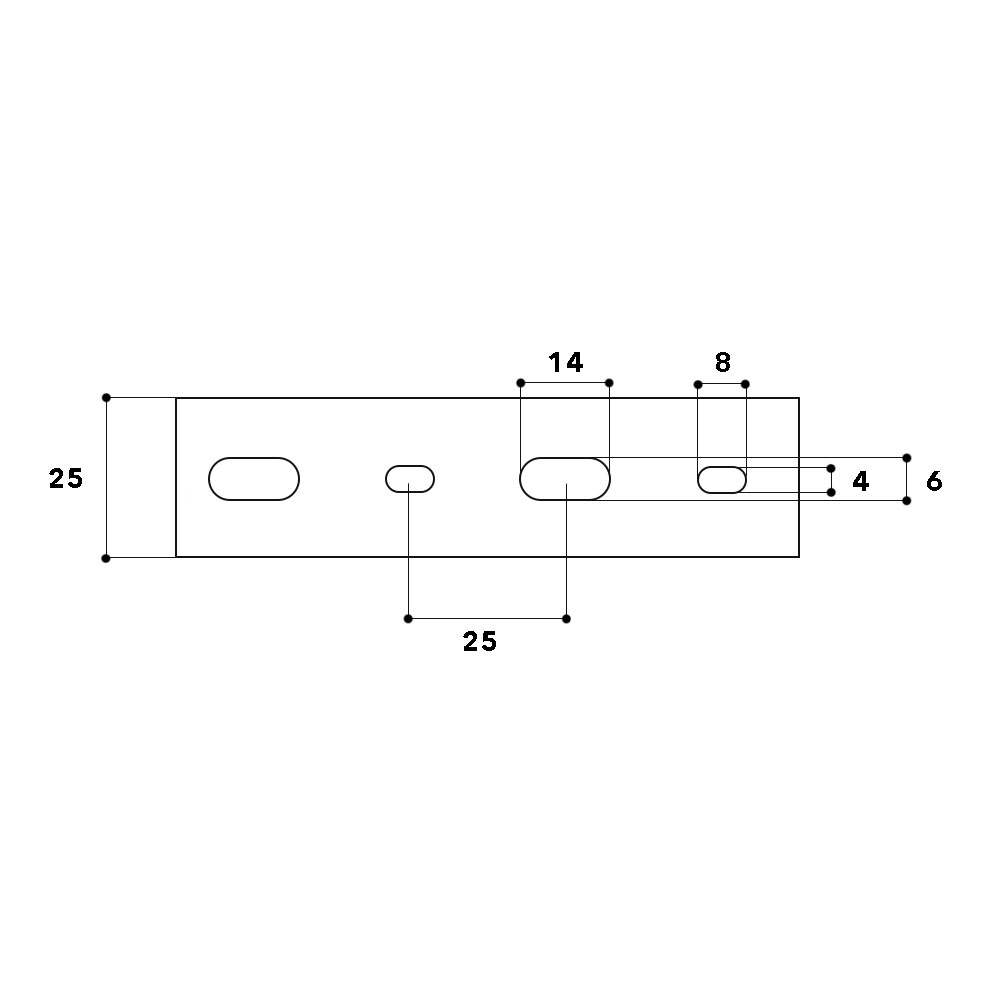

Distance of slots 14 mm
Slit width 5 mm
Type of side wall slotted
Halogen free no
Flexible no
Useful cross section 9267 mm²
Type of fastening base perforation
With cover yes
Colour grey
