Slotted trunking VK 100x100-7030, PVC, base and cover, grey

Manufacturer GGK
Item number 1699
List price excl. VAT 35,52 EUR / meter
Product group 60-Slotted trunking
Packing unit 8 meters
EAN code 4018475016996
Tariff number 39259020
Product status
Core range

Slotted cable trunking made of PVC according to DIN EN 50085-2-3 for installation in switch cabinets, base with slotted side walls and with double-row base perforation according to DIN EN 50085-2-3, overlapping cover with a continuous labelling edge. The side bars can be broken out without tools, with the aid of notching pliers the side bars can be broken out down to the base. The wiring duct is VDE-tested and CSA-certified.

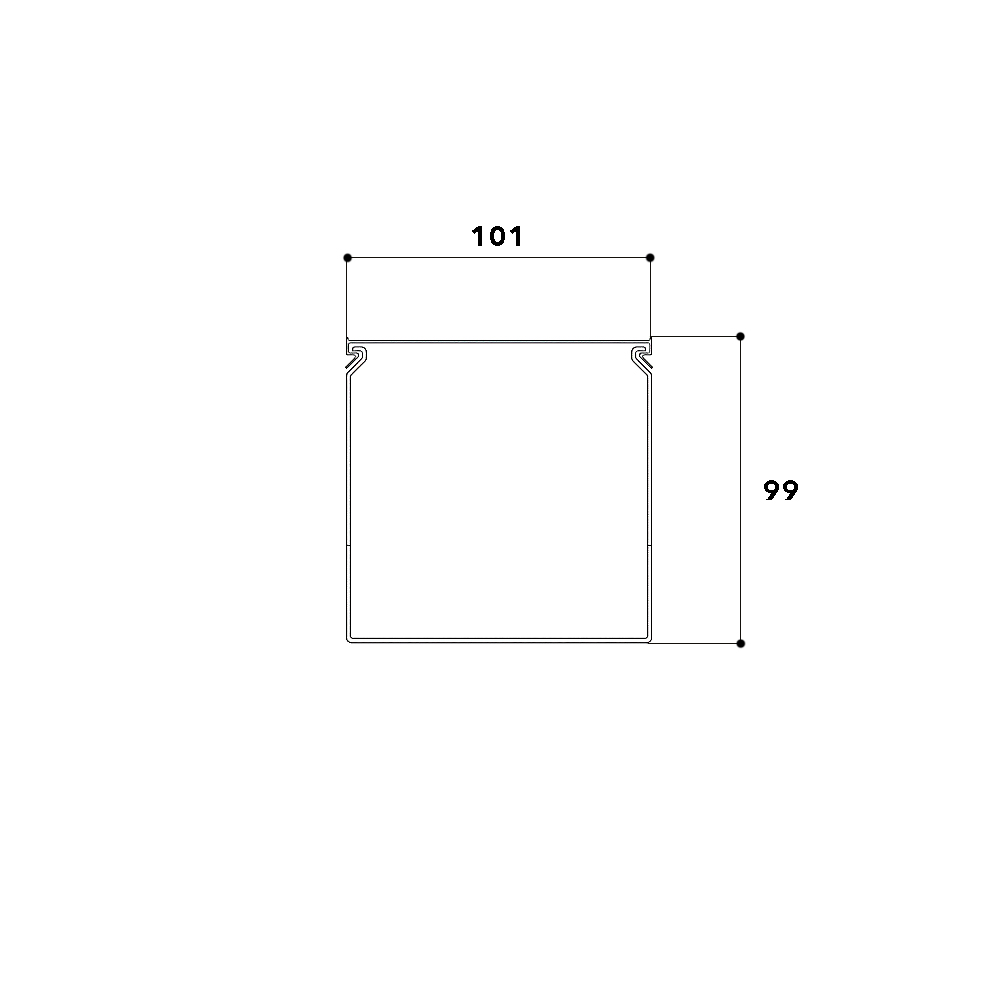

Height 100 mm
Width 100 mm
Length 2000 mm

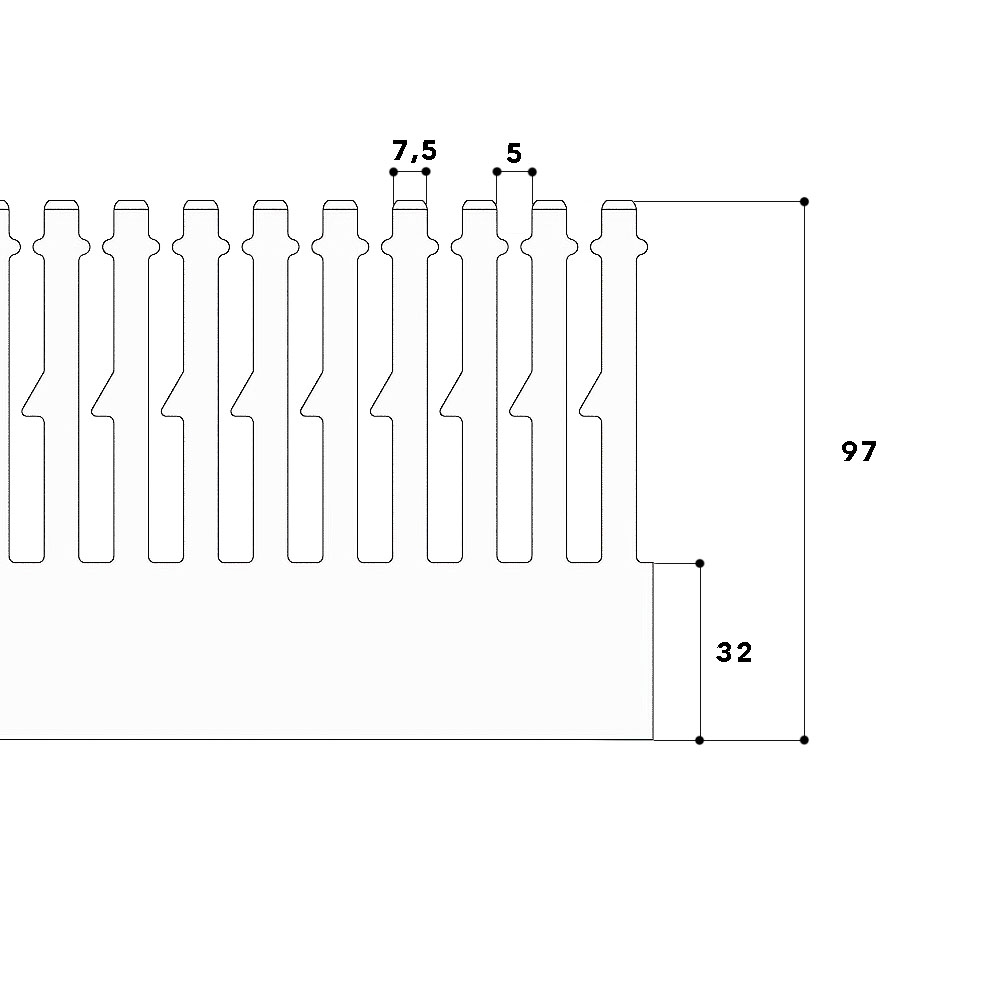

Distance of slots 14 mm
Slit width 5 mm
Type of side wall slotted
Halogen free no
Flexible no
Useful cross section 9025 mm²
Type of fastening base perforation
With cover yes
Colour grey
