Mounting kit CEE socket outlet, flange dimension 75x75mm, suitable for GED 50-1, GDX/P-1, white
| Manufacturer | GGK |
| Item number | 1263 |
| List price excl. VAT | 8,99 EUR / piece |
| Product group | 20-Wall installation |
| Packing unit | 1 piece |
| EAN code | 4018475012639 |
| Tariff number | 39269097 |
| Product status |
Core range
|

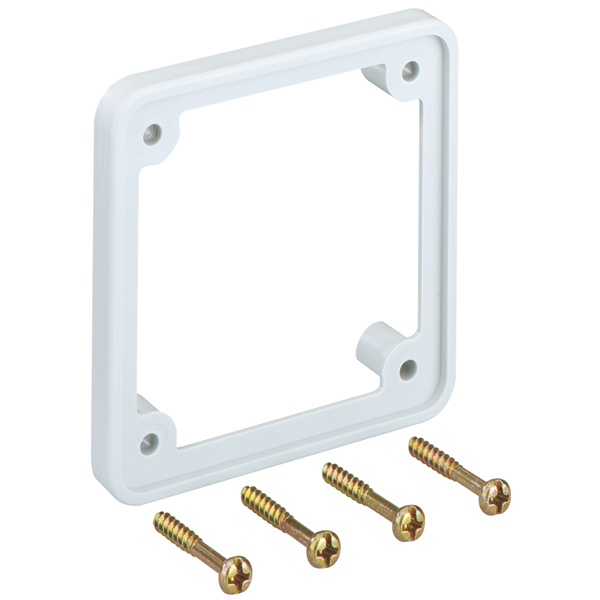

Installation kit for CEE devices 16A (straight version) with flange dimensions 75 x 75 mm, spacing of fixing holes 60 mm, including 4 fixing screws, suitable for 1-fold device installation boxes (item no. 1261 for floor mounting, item no. 3677 for front mounting). Note: Due to the large number of devices available on the market, the dimensions should be checked beforehand.
| Number of units | 1 |
| Mounting method box | rear panel |
| Model | open |
| Mounting track | 83.5 mm |
| Mounting method installation unit | crew |
| Strain relief possibility | yes |
| With connection space | no |
| Material | plastic |
| Halogen free | no |
| Type of device | CEE for industrial purposes (IEC 60309) |
