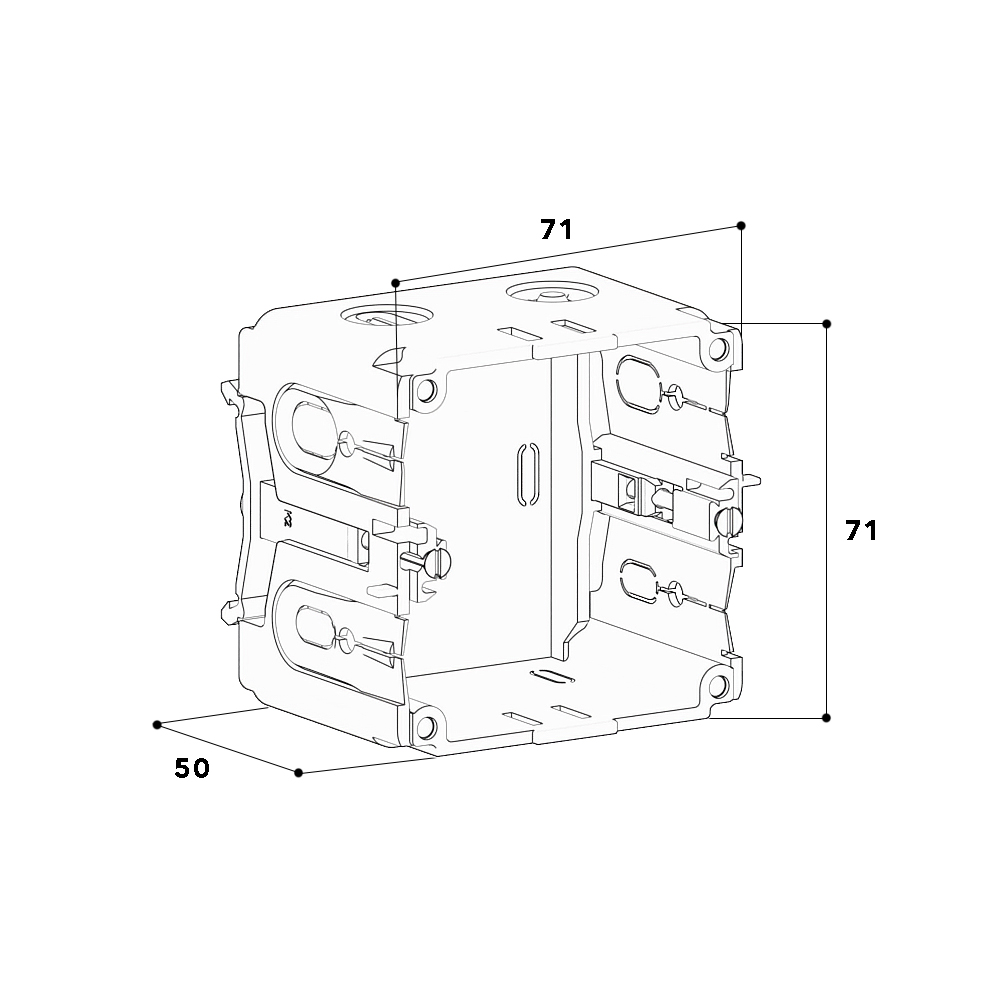

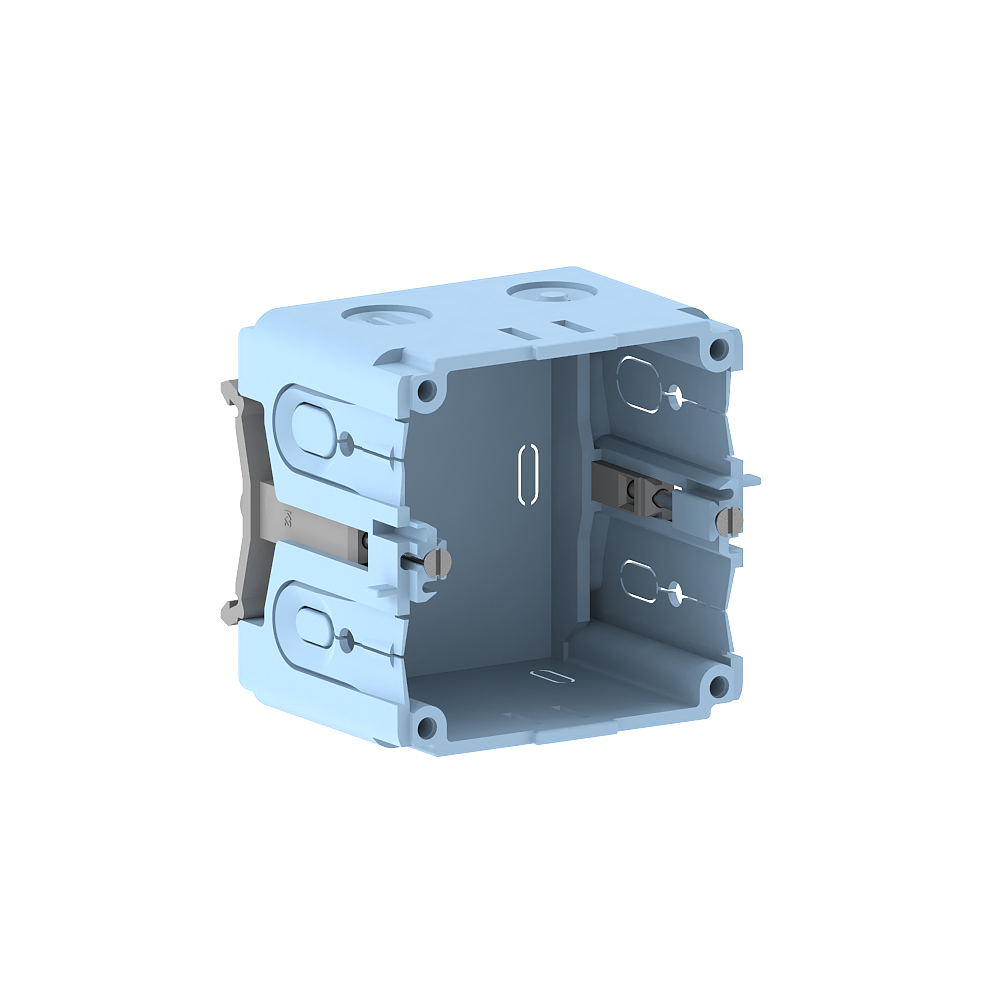

Junction box for wall duct single GED 50-1 for BR/BRA/FB height 60mm with DIN-rail
| Manufacturer | GGK |
| Item number | 1261 |
| List price excl. VAT | 6,36 EUR / piece |
| Product group | 20-Wall installation |
| Packing unit | 40 pieces |
| EAN code | 4018475012615 |
| Tariff number | 39269097 |
| Product status |
Core range
|
Halogen-free flush-mounting box for accommodating a commercially available device unit from the standard switch range, with strain-relief feed openings for cable diameters of 7-11mm and 11-13mm, for installation in wall trunking and installation trunking with a DIN rail and a height of 60 mm.
| Number of units | 1 |
| Mounting method box | rear panel |
| Model | open |
| Type of device | other |
| Mounting track | 83.5 mm |
| Mounting method installation unit | crew |
| Strain relief possibility | yes |
| With connection space | no |
| Material | plastic |
| Halogen free | no |
