Wall trunking BR 60x110/80-7035, PVC, base and cover, 80 mm cover, light grey
| Manufacturer | GGK |
| Item number | 12801 |
| List price excl. VAT | 35,69 EUR / meter |
| Product group | 20-Wall installation |
| Packing unit | 8 meters |
| EAN code | 4018475270305 |
| Tariff number | 39259020 |
| Product status |
Core range
|
Wall duct made of PVC to DIN EN 50085-2-1 for cable laying directly on the wall or on wall brackets, 80 mm cover for device installation of commercially available switch ranges in combination with accessory mounting boxes or M45 built-in devices with the aid of front-locking adapter frames, base with double-row base perforation for fastening and a DIN rail for snap-in mounting of a plastic partition for separating cables. Couplings as mounting aids and for easy connection of two lower sections are additionally available as accessories. Note: Sound and fire protection measures must be carried out professionally.

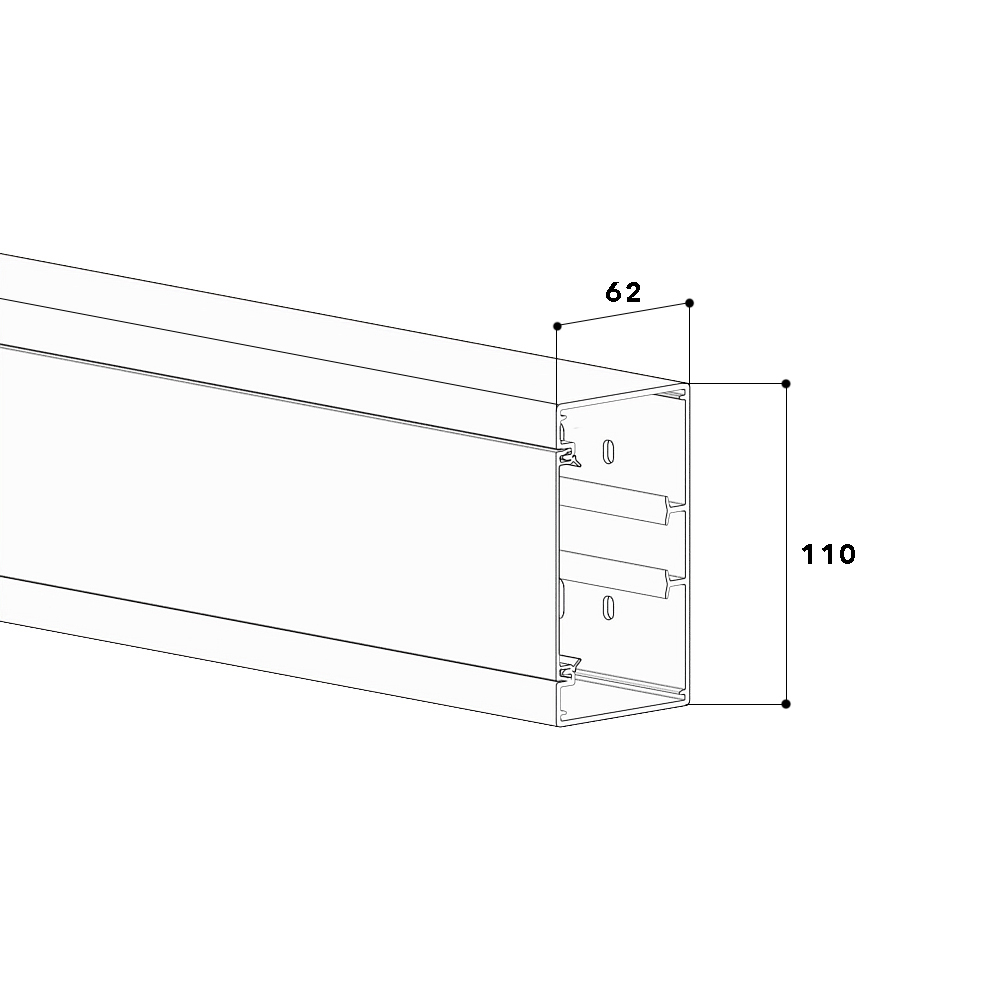

| Width | 110 mm |
| Depth | 62 mm |
| Length | 2000 mm |
| Number of covers | 1 |
| Covers supplied with the product | yes |
| Cover width 1 | 80 mm |
| Symmetric | yes |
| Construction type rectangular | yes |
| Material | plastic |
| Halogen free | no |
| Colour | light grey |
| RAL-number | 7035 |
| Construction rear wall (inner side) | continuous DIN-rail |
| With protective foil | yes |
| Number of plug-in partitions | 1 |
| Mounting perforation in bottom | yes |
| Mounting method cover | inner lying |
| Useful cross section | 5520 mm² |
