Wall trunking-base MBRA 60x90, aluminium, 45 mm cover, anodised

Manufacturer GGK
Item number 5445
List price excl. VAT on request
Product group 20-Wall installation
Packing unit 6 meters
EAN code 4018475243071
Tariff number 76109090
Product status
Core range

Base of wall duct made of aluminium to DIN EN 50085-2-1 for cable routing directly on the wall or on wall brackets, 45 mm cover for device installation of compact M45 built-in devices in 45x45 mm format, base with double-row base perforation for fastening, a mounting rail for snap-in mounting of a partition wall for separating cables and earthing grooves for equipotential bonding by means of earthing cable. Connecting pins as mounting aids and for easy connection of two base units are additionally available as accessories. Note: Potential equalisation, earthing, sound and fire protection measures must be carried out professionally.

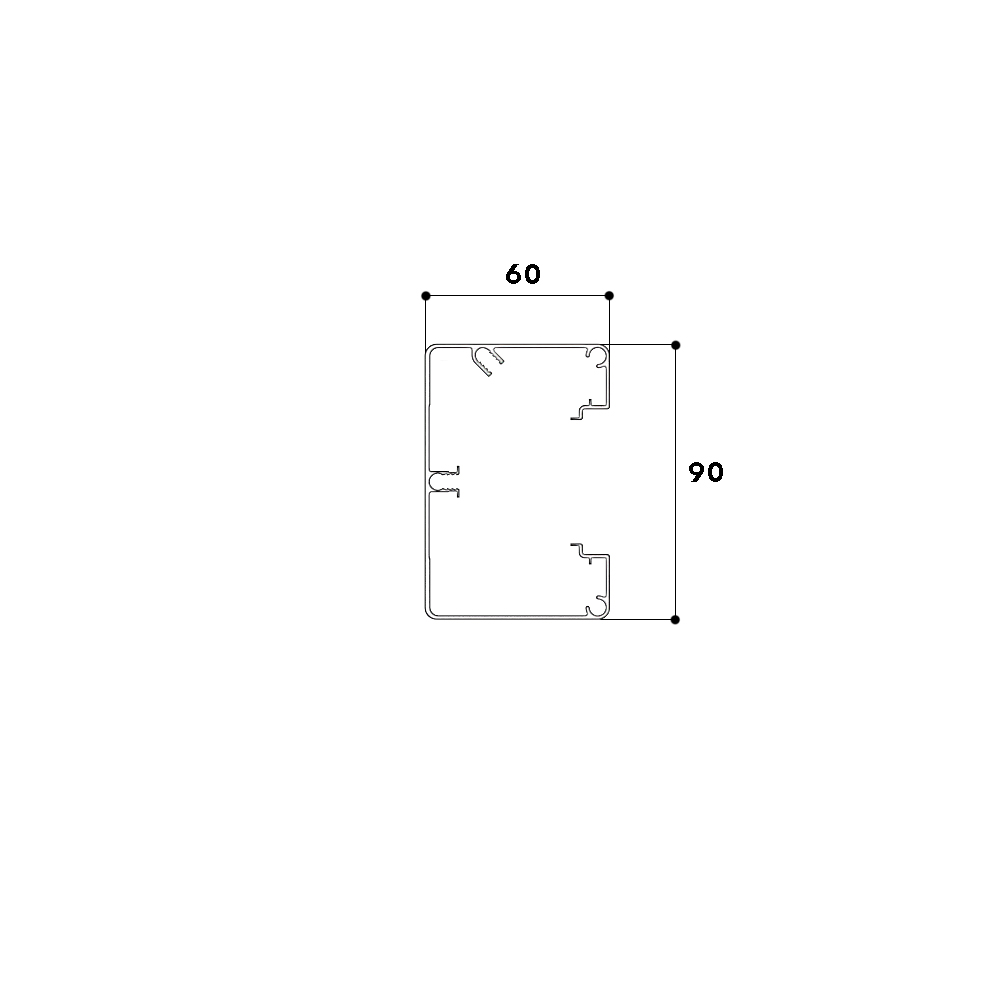

Width 90 mm
Depth 60 mm
Length 2000 mm
Number of covers 1
Covers supplied with the product no
Cover width 1 45 mm
Symmetric yes
Construction type rectangular yes
Material aluminium
Halogen free yes
Surface protection anodised
Colour silver
Construction rear wall (inner side) continuous DIN-rail
With protective foil no
Number of plug-in partitions 1
Mounting perforation in bottom yes
Mounting method cover inner lying
Useful cross section 4900 mm²
