Wall trunking-base BRS 60x170, steel, 80 mm cover, zinc

Manufacturer GGK
Item number 11750
List price excl. VAT 46,73 EUR / meter
Product group 20-Wall installation
Packing unit 4 meters
EAN code 4018475268463
Tariff number 73089059
Product status
Core range

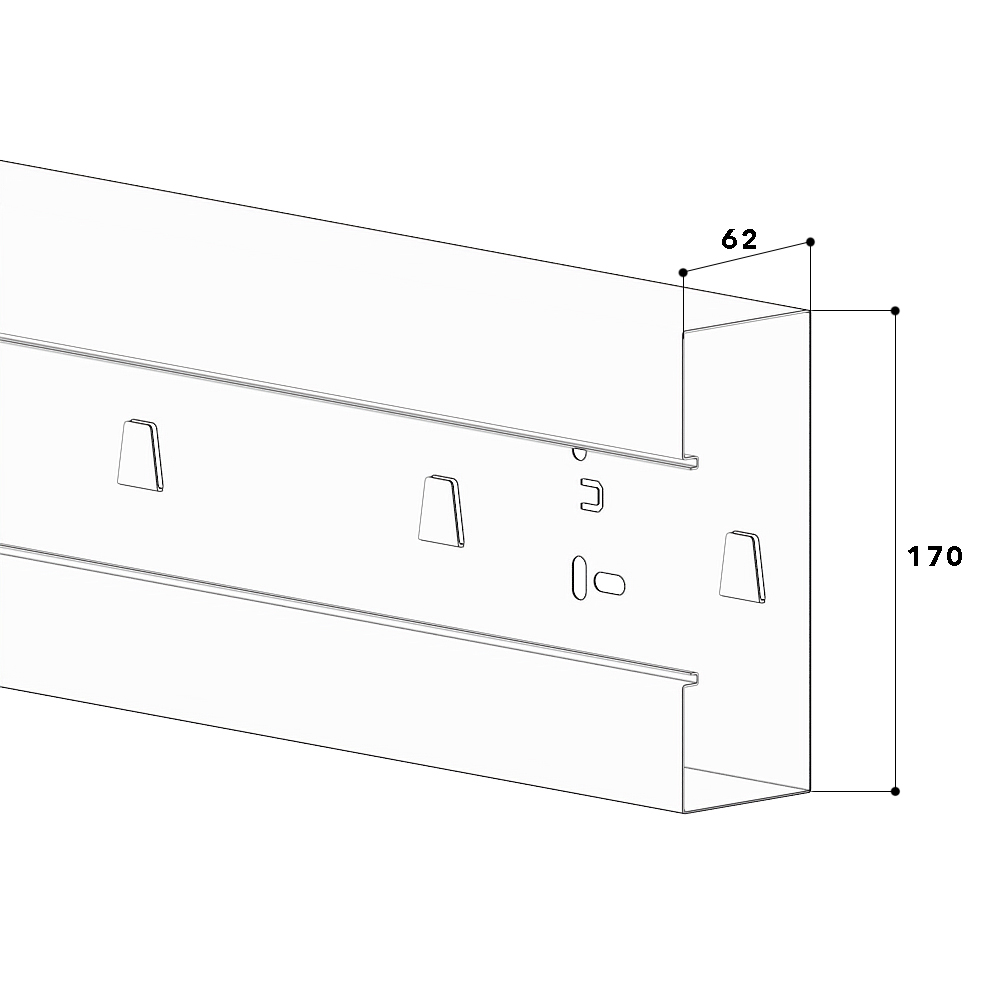

Base of wall duct made of sheet steel to DIN EN 50085-2-1 for cable routing directly on the wall or on wall brackets, for an 80 mm cover for device installation of commercially available switch ranges in combination with front-locking accessory mounting boxes or M45 built-in devices with the aid of front-locking adapter frames, base part with double-row floor perforation for fastening, a retaining lug for hanging a partition wall for separating cables and earthing lugs for additional equipotential bonding by means of earthing cable. Note: Potential equalisation, earthing, sound and fire protection measures must be carried out professionally. Bottom and cover with self-grounding contact surfaces.

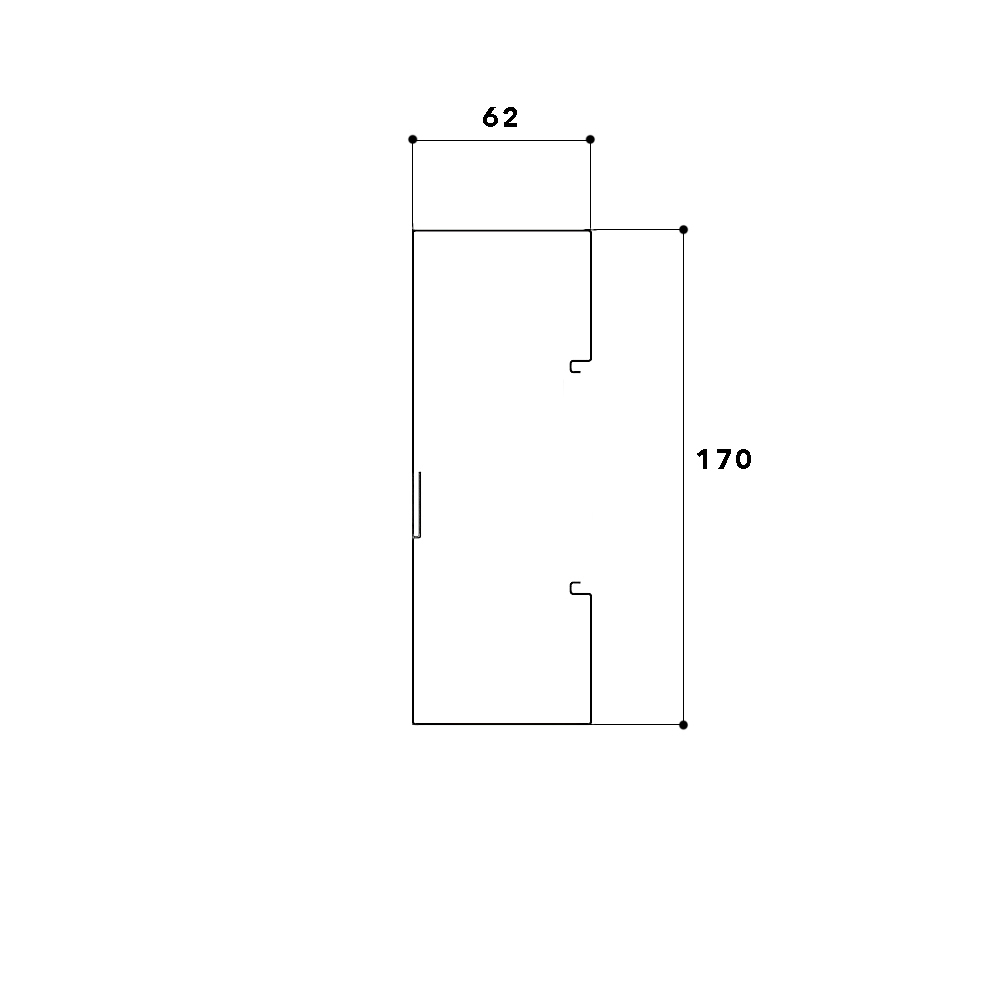

Width 170 mm
Depth 62 mm
Length 2000 mm
Number of covers 1
Covers supplied with the product no
Cover width 1 80 mm
Symmetric yes
Construction type rectangular yes
Material steel
Halogen free yes
Surface protection pre-galvanised
Colour other
Construction rear wall (inner side) with cam clamps
With protective foil no
Number of plug-in partitions 1
Mounting perforation in bottom yes
Mounting method cover inner lying
Useful cross section 10138 mm²
