Wall trunking-base BRS 120x120, steel, 80 mm cover, zinc
| Manufacturer | GGK |
| Item number | 24005 |
| List price excl. VAT | 59,34 EUR / meter |
| Product group | 20-Wall installation |
| Packing unit | 4 meters |
| EAN code | 4018475276505 |
| Tariff number | 73089059 |
| Product status |
Core range
|
Base of wall duct made of sheet steel to DIN EN 50085-2-1 for cable routing directly on the wall or on wall brackets, for an 80 mm cover for device installation of commercially available switch ranges in combination with front-locking accessory mounting boxes or M45 built-in devices with the aid of front-locking adapter frames, base part with double-row floor perforation for fastening, a retaining lug for hanging a partition wall for separating cables and earthing lugs for additional equipotential bonding by means of earthing cable. Note: Potential equalisation, earthing, sound and fire protection measures must be carried out professionally. Bottom and cover with self-grounding contact surfaces.

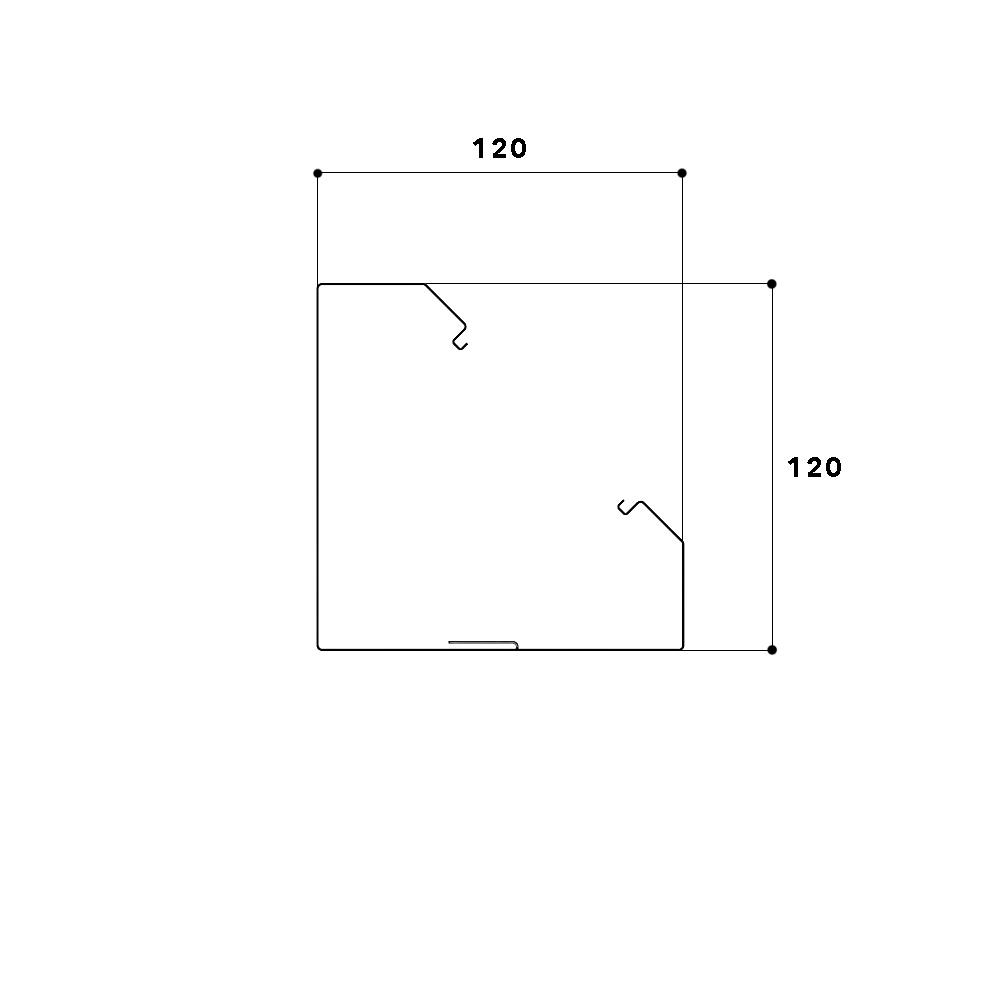

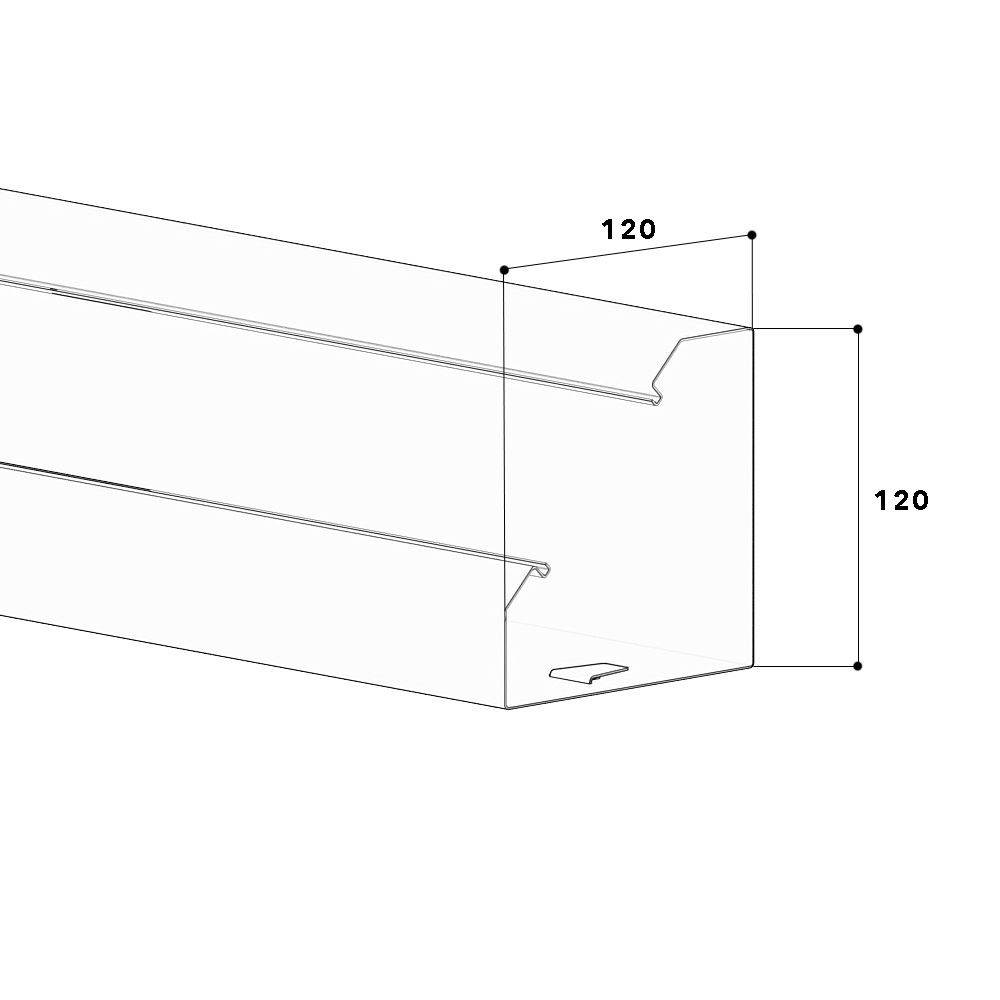

| Width | 120 mm |
| Depth | 120 mm |
| Length | 2000 mm |
| Number of covers | 1 |
| Covers supplied with the product | no |
| Cover width 1 | 80 mm |
| Symmetric | yes |
| Construction type rectangular | no |
| Material | Steel |
| Material quality | other |
| Halogen free | yes |
| Anti-bacterial treatment | no |
| Surface protection | continuously galvanised |
| Colour | zinc |
| Construction rear wall (inner side) | With cam clamps |
| With protective foil | no |
| Number of plug-in partitions | 1 |
| With duct connector | no |
| Mounting perforation in bottom | yes |
| Mounting method cover | Inner lying |
| With cable fixing clip | no |
| Useful cross section | 10458 mm² |
| Degree of protection (IP) | IP30 |
| Impact strength | IK10 |
| Operating temperature | from -5 to 60 °C |
