TV cable cover ABK 12x50-9010, PVC, adhesive, 2 chambers, pure white
| Manufacturer | GGK |
| Item number | 16649 |
| List price excl. VAT | 14,9 EUR / piece |
| Product group | 70-Residential installation |
| Packing unit | 36 pieces |
| EAN code | 4018475316300 |
| Tariff number | 39259020 |
| Product status |
Core range
|

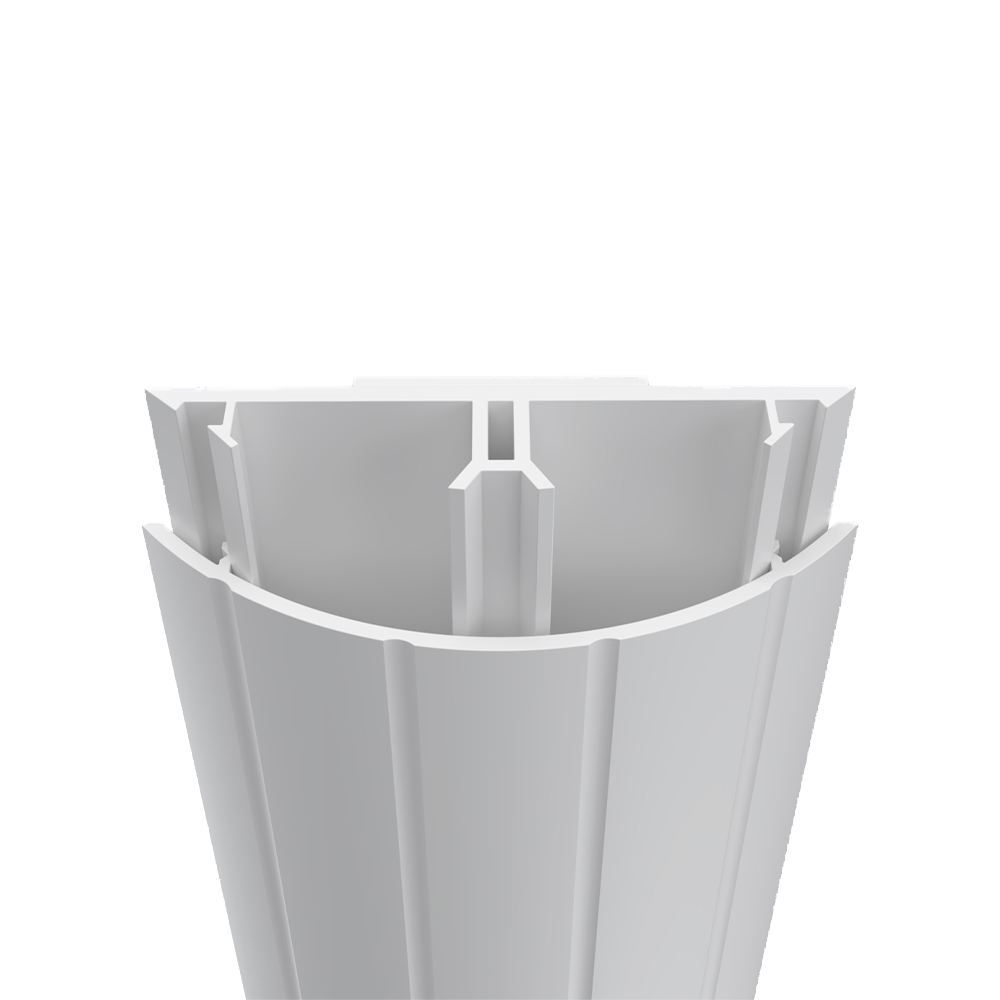

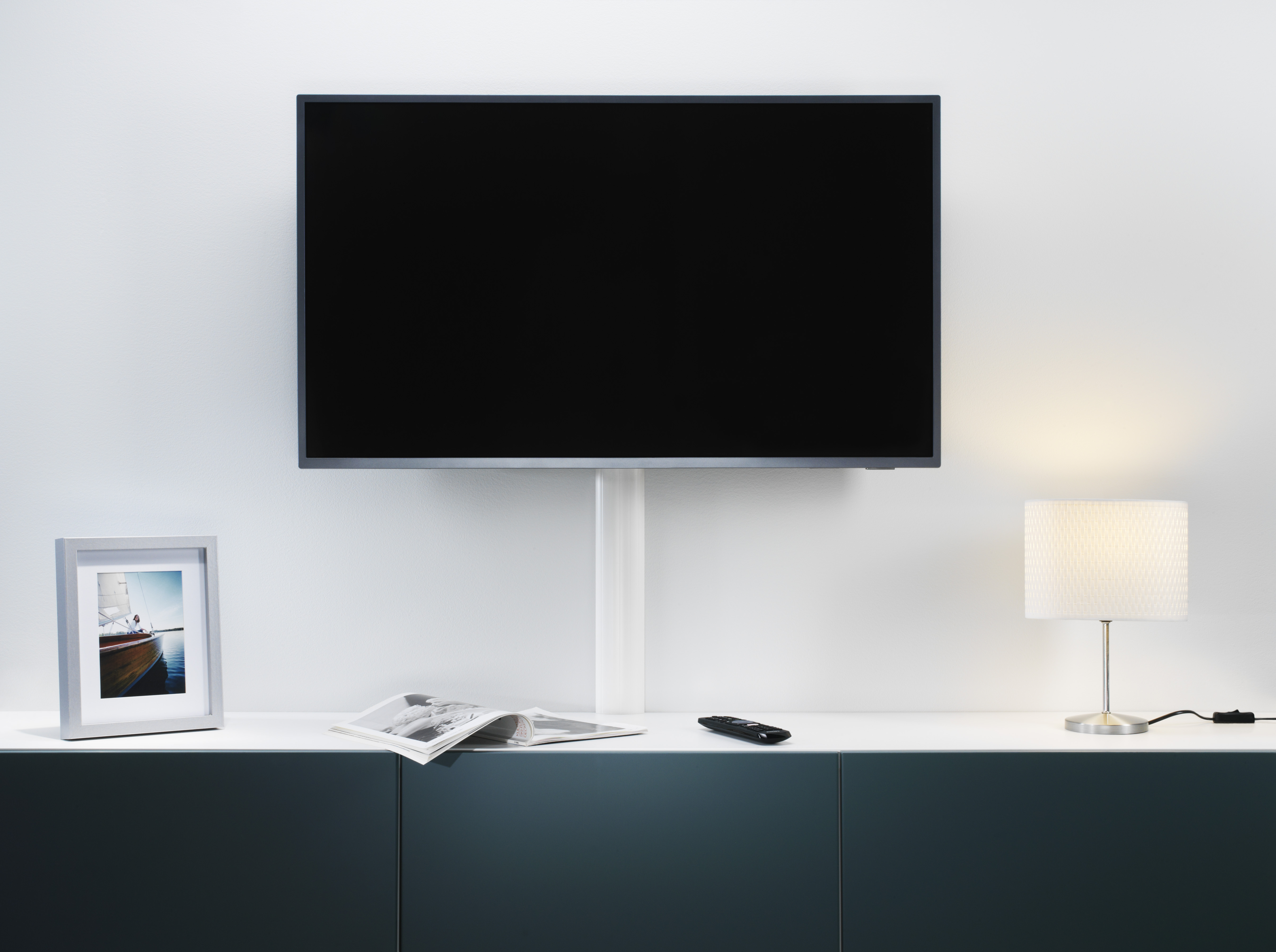

Semi-circular cable cover to accommodate and conceal cables below the flat screen. Profile with two separate chambers for neat cable routing, suitable for 2 to 3 cables (Ø = 8 mm). A double-sided adhesive tape is enclosed with the TV cable cover as an installation aid - additional screwing is recommended for permanent installation. Note: The colour of the bases may vary due to production.
| Width | 50 mm |
| Height | 12 mm |
| Number of channels | 2 |
| Length | 1000 mm |
| Material | plastic |
| Halogen free | no |
| Anti-bacterial treatment | no |
| Colour | white |
| RAL-number | 9010 |
| Self-adhesive | no |
| Sealing lip | no |
| With anti-slip layer | no |
| Max. load capacity | 0.077 t |
| Degree of protection (IP) | IP30 |
| Impact strength | IK08 |
| With cover cap | no |
| Material quality | Polyvinyl chloride (PVC) |
| Permitted cable diameter | from 6 to 8 mm |
| Mounting perforation in bottom | no |
| Slotted hole | no |
| With fixation | no |
| Demountable | yes |
| Reflective | no |
| Fuel- and oil resistant | yes |
| Resistance to vertical load applied in a small surface according IEC 61084-2-2 | 750 |
| Resistance to vertical load applied in a large surface according IEC 61084-2-2 | 750 |
| Suitable for car | no |
| Suitable for truck | no |
| Bending strength | Rigid |
Please visit our Downloads section.
