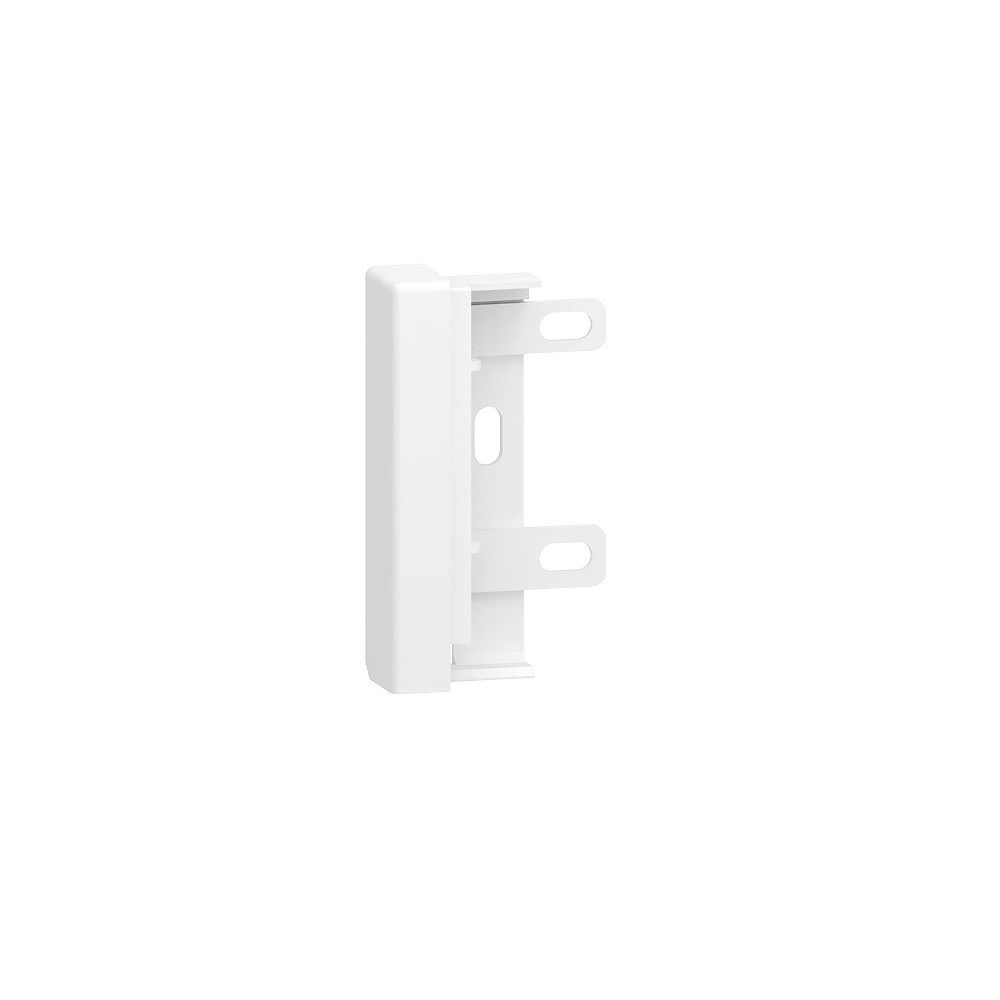

T-piece LFG 15x15 for 4D 20x80-9010, plastic hf, white
Manufacturer | GGK |
Item number | 114118 |
List price excl. VAT | 4,25 EUR / piece |
Product group | 75-4D |
Packing unit | 1 piece |
EAN code | 4018475342422 |
Tariff number | 39259020 |
Product status |
Core range
|
T-piece from the 4D E skirting trunking to the LFG 15x15 installation trunking, enables vertical cable routing on the wall surface as an overlapping moulded hood.
Height baseboard duct | 80 mm |
Depth plinth skirting duct | 20 mm |
Height duct connection | 15 mm |
Width duct connection | 15 mm |
Duct connection | installation trunking |
Branch off duct connection | central |
Material | plastic |
Halogen free | yes |
Colour cover | pure white |
RAL-number | 9010 |
With carpet border | no |
