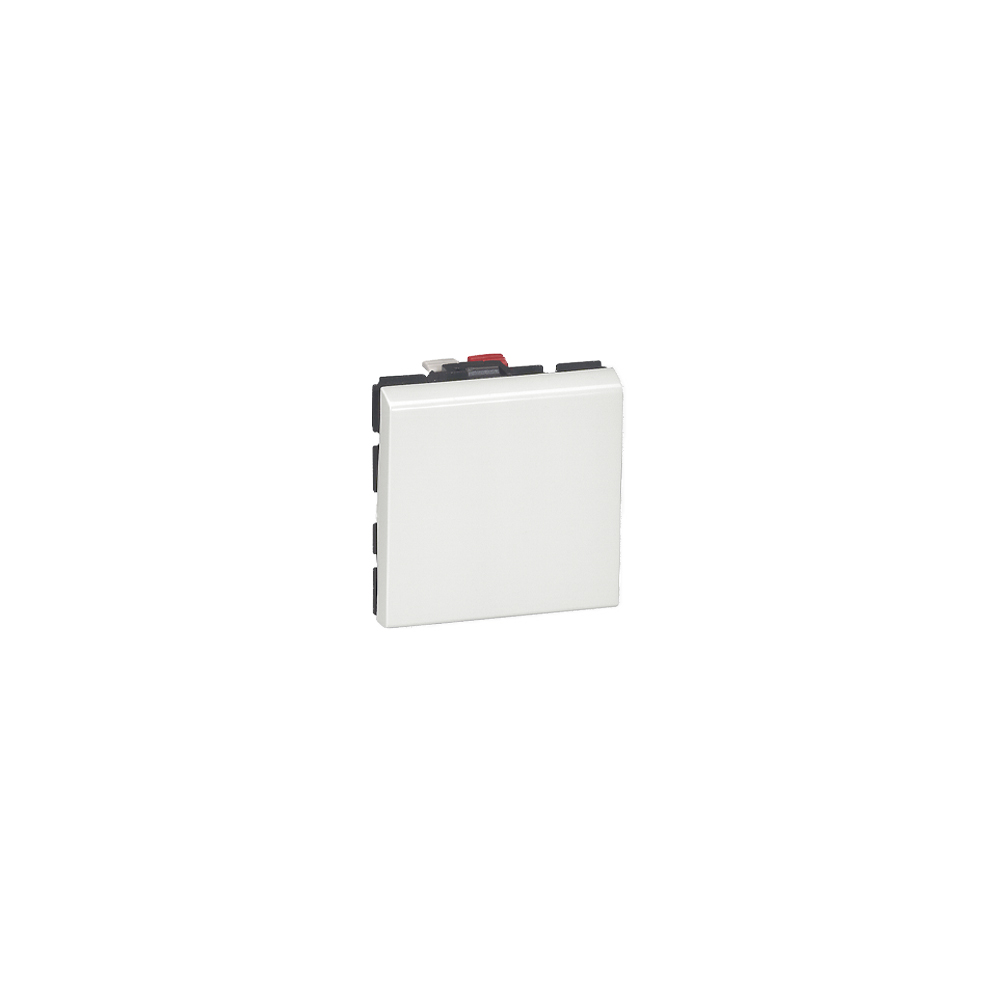

Switch M45-WS-9010, 45x45mm, with screwless connections, white
| Manufacturer | GGK |
| Item number | 6769 |
| List price excl. VAT | 16,99 EUR / piece |
| Product group | 40-Installation devices |
| Packing unit | 1 piece |
| EAN code | 4018475265493 |
| Tariff number | 85365080 |
| Product status |
Core range
|
Switch, 10A/250V~, including rockers, for installation in wall trunking with 45 mm top section and all installation frames/device supports to accommodate compact M45 built-in devices, for horizontal device installation.
| Assembly arrangement | other |
| Model | 1-pole switch |
| Number of poles | 1 |
| Method of operation | front |
| Mounting method | wall duct |
| Material | plastic |
| Material quality | other |
| Halogen free | no |
| Surface protection | untreated |
| Surface finishing | Glossy |
| Type of fastening | Clamp mounting |
| Colour | white |
| RAL-number (similar) | 9003 |
| Transparent | no |
| Label space/information surface | no |
| Suitable for degree of protection (IP) | other |
| Rated current | 10 A |
| Nominal voltage | 250 V |
| Width of device | 45 mm |
| Number of buttons | 1 |
| Height of device | 45 mm |
| Number of modules (module system) | 9010 |
| Depth of device | 40 mm |
| Built-in width | 45 mm |
| Built-in height | 45 mm |
| Built-in depth | 40 mm |
| Min. depth of built-in installation box | 9010 mm |
| Compatible with Apple HomeKit | no |
| Compatible with Google Assistant | no |
| Compatible with Amazon Alexa | no |
| With electrical latch | no |
| With mechanical latch | no |
