Socket triple 0° M45-3G-9006, 45x45mm with enhanced contact protection, alu
| Manufacturer | GGK |
| Item number | 6975 |
| List price excl. VAT | 35,79 EUR / piece |
| Product group | 40-Installation devices |
| Packing unit | 1 piece |
| EAN code | 4018475265394 |
| Tariff number | 85366990 |
| Product status |
Core range
|
Triple built-in socket outlet, 0° straight, cable connection via plug-in terminals, 2-pole, 16 A/250 V~, with connection terminals to VDE 0620, suitable for 3 angled or flat plugs, with increased protection against accidental contact to VDE 0620, for installation in wall trunking with 45 mm top section and all installation frames/device carriers for accommodating compact M45 built-in devices, for horizontal device installation. Note: The strain relief must be ordered separately.
| Model | SCHUKO |
| Number of units | 3 |
| Connection type | push-in clamp |
| With enhanced contact protection | yes |
| Label space/information surface | no |
| Colour | silver |
| RAL-number (similar) | 9006 |
| Mounting method | wall trunking |
| Type of fastening | Snap mounting |
| Material | plastic |
| Surface finishing | matt |
| Nominal current | 16 A |
| Nominal voltage | 250 V |

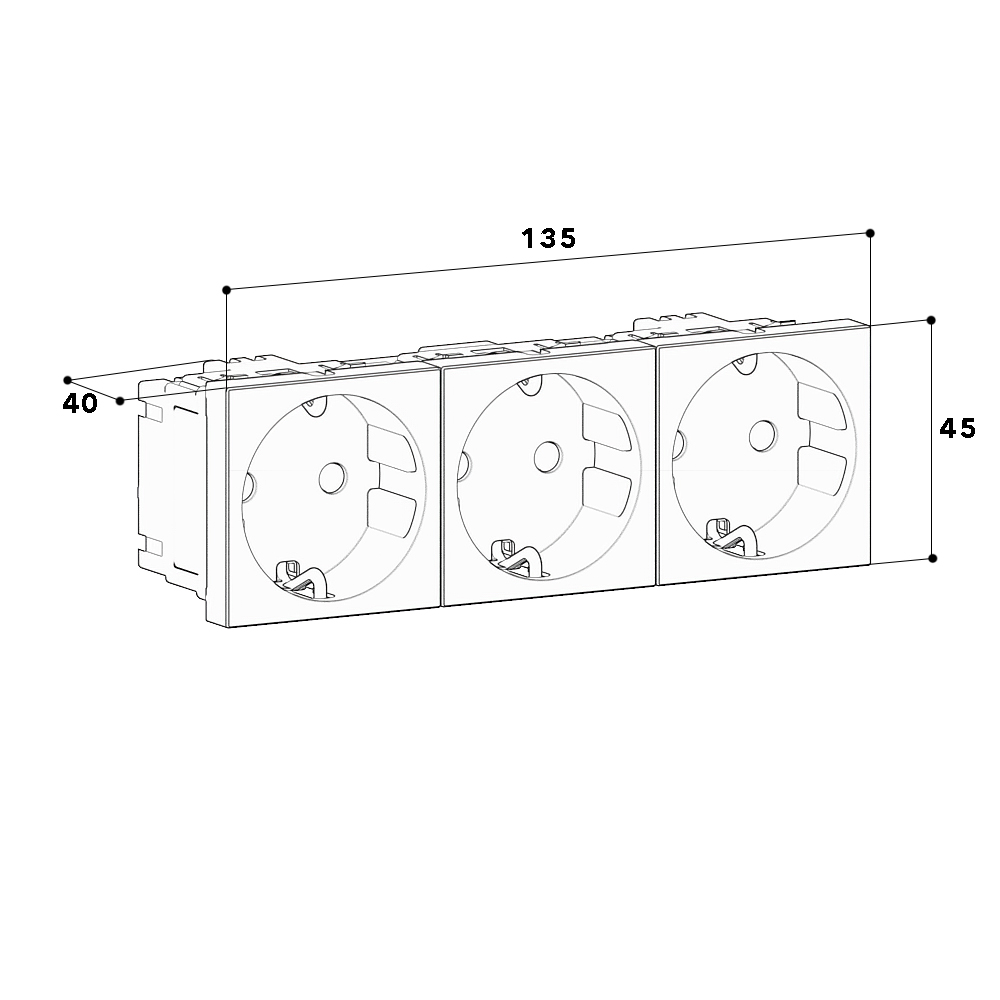

| Width of device | 135 mm |
| Height of device | 45 mm |
| Depth of device | 40 mm |
