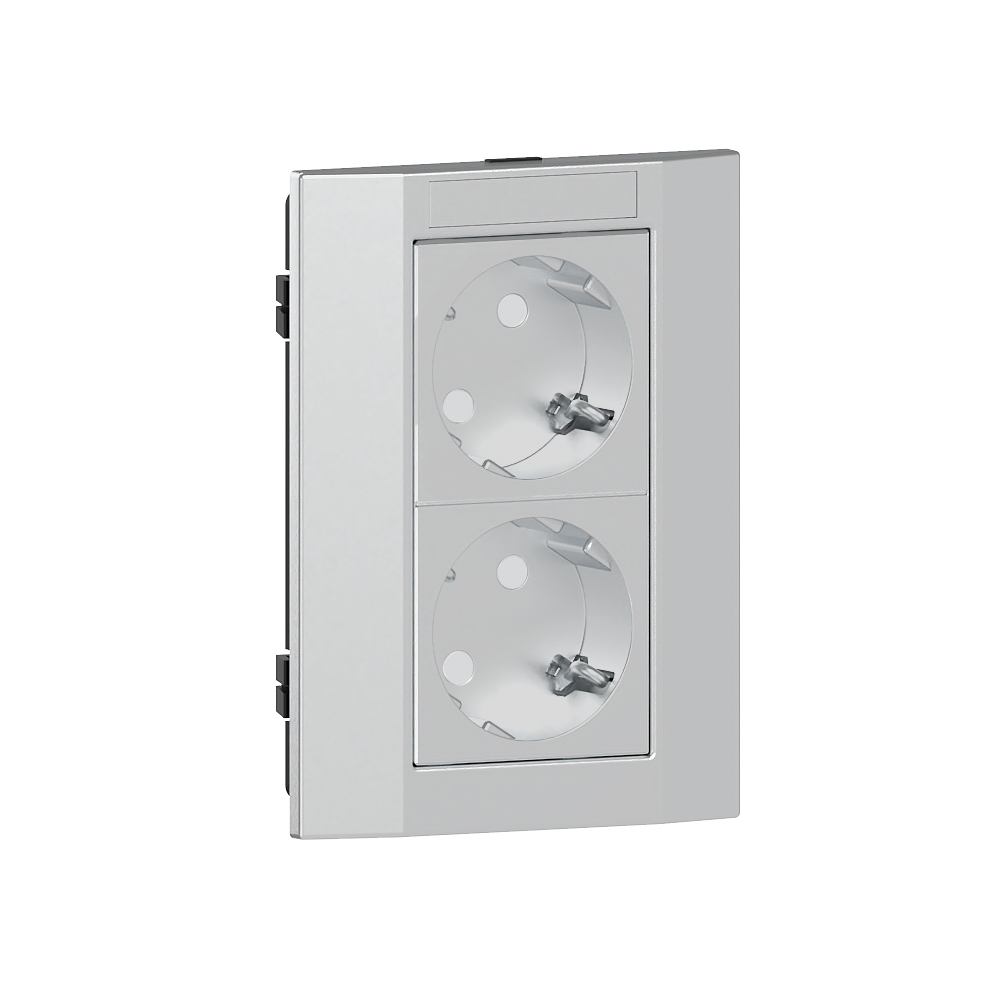

Socket double KSE/AR-2V-9006, adapter frame, Installation column, alu
| Manufacturer | GGK |
| Item number | 4692 |
| List price excl. VAT | 68 EUR / piece |
| Product group | 40-Installation devices |
| Packing unit | 1 piece |
| EAN code | 4018475338227 |
| Tariff number | 85366990 |
| Product status |
Core range
|
Pre-assembled 2-fold socket unit, consisting of mounting support, cover frame with labelling field 8x40mm and a 2-fold M45 socket 45° angled, line connection via plug-in terminals, 2-pole, 16 A/250 V~, with connection terminals according to VDE 0620, suitable for 2 angled or surface plugs, with increased contact protection according to VDE 0620, for installation in wall trunking and service poles with a 76.5 mm wide fixing track, for vertical device installation.
| Model | Earthing pin |
| With signal lamp | no |
| Imprint/indication | other |
| Connection type | push-in clamp |
| With hinged lid | no |
| With enhanced contact protection | yes |
| Label space/information surface | yes |
| Colour | aluminium |
| RAL-number (similar) | 9006 |
| Transparent | no |
| Lockable | no |
| With orientation lighting | no |
| Special power supply | other |
| Mounting method | wall duct |
| Type of fastening | Mounting with screw |
| Material | plastic |
| Material quality | Thermoplastic |
| Halogen free | no |
| Surface protection | untreated |
| Surface finishing | Matt |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
| Suitable for degree of protection (IP) | other |
| Impact strength | other |
| Width of device | 160 mm |
| Height of device | 85 mm |
| Depth of device | 30 mm |
| Compatible with Apple HomeKit | no |
| Compatible with Google Assistant | no |
| Compatible with Amazon Alexa | no |
| Colour of switch operator | aluminium |
| Mounting direction | Vertical |
| Number of ports USB-A | 0 |
| Number of socket outlets | 2 |
| With Wi-Fi signal repeater | no |
| With built-in bluetooth speaker | no |
| Compliant with UK Building Regulations Part M | no |
