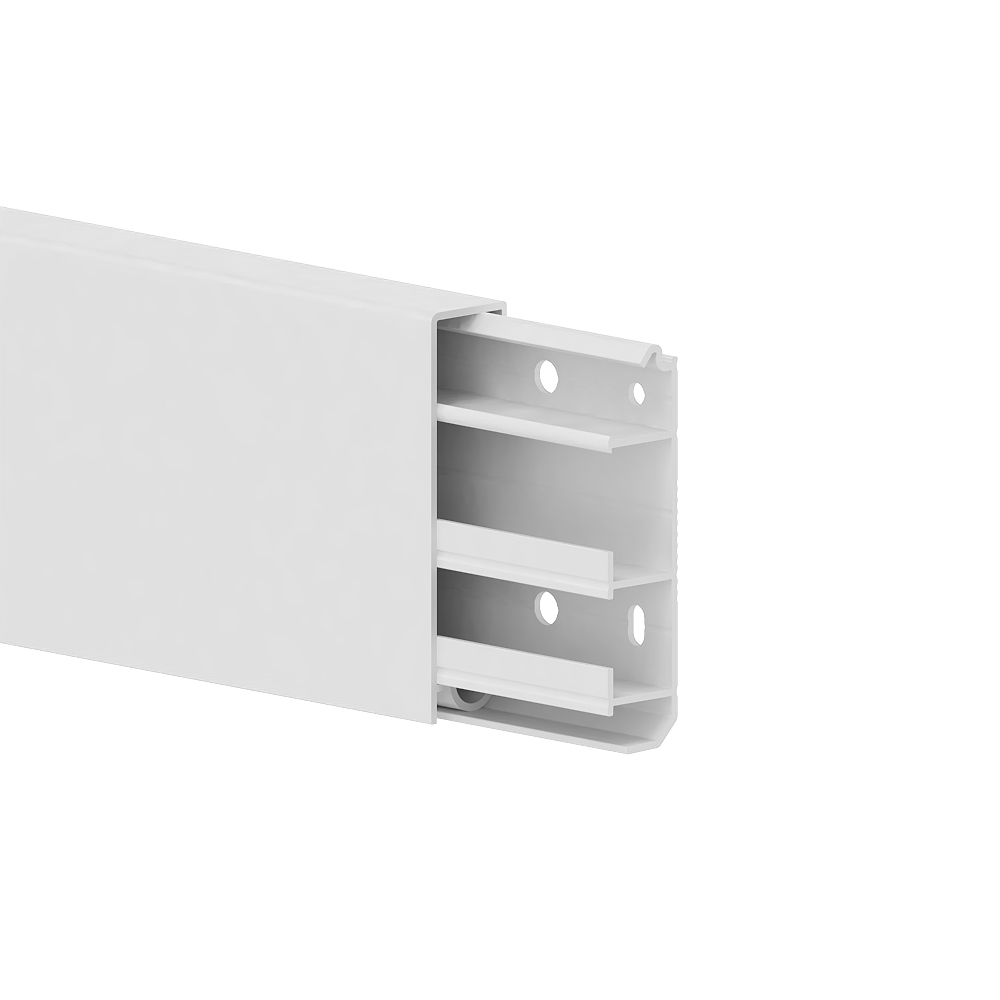

Skirting trunking 4D 20x80-9010, 3 chambers, base with base perforation, white
| Manufacturer | GGK |
| Item number | 114008 |
| List price excl. VAT | 18,49 EUR / meter |
| Product group | 75-4D |
| Packing unit | 8 meters |
| EAN code | 4018475347007 |
| Tariff number | 39259020 |
| Product status |
Core range
|
E skirting trunking made of PVC according to DIN EN 50085-2-1 for cable laying on the wall, consisting of a base with double-row floor perforation for screwing and three separate chambers for cable laying/separation as well as a completely overlapping cover for snapping onto the base. The distance from the floor to the first occupancy chamber is 11 mm and thus fulfils the minimum distance to the floor according to DIN EN 50085-2-1.

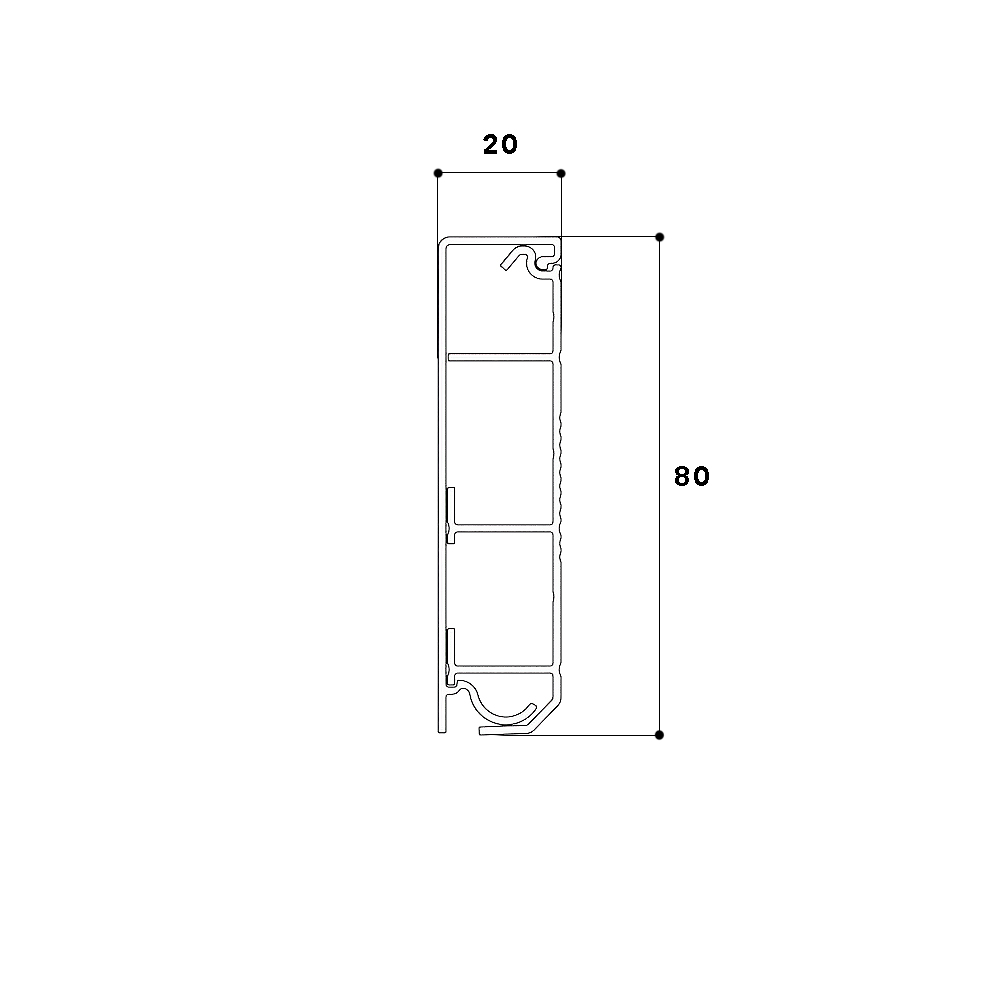

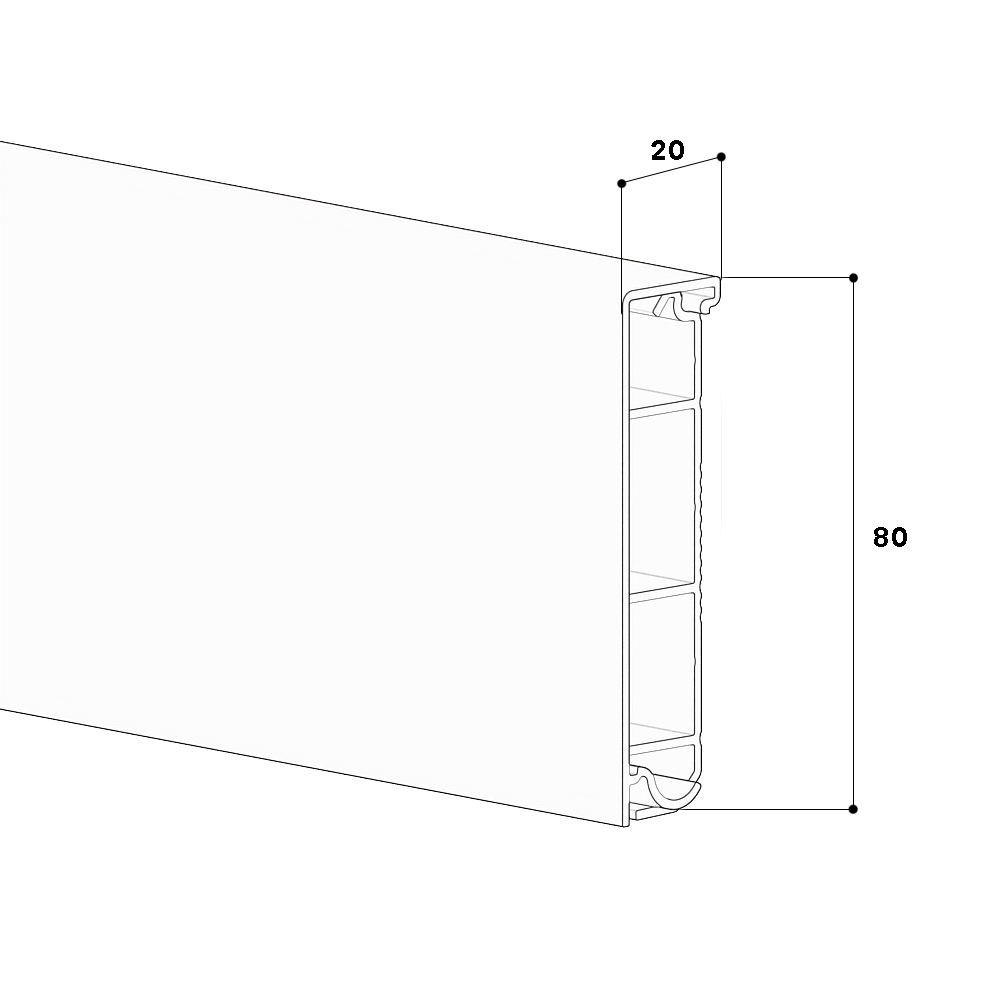

| Height | 80 mm |
| Depth | 20 mm |
| Length | 2000 mm |
| With carpet border | no |
| Material | plastic |
| Halogen free | no |
| Colour cover | white |
| RAL-number | 9010 |
| Decoration | without |
| Number of partitions | 2 |
| Sealing lip cover | without |
| With protective foil | no |
| Degree of protection (IP) | IP30 |
| Useful cross section | 910 mm² |
| Impact strength | IK08 |
| Material quality | Polyvinyl chloride (PVC) |
| Type of fastening | Bottom perforation |
