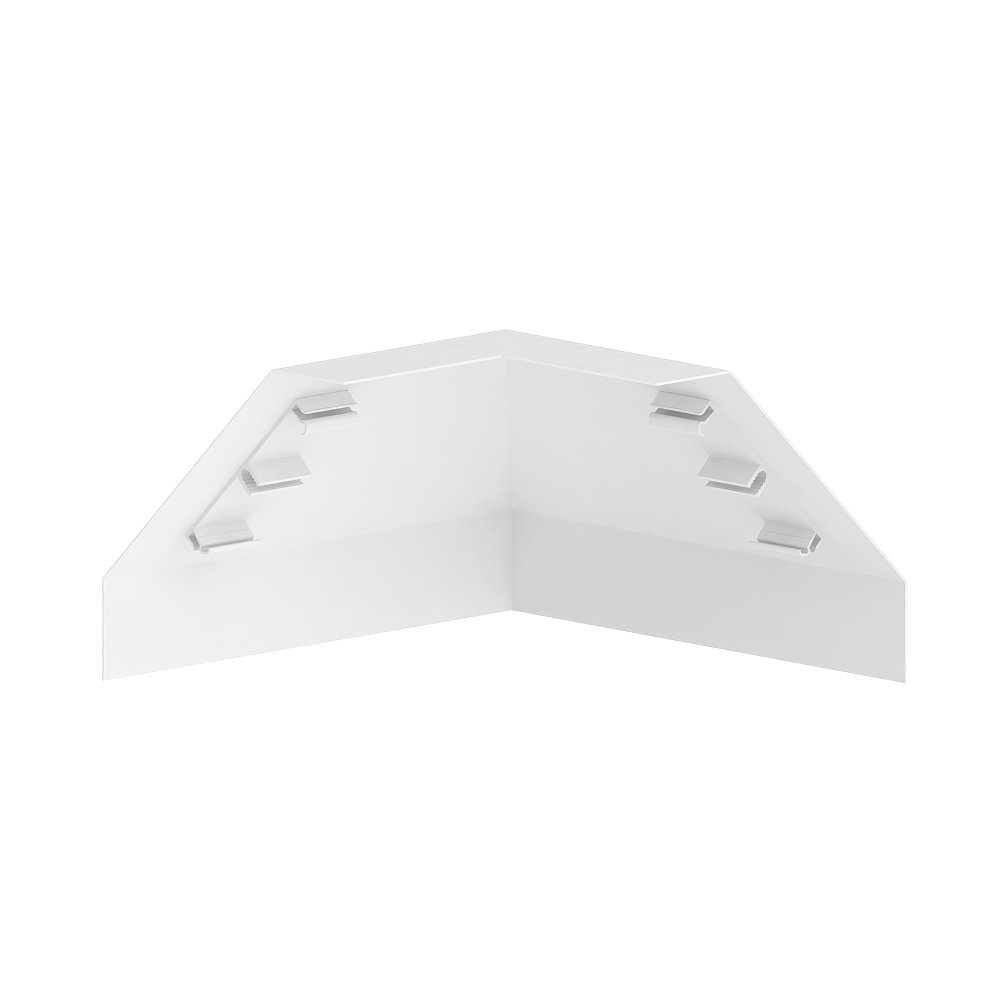

Outer corner BRS 120x120/80-9010, steel, pure white coated
| Manufacturer | GGK |
| Item number | 24009 |
| List price excl. VAT | 169,99 EUR / piece |
| Product group | 20-Wall installation |
| Packing unit | 1 piece |
| EAN code | 4018475276543 |
| Tariff number | 73089059 |
| Product status |
Core range
|
Outer corner as cut-covering moulded hood for wall duct made of sheet steel, for routing cables around wall projections, with pre-assembled cover for plugging into the bases.
| Width | 120 mm |
| Depth | 120 mm |
| Number of covers | 1 |
| Cover width 1 | 80 mm |
| Symmetric | yes |
| Model | Moulded hood |
| Angle | from 90 to 90 ° |
| Material | Steel |
| Material quality | other |
| Halogen free | yes |
| Anti-bacterial treatment | no |
| Surface protection | continuously galvanised and coated |
| Colour | white |
| RAL-number | 9010 |
| With protective foil | no |
| With duct connector | no |
| Mounting perforation in bottom | yes |
| Mounting method cover | Inner lying |
| With cable fixing clip | no |
| Degree of protection (IP) | IP30 |
| Impact strength | IK10 |
| Operating temperature | from -5 to 60 °C |
