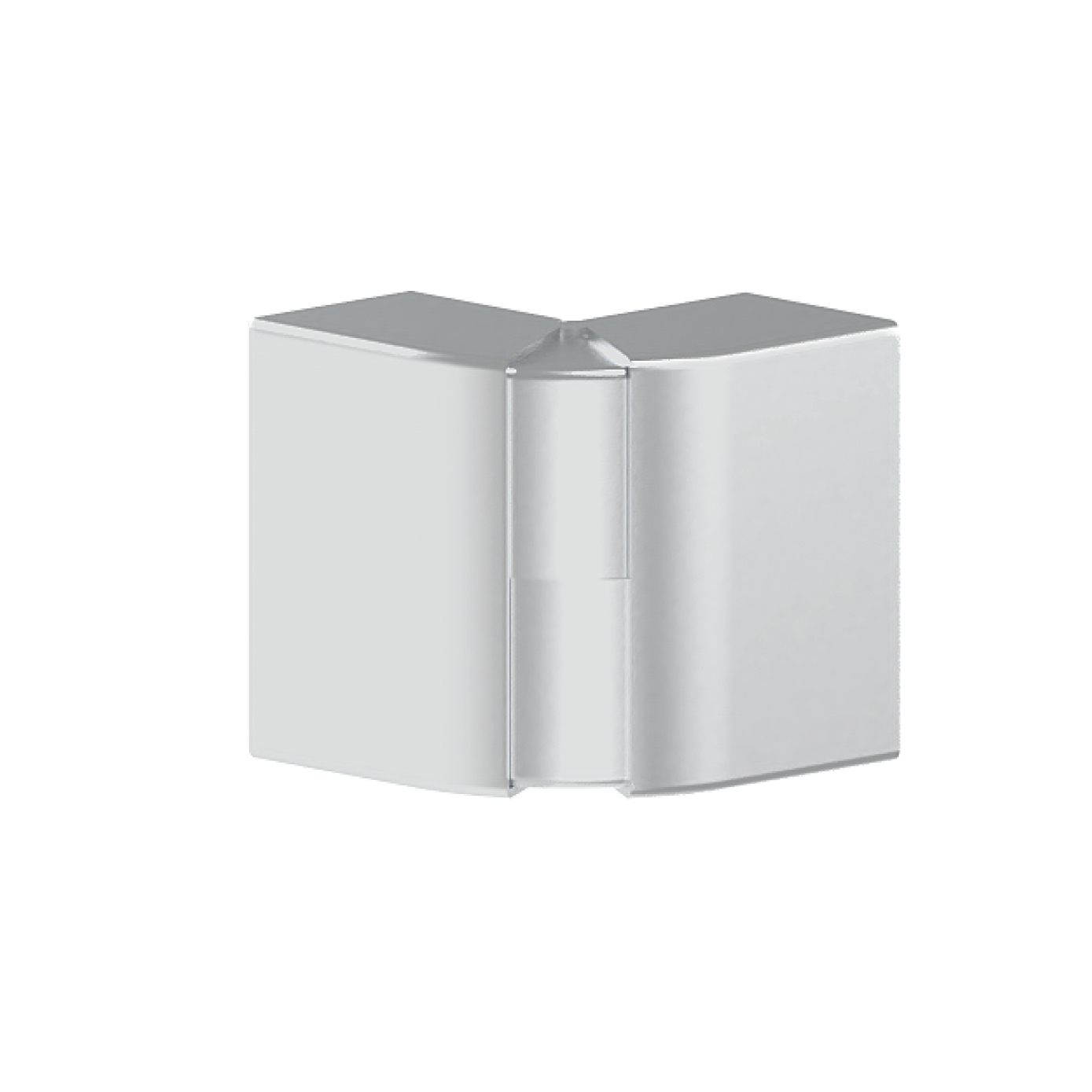

Outer corner adjustable MBR 65x130-9006, plastic hf, cut-covering, alu
| Manufacturer | GGK |
| Item number | 18223 |
| List price excl. VAT | 78,66 EUR / piece |
| Product group | 20-Wall installation |
| Packing unit | 1 piece |
| EAN code | 4018475278165 |
| Tariff number | 39259020 |
| Product status |
Core range
|
External corner as moulded part for wall duct, angle-adjustable with an adjustment range of +/- 10°, for laying cables around wall projections.
| Width | 130 mm |
| Depth | 65 mm |
| Number of covers | 2 |
| Cover width 1 | 45 mm |
| Cover width 2 | 45 mm |
| Symmetric | yes |
| Model | Moulded hood |
| Angle | from 100 to 100 ° |
| Material | plastic |
| Material quality | Polyvinyl chloride (PVC) |
| Halogen free | no |
| Anti-bacterial treatment | no |
| Surface protection | wet varnished |
| Colour | silver |
| With protective foil | no |
| With duct connector | no |
| Mounting perforation in bottom | yes |
| Mounting method cover | Inner lying |
| With cable fixing clip | no |
| Degree of protection (IP) | IP30 |
| Impact strength | IK10 |
| Operating temperature | from -5 to 60 °C |
