On-floor trunking ABK 18x75-9005, PVC, 3 chambers, ribbed back side, black
| Manufacturer | GGK |
| Item number | 6681 |
| List price excl. VAT | 15,74 EUR / meter |
| Product group | 70-Residential installation |
| Packing unit | 36 meters |
| EAN code | 4018475247642 |
| Tariff number | 39259020 |
| Product status |
Core range
|
On-floor installation duct made of PVC according to DIN EN 50085-2-2 for the protection of cables and to avoid tripping hazards caused by cables lying on the floor, consisting of a base with three separate chambers and an overlapping cover with a fluted surface structure that is less sensitive to scratches. The profile can be walked on as well as stepped on and can withstand vertical loads of ~ 102 kg (1000 N). Note: The colour of the bases may vary due to production.

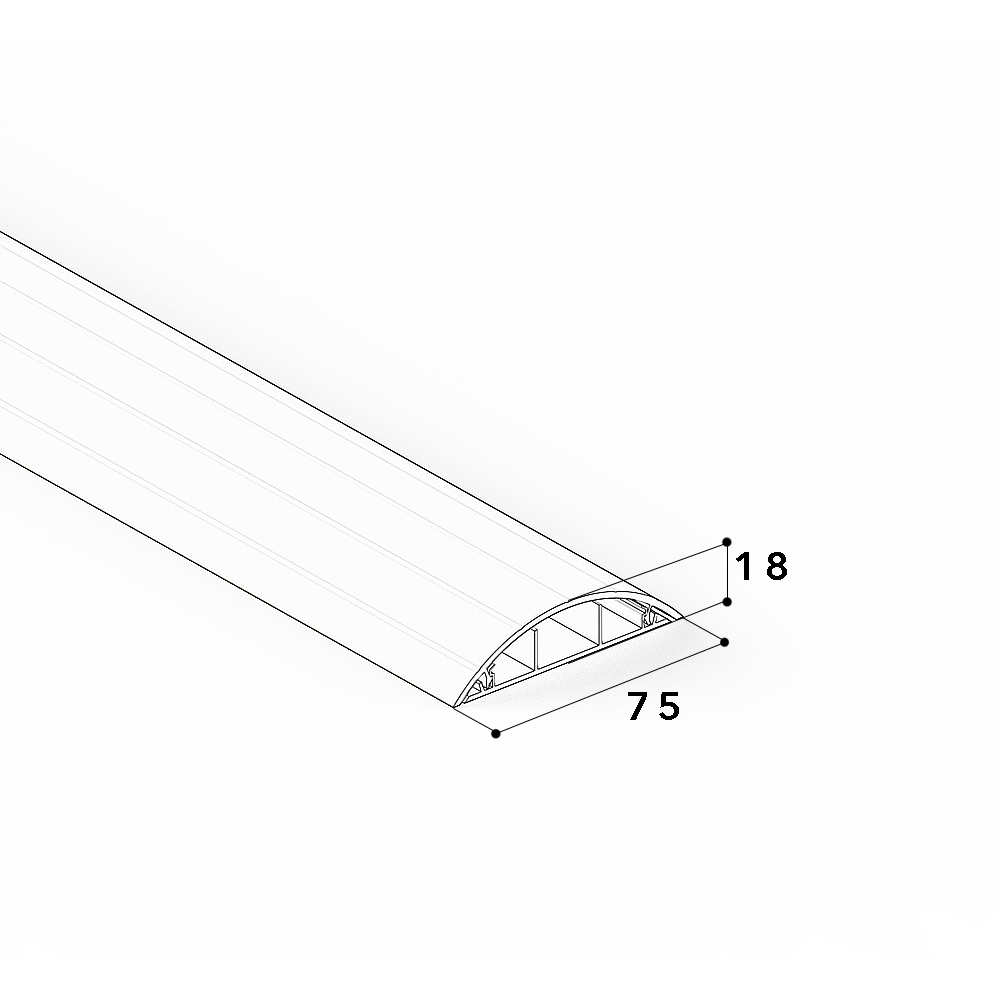

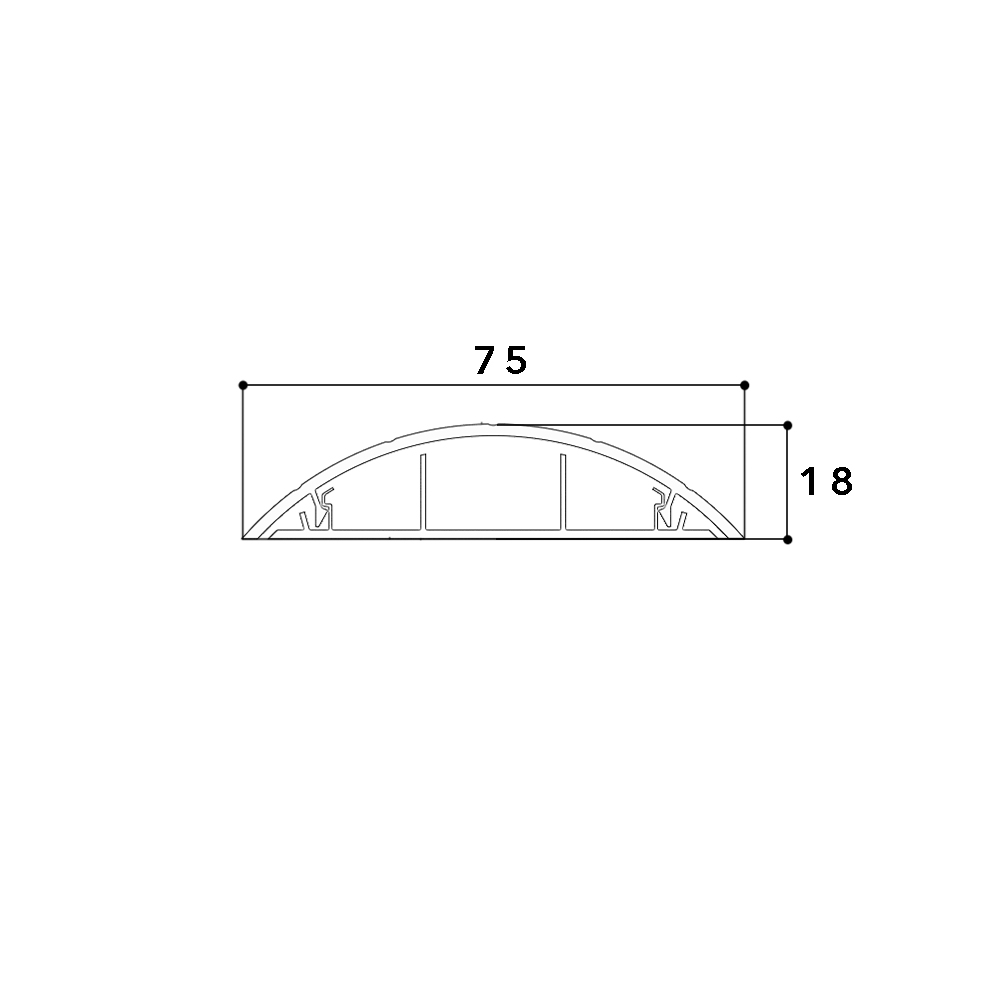

| Width | 75 mm |
| Height | 18 mm |
| Number of channels | 3 |
| Length | 2000 mm |
| Material | plastic |
| Halogen free | no |
| Anti-bacterial treatment | no |
| Colour | black |
| RAL-number | 9005 |
| Self-adhesive | no |
| Sealing lip | no |
| With anti-slip layer | no |
| Max. load capacity | 0.102 t |
| Degree of protection (IP) | IP30 |
| Impact strength | IK08 |
| With cover cap | no |
| Material quality | Polyvinyl chloride (PVC) |
| Permitted cable diameter | from 8 to 10 mm |
| Mounting perforation in bottom | no |
| Slotted hole | no |
| With fixation | no |
| Demountable | yes |
| Reflective | no |
| Fuel- and oil resistant | yes |
| Resistance to vertical load applied in a small surface according IEC 61084-2-2 | 1000 |
| Resistance to vertical load applied in a large surface according IEC 61084-2-2 | 1000 |
| Suitable for car | no |
| Suitable for truck | no |
| Bending strength | Rigid |
