On-floor trunking ABK 18x75-7030, PVC, 3 chambers, ribbed back side, grey

Manufacturer GGK
Item number 4221
List price excl. VAT 12,70 EUR / meter
Product group 70-Residential installation
Packing unit 36 meters
EAN code 4018475042216
Tariff number 39259020
Product status
Core range

On-floor installation duct made of PVC according to DIN EN 50085-2-2 for the protection of cables and to avoid tripping hazards caused by cables lying on the floor, consisting of a base with three separate chambers and an overlapping cover with a fluted surface structure that is less sensitive to scratches. The profile can be walked on as well as stepped on and can withstand vertical loads of ~ 102 kg (1000 N). Note: The colour of the bases may vary due to production.

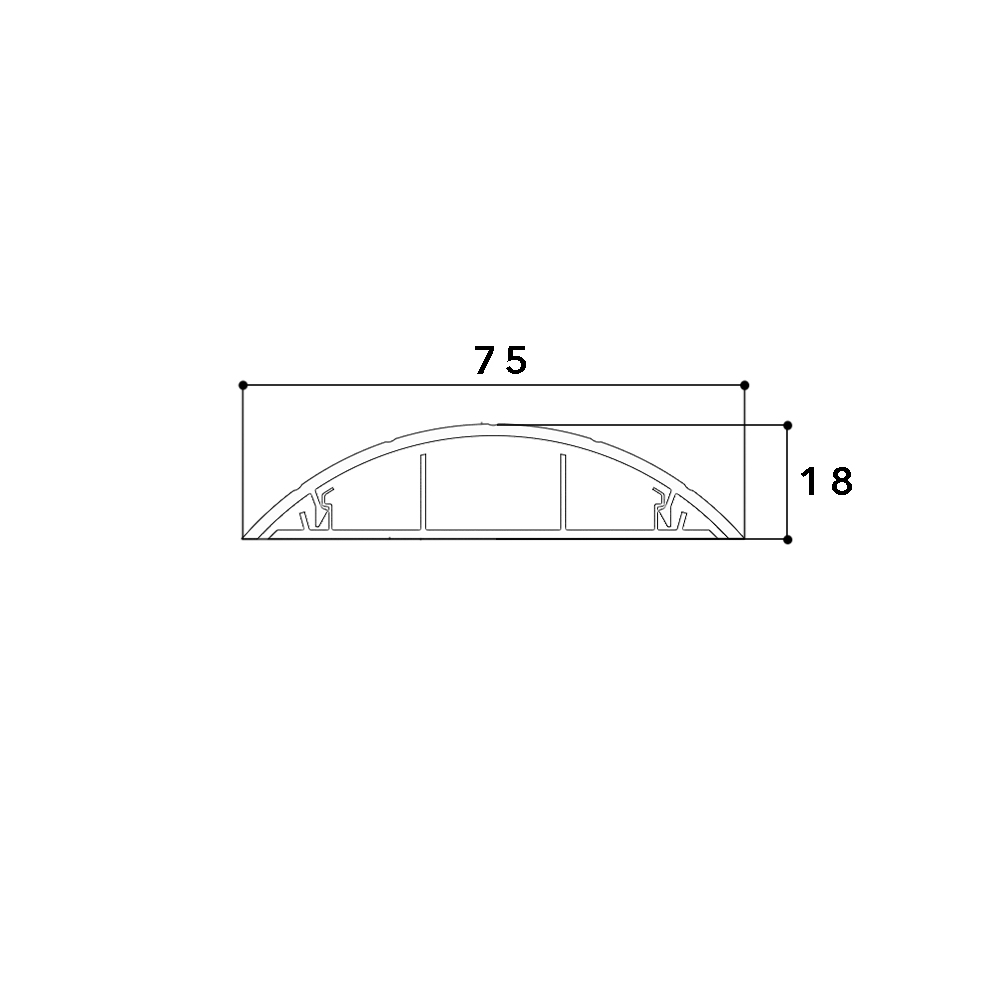

Width 75 mm
Height 18 mm
Number of channels 3
Length 2000 mm
Material plastic
Halogen free no
Colour other
RAL-number 7030
Self-adhesive no
With anti-slip layer no
