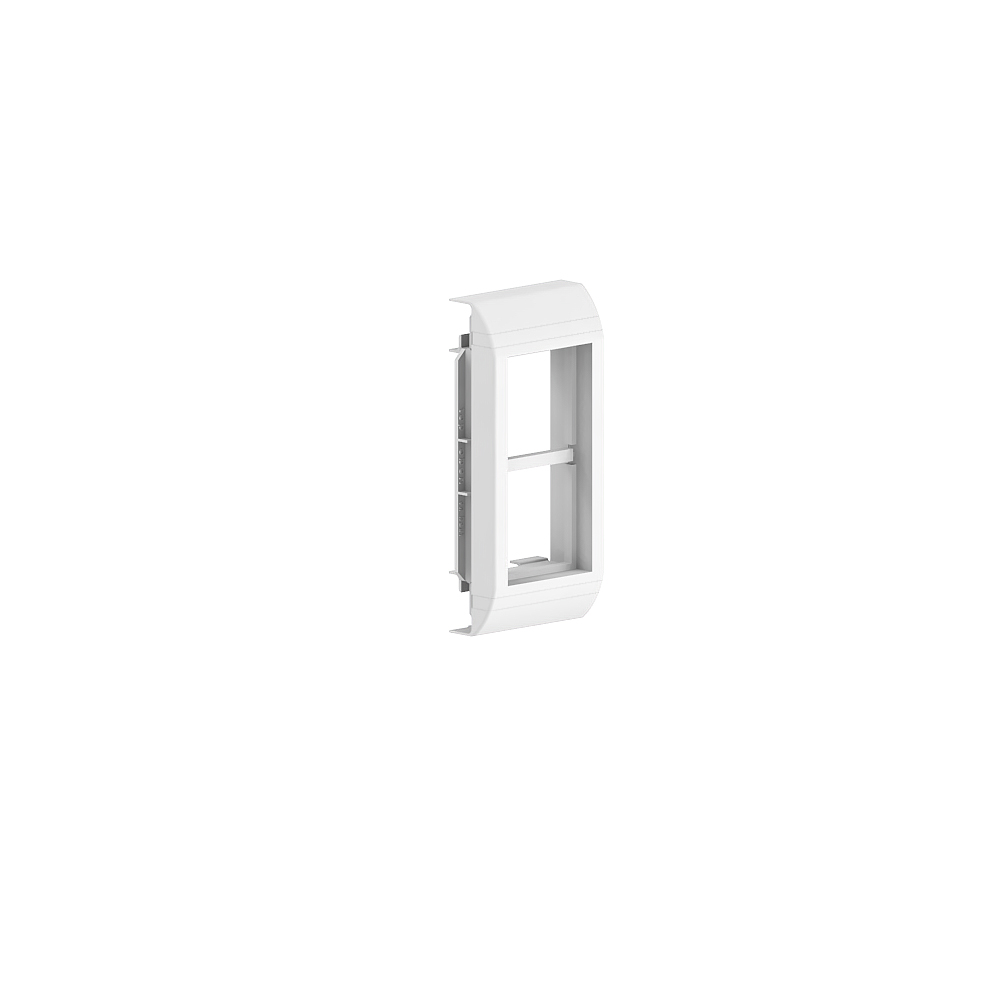

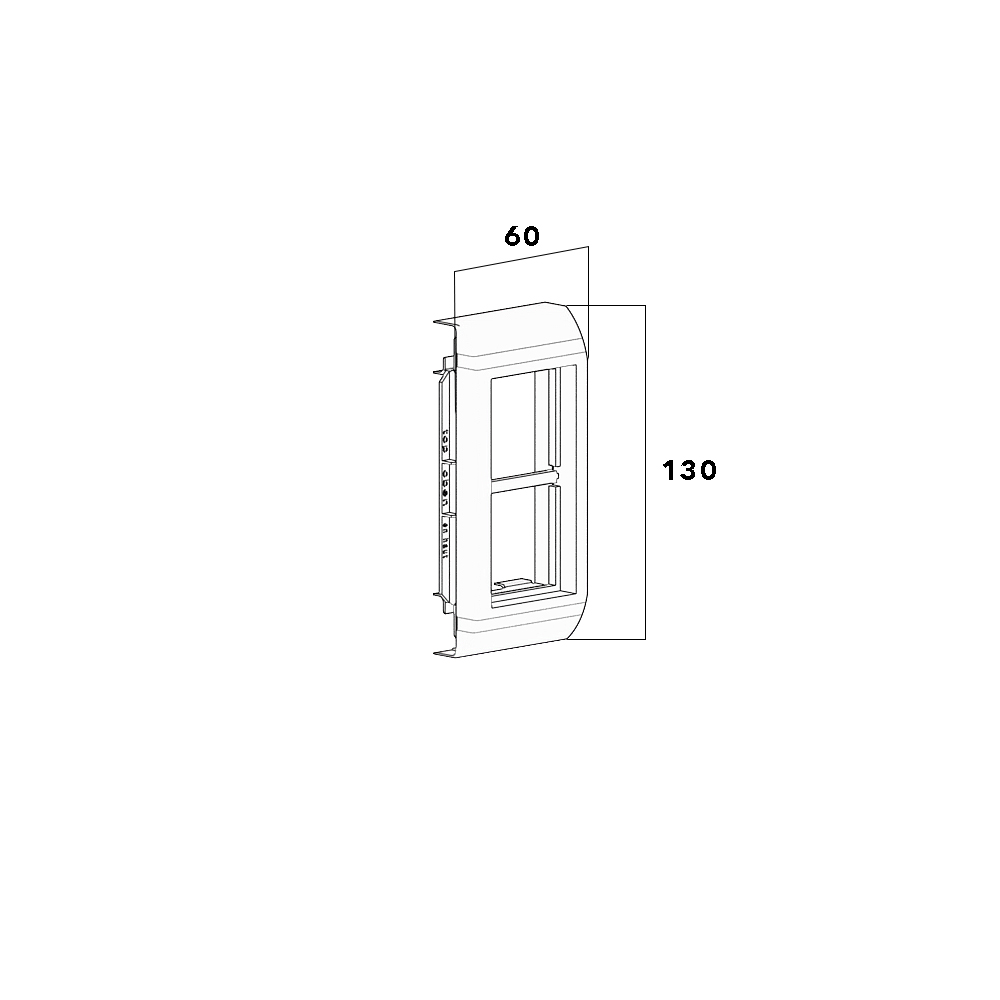

Modul frame FB 60x130-9010, for two devices 45x45 mm, pure white
| Manufacturer | GGK |
| Item number | 16654 |
| List price excl. VAT | 13,7 EUR / piece |
| Product group | 10-Cable routing |
| Packing unit | 1 piece |
| EAN code | 4018475264106 |
| Tariff number | 85381000 |
| Product status |
Core range
|
Mounting frame for accommodating two compact M45 built-in devices in 45x45 mm format (2 single installation devices or one multiple socket outlet), consisting of mounting support and cover frame, for installation in PVC cable ducts with a 130 mm wide top section, for horizontal device installation.
| Number of units | 2 |
| Mounting method box | front |
| Model | open |
| Type of device | with bearer ring/bearer bracket |
| Mounting track | other |
| Mounting method installation unit | snap |
| Strain relief possibility | no |
| With connection space | no |
| Material | plastic |
| Halogen free | no |
