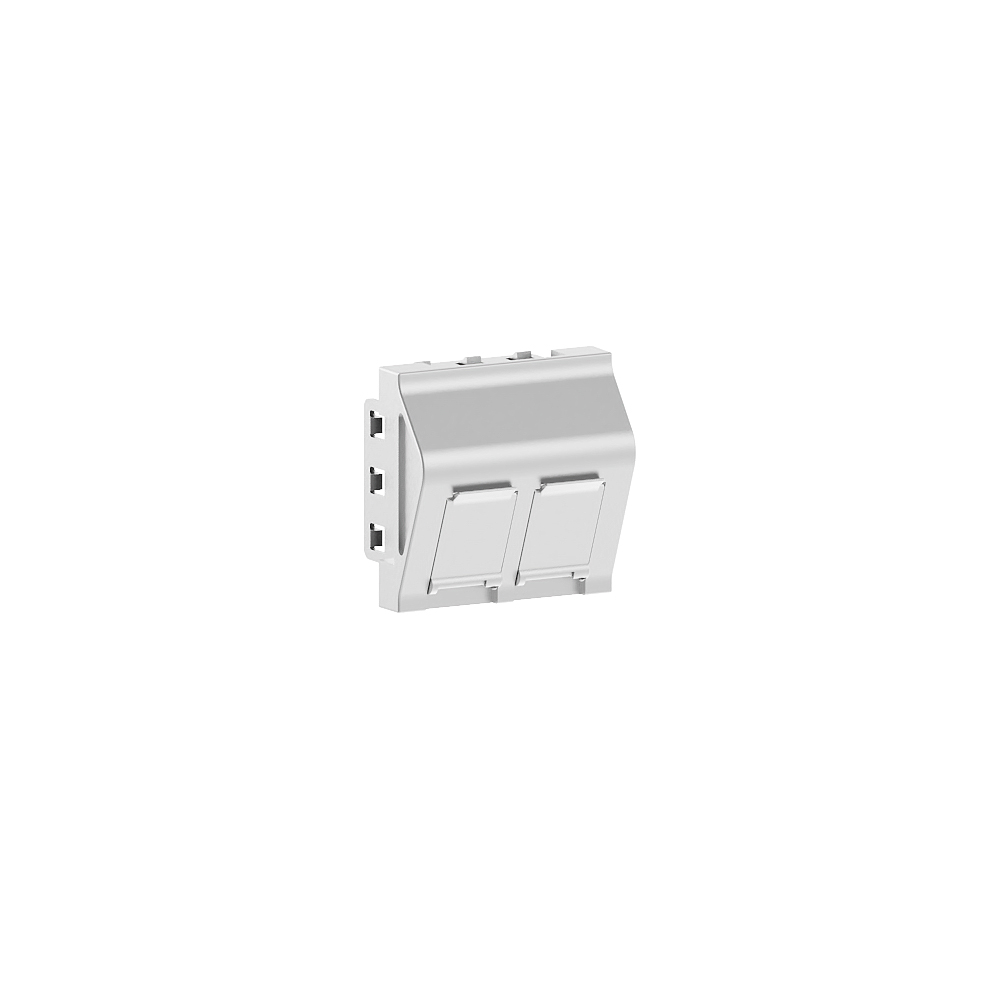

Keystone wall outlet KA-2-9006, 45x45mm, 2 ports unequipped, alu
| Manufacturer | GGK |
| Item number | 6638 |
| List price excl. VAT | 13,6 EUR / piece |
| Product group | 40-Installation devices |
| Packing unit | 1 piece |
| EAN code | 4018475289550 |
| Tariff number | 39269097 |
| Product status |
Core range
|
Connection unit for accommodating two data technology modules in keystone design, plug-in direction of modules inclined approx. 30° downwards, with dust protection flaps, for installation in wall trunking and service poles with 45 mm top section and all installation frames/device supports for accommodating compact M45 built-in devices, for horizontal and vertical device installation.
| Surface mounting | no |
| Flush-mounted installation | no |
| Duct installation | yes |
| Floor box/subfloor mounted | yes |
| Type of fastening | engage (snap) |
| Assembly arrangement | other |
| Type of connector | other |
| With buses/couplings | yes |
| Suitable for number of connectors | 2 |
| Category | 6A (IEC) |
| Colour | silver |
| RAL-number | 9006 |
| Connection type | other |
| With label space | no |
| Compatible with third-party covers | yes |
| Mounting method shielding connection | other |
| Outlet direction | Inclined |
| Degree of protection (IP) | other |

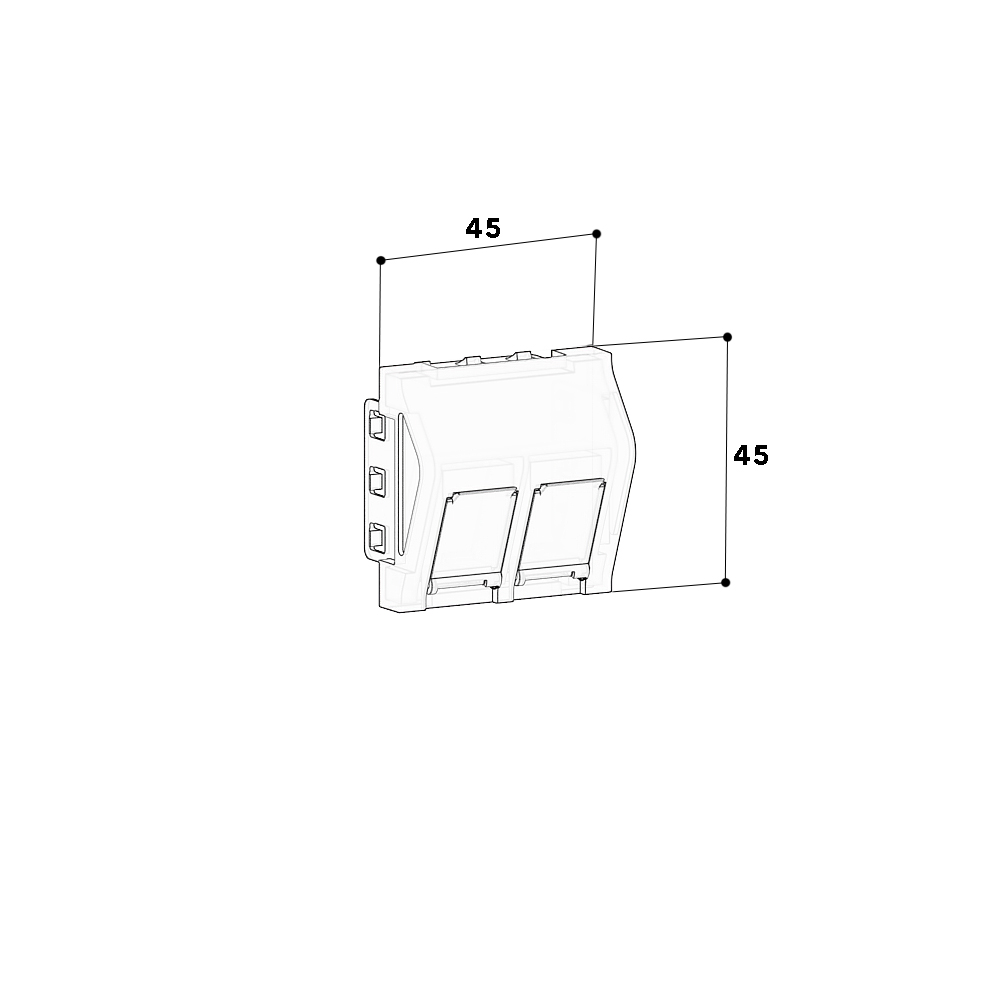

| Width of device | 45 mm |
| Height of device | 45 mm |
| Depth of device | 40 mm |
