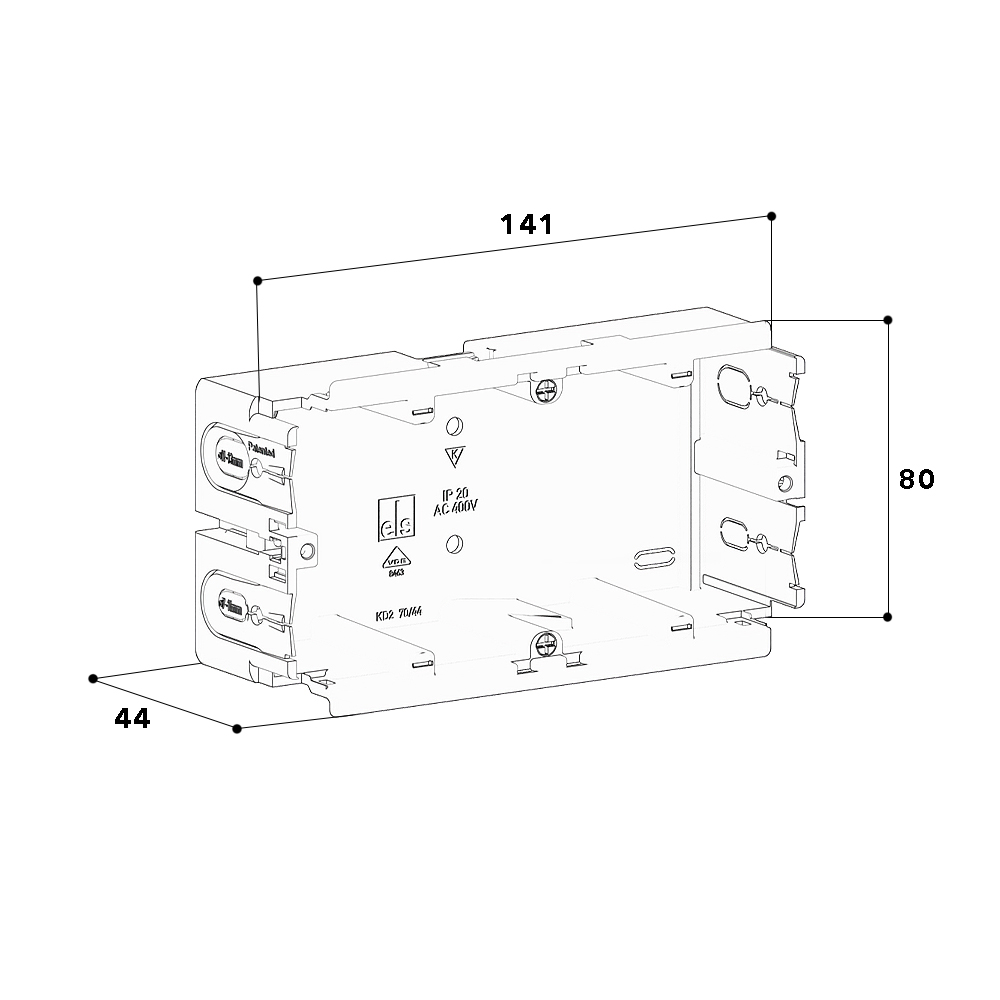

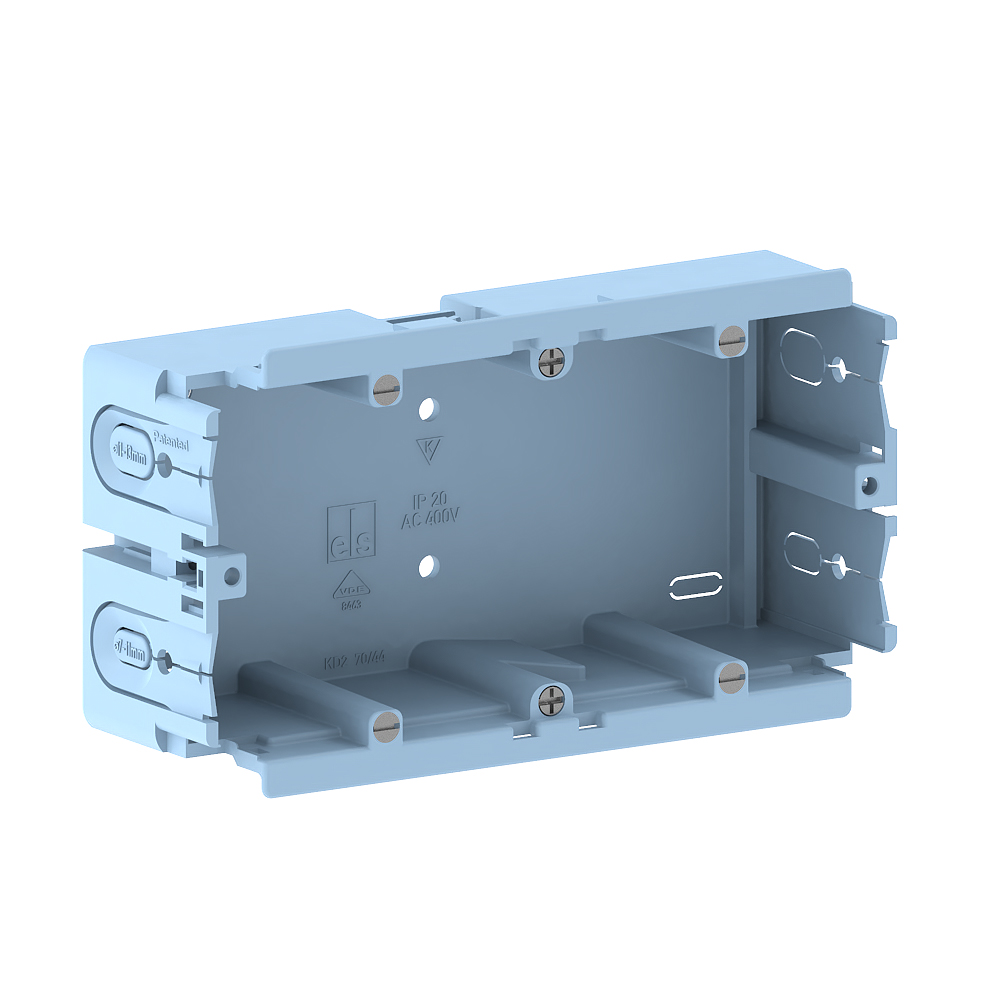

Junction box for wall duct double GDX/P-2 front-locking for BR/BRA/BRS
| Manufacturer | GGK |
| Item number | 3678 |
| List price excl. VAT | 15,98 EUR / piece |
| Product group | 20-Wall installation |
| Packing unit | 20 pieces |
| EAN code | 4018475228429 |
| Tariff number | 39269097 |
| Product status |
Core range
|
Halogen-free flush-mounting box for accommodating two commercially available device units from the standard switch range (2 single installation devices or one multiple socket outlet), with strain-relief feed openings for cable diameters of 7-11mm and 11-13mm, for installation in wall trunking with a 76.5 mm wide fixing track.
| Number of units | 2 |
| Mounting method box | front |
| Model | open |
| Type of device | other |
| Mounting track | 83.5 mm |
| Mounting method installation unit | crew |
| Strain relief possibility | yes |
| Material | plastic |
| Halogen free | no |
