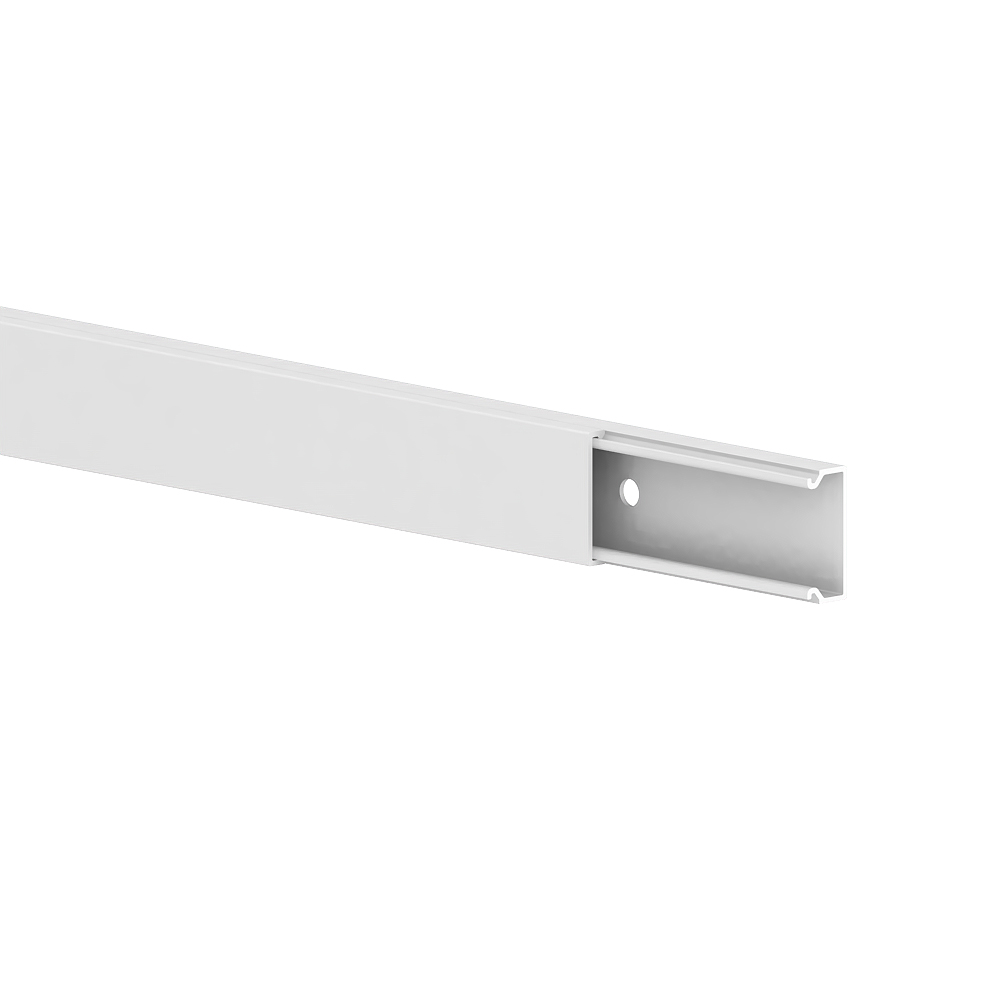

Installation trunking Mini-H 10x20-9010, PC/ABS (halogen-free), pure white
| Manufacturer | GGK |
| Item number | 4107 |
| List price excl. VAT | 4,74 EUR / meter |
| Product group | 10-Cable routing |
| Packing unit | 72 meters |
| EAN code | 4018475278561 |
| Tariff number | 39259020 |
| Product status |
Core range
|
installation trunking made of PC/ABS (halogen-free) according to DIN EN 50085-2-1 for cable routing on walls and ceilings, consisting of completely overlapping cover and base with single-row base perforation for fastening. Note: Sound and fire protection measures must be carried out professionally.
| Height | 10 mm |
| Width | 22 mm |
| Length | 2000 mm |
| Useful cross section | 142 mm² |
| Material | plastic |
| Material quality | Polyvinyl chloride (PVC) |
| Halogen free | yes |
| Colour | pure white |
| RAL-number | 9010 |
| Number of permanent partitions | 0 |
| Number of plug-in partitions | 0 |
| Type of fastening | base perforation |
| Cover model | loose |
| With cable fixing clip | no |
| With protective foil | no |
