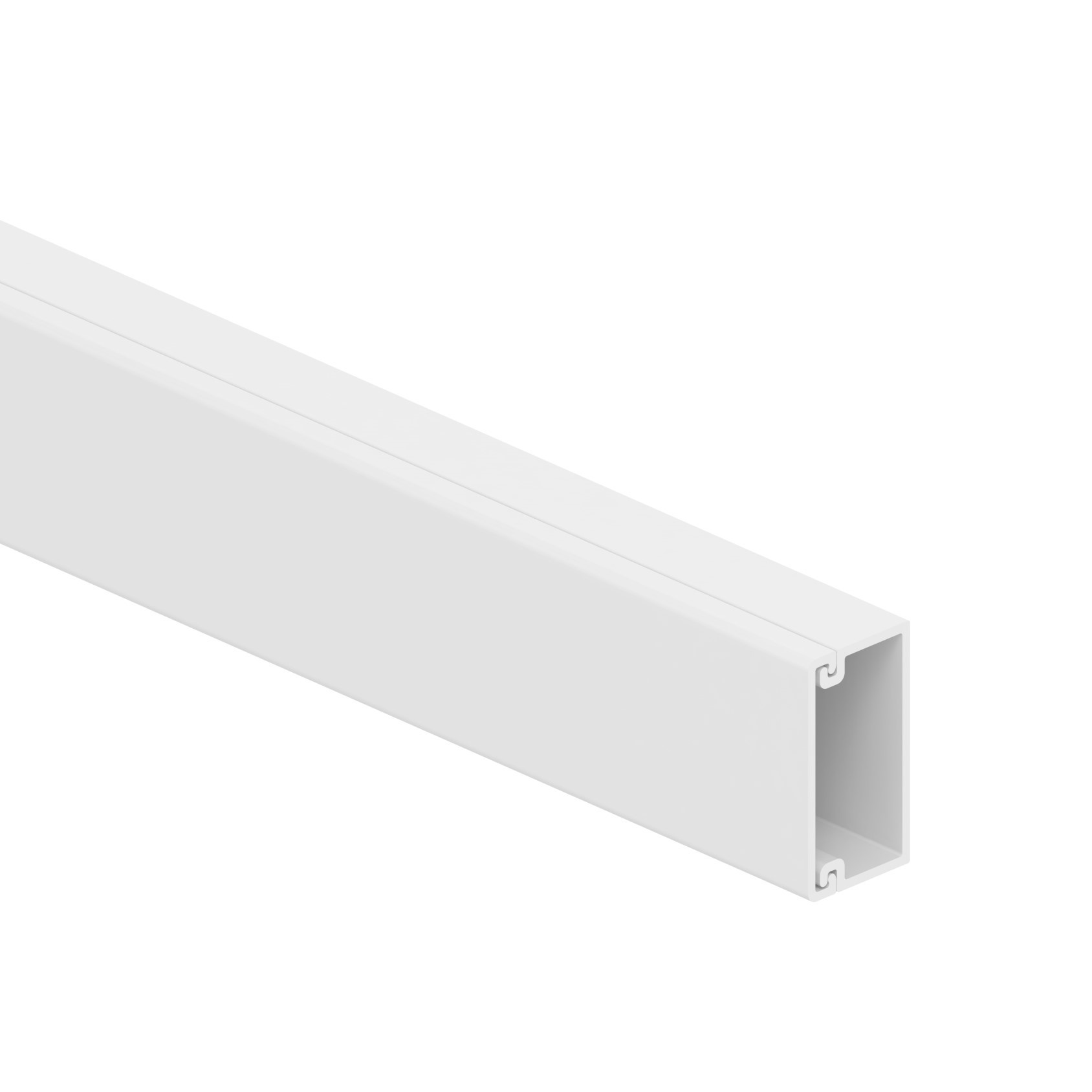

Installation trunking Mini 13x25mm-9010, PVC, with base perforation, pure white
| Manufacturer | GGK |
| Item number | 11021 |
| List price excl. VAT | 3,55 EUR / meter |
| Product group | 10-Cable routing |
| Packing unit | 48 meters |
| EAN code | 4018475349537 |
| Tariff number | 39259020 |
| Product status |
PVC installation trunking according to DIN EN 50085-2-1 for cable laying on walls and ceilings, consisting of a completely overlapping cover and base with single-row base perforation for fastening. Note: For the easy retrofitting of additional cables, the surface-mounted profile 13x25 (article no. 11022) is to be used for extending an existing installation.

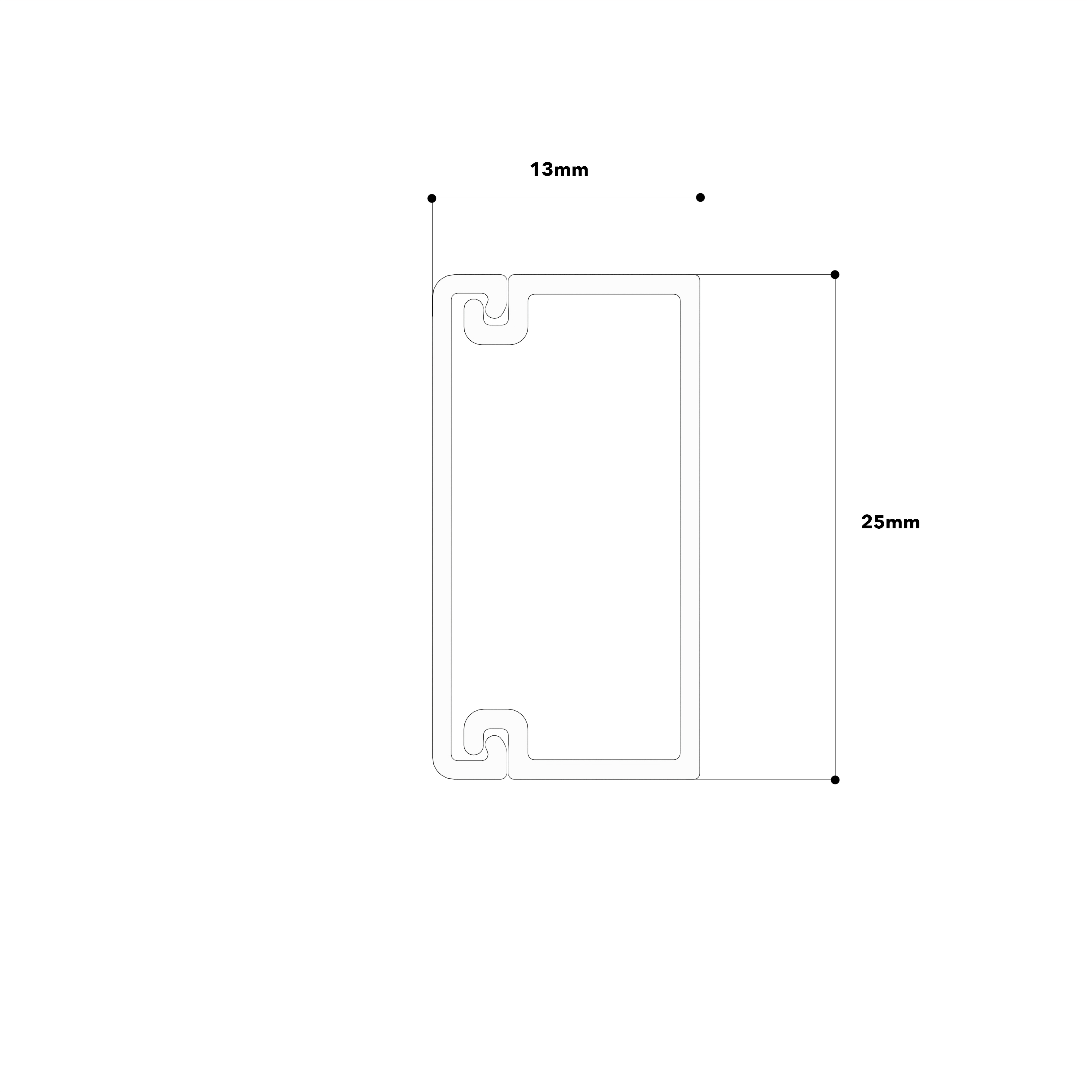

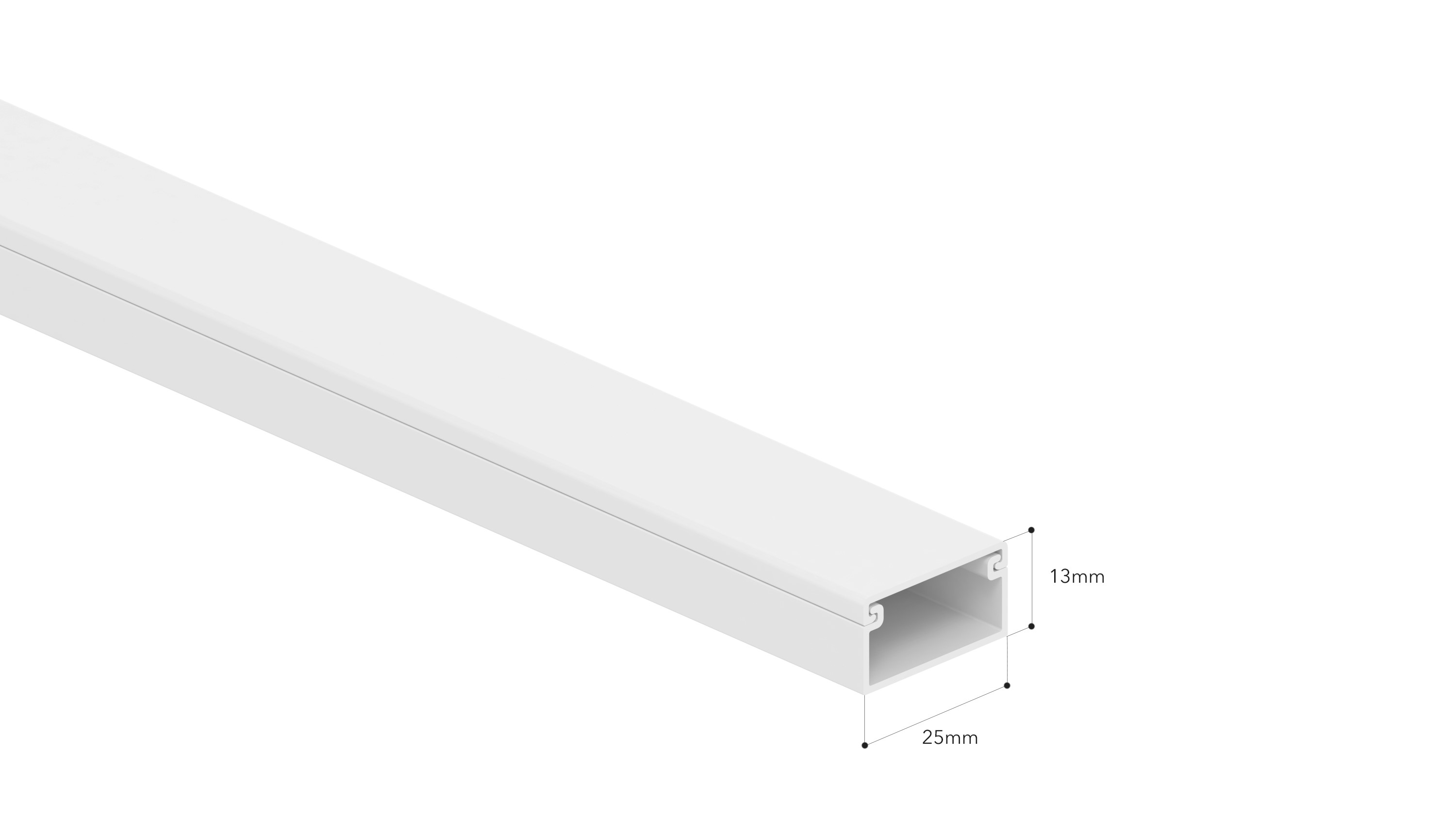

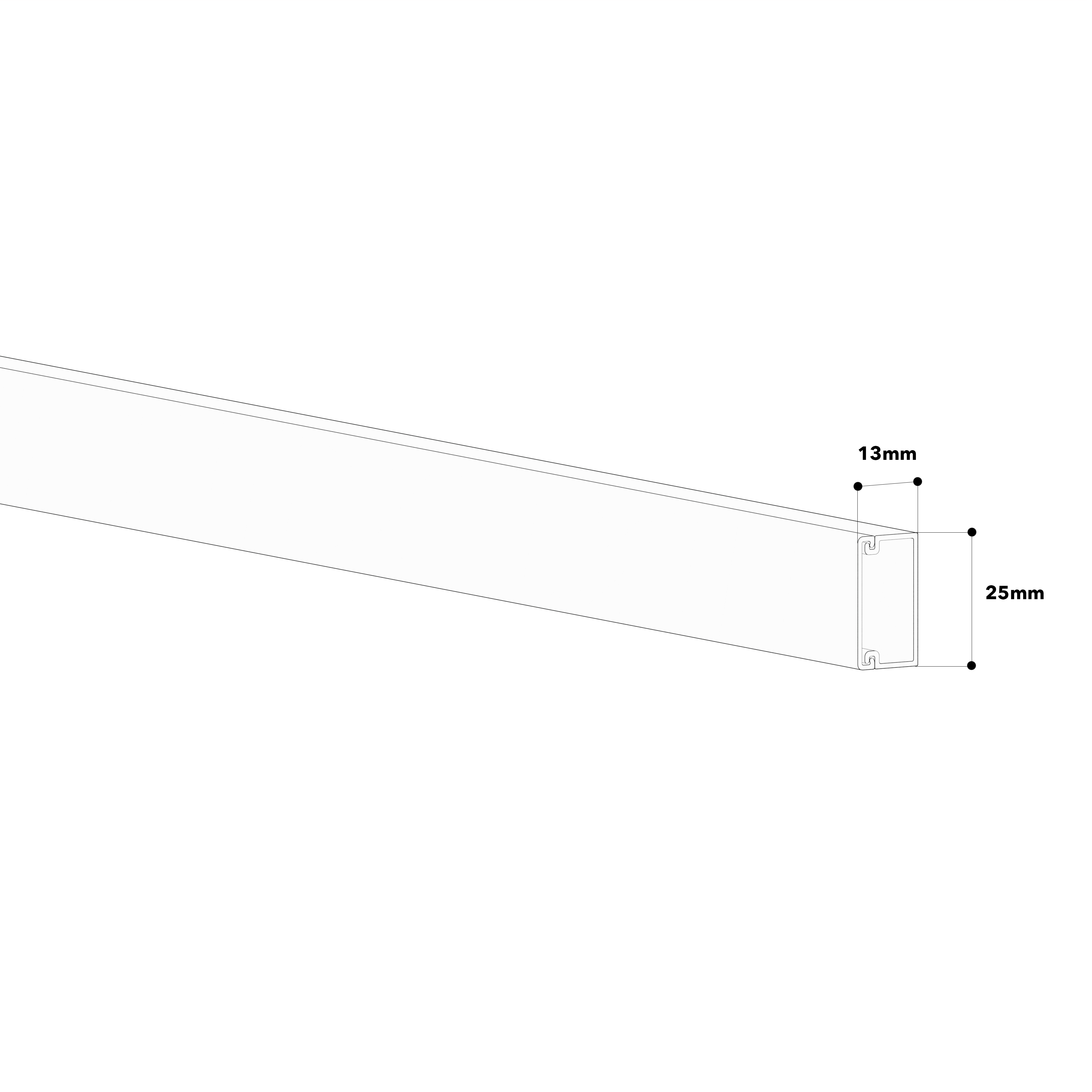

| Height | 13 mm |
| Width | 25 mm |
| Length | 2000 mm |
| Useful cross section | 166.96 mm² |
| Material | plastic |
| Material quality | Polyvinyl chloride (PVC) |
| Halogen free | no |
| Anti-bacterial treatment | no |
| Surface protection | other |
| Suitable for circuit integrity | no |
| Colour | white |
| Transparent | no |
| RAL-number | 9010 |
| Number of permanent partitions | 0 |
| Number of plug-in partitions | 0 |
| Type of fastening | Bottom perforation |
| Cover model | loose |
| With cable fixing clip | no |
| With protective foil | no |
| With duct connector | no |
| Delivery on roll | no |
| Pre-stamping | no |
| Degree of protection (IP) | IP30 |
| Impact strength | IK07 |
| Operating temperature | from -5 to 60 °C |
