Installation trunking LFS 40x40, steel, without base perforation, zinc

Manufacturer GGK
Item number 2742
List price excl. VAT 22,57 EUR / meter
Product group 10-Cable routing
Packing unit 12 meters
EAN code 4018475027428
Tariff number 73089059
Product status
Core range

Sheet steel cable trunking according to DIN EN 50085-2-1 for cable laying on walls and ceilings, consisting of a completely overlapping cover and base. (bases available with floor perforation and permanently welded partition wall on request) Note: Potential equalisation, earthing, sound and fire protection measures must be carried out professionally.

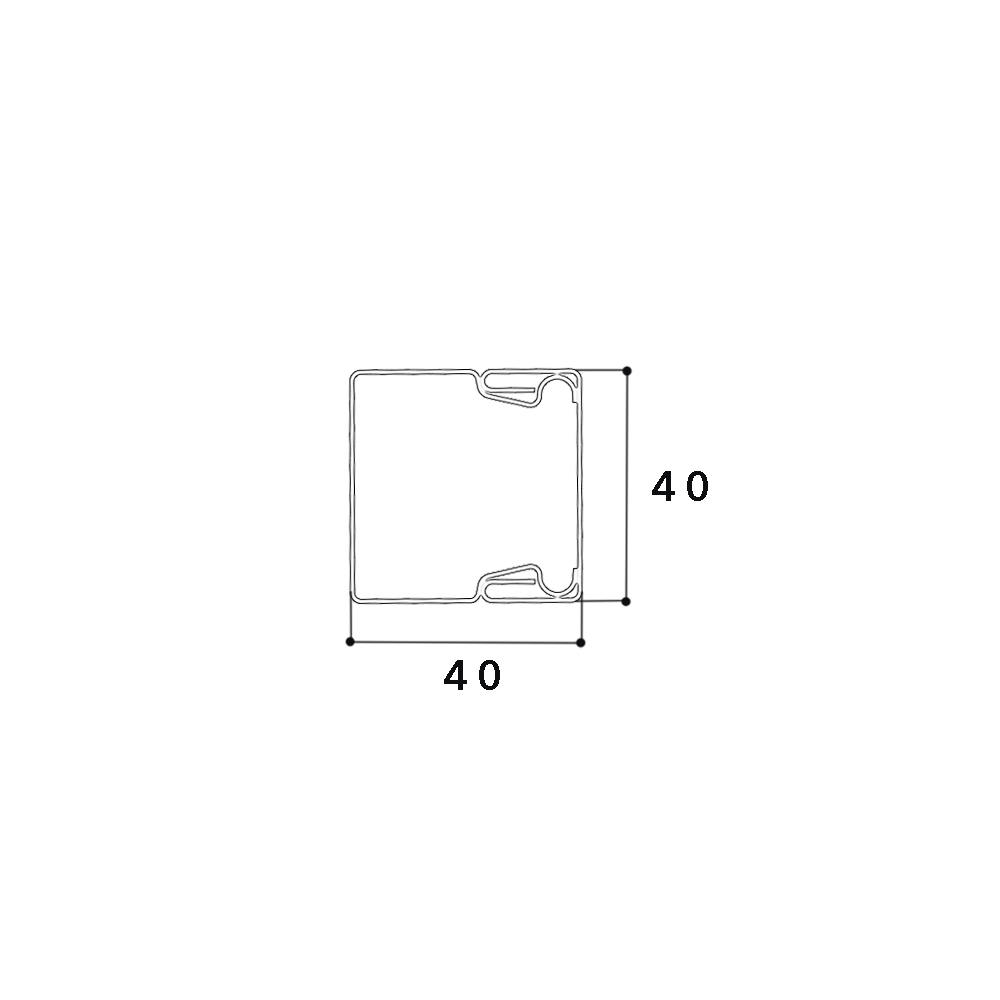

Height 40 mm
Width 40 mm
Length 2000 mm
Useful cross section 1521 mm²
Material steel
Material quality other
Halogen free yes
Surface protection pre-galvanised
Colour other
Number of permanent partitions 0
Number of plug-in partitions 0
Type of fastening other
Cover model loose
With cable fixing clip no
With protective foil no
