Installation trunking LFG 60x60-8014, PVC, with base perforation, brown

Manufacturer GGK
Item number 1043
List price excl. VAT 17,18 EUR / meter
Product group 10-Cable routing
Packing unit 24 meters
EAN code 4018475010437
Tariff number 39259020
Product status
Core range

PVC installation trunking according to DIN EN 50085-2-1 for cable routing on walls and ceilings, consisting of a completely overlapping cover and base with double-row base perforation for fastening and a mounting rail for the installation of a snap-in partition, 4 freely movable cable holding clips are included per 2 metre. Note: Sound and fire protection measures must be carried out professionally.

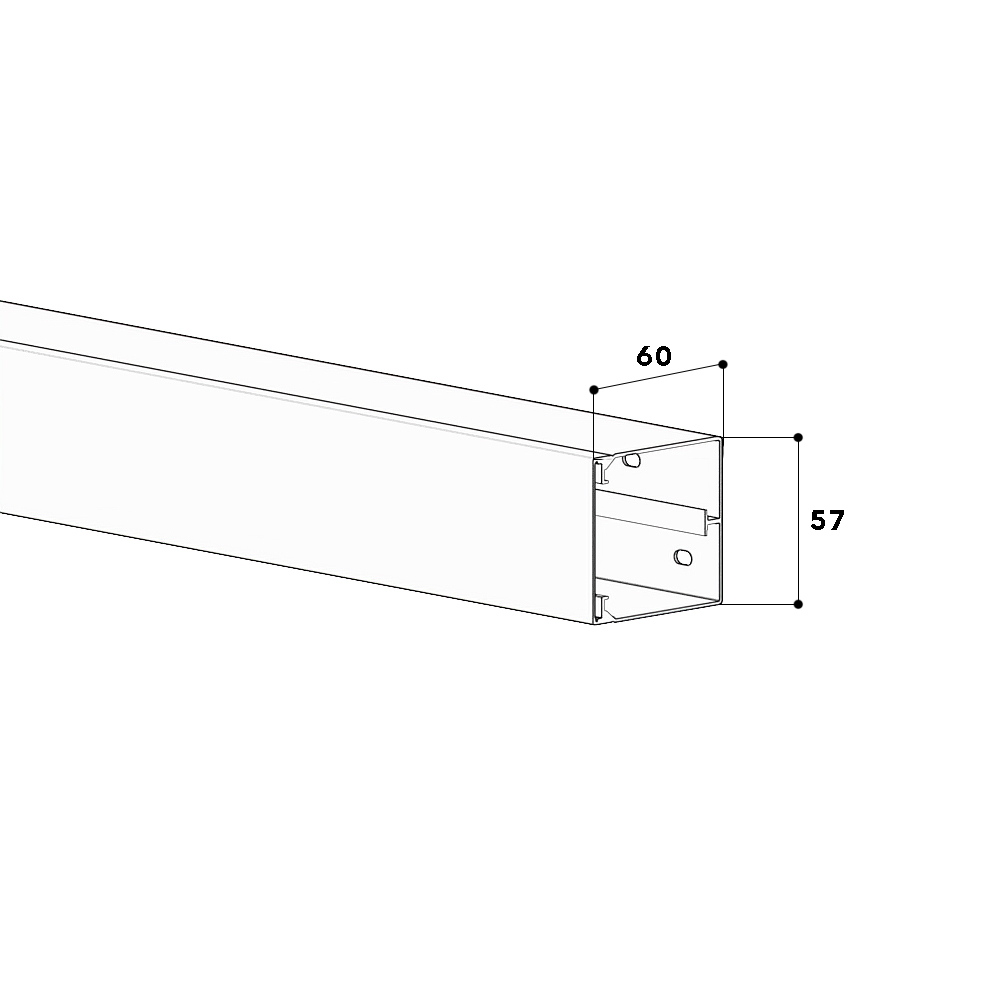

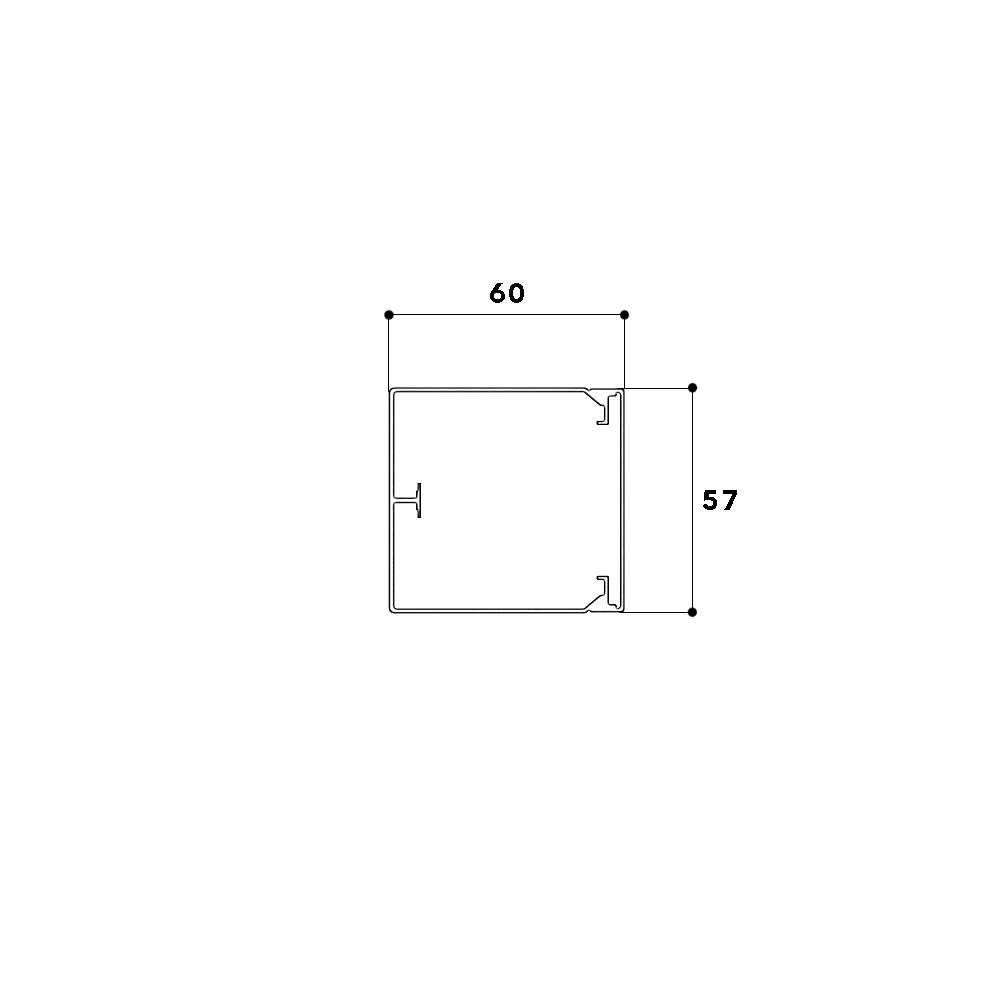

Height 60 mm
Width 57 mm
Length 2000 mm
Useful cross section 3048 mm²
Material plastic
Material quality Polyvinyl chloride (PVC)
Halogen free no
Colour brown
RAL-number 8014
Number of permanent partitions 0
Number of plug-in partitions 1
Type of fastening base perforation
Cover model loose
With cable fixing clip yes
With protective foil no
