Installation trunking LFG 40x60t-7035, PVC, with divider, light grey

Manufacturer GGK
Item number 2863
List price excl. VAT 12,78 EUR / meter
Product group 10-Cable routing
Packing unit 24 meters
EAN code 4018475028630
Tariff number 39259020
Product status
Core range

PVC installation trunking according to DIN EN 50085-2-1 for cable routing on walls and ceilings, consisting of a completely overlapping cover and base with double-row base perforation for fastening and a fixed partition wall, 4 freely adjustable cable retaining clips included per 2 metre. Note: Sound and fire protection measures must be carried out professionally.

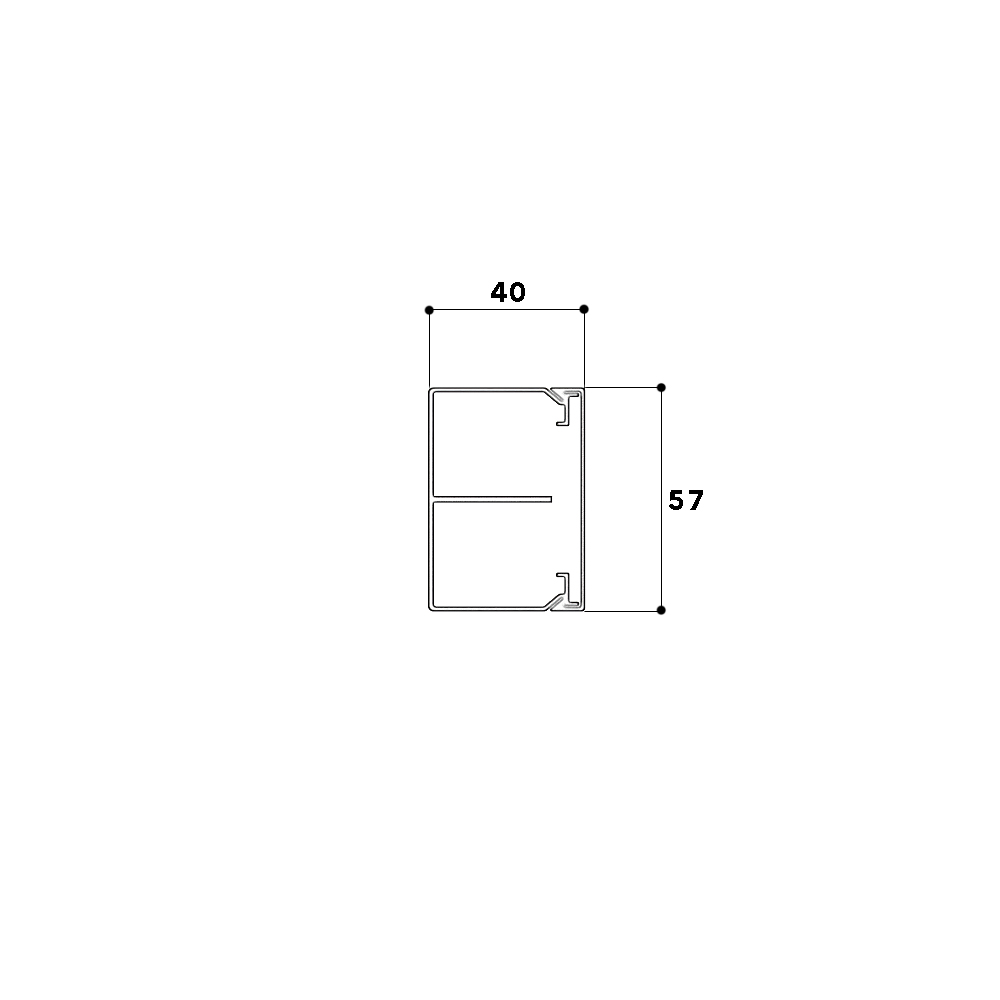

Height 40 mm
Width 57 mm
Length 2000 mm
Useful cross section 1804 mm²
Material plastic
Material quality Polyvinyl chloride (PVC)
Halogen free no
Colour light grey
RAL-number 7035
Number of permanent partitions 1
Number of plug-in partitions 0
Type of fastening base perforation
Cover model loose
With cable fixing clip yes
With protective foil no
