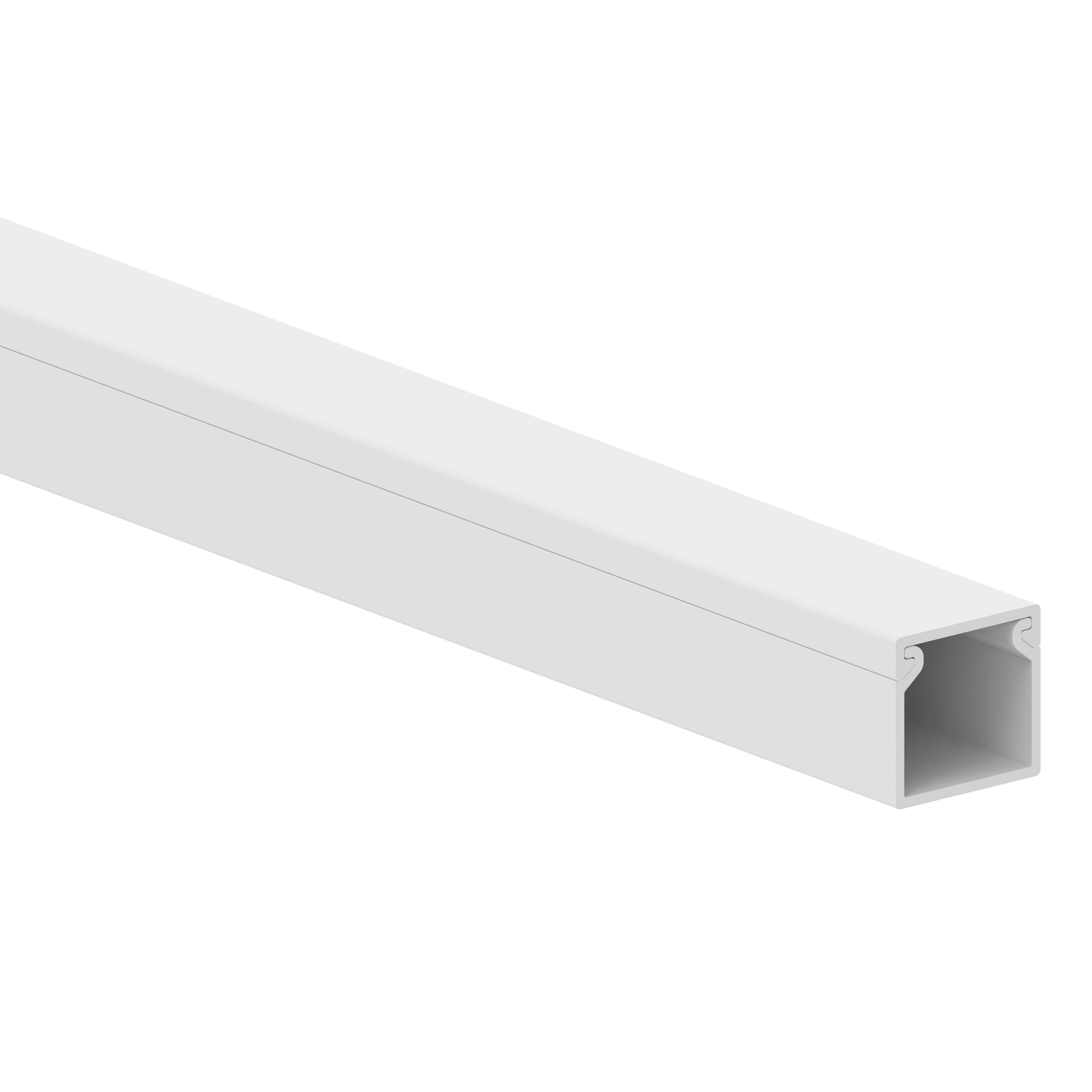

Installation trunking LFG 15x15-9010, PVC, base adhesive, pure white
| Manufacturer | GGK |
| Item number | 14107 |
| List price excl. VAT | 2,94 EUR / meter |
| Product group | 70-Residential installation |
| Packing unit | 200 meters |
| EAN code | 4018475264458 |
| Tariff number | 39259020 |
| Product status |
Core range
|

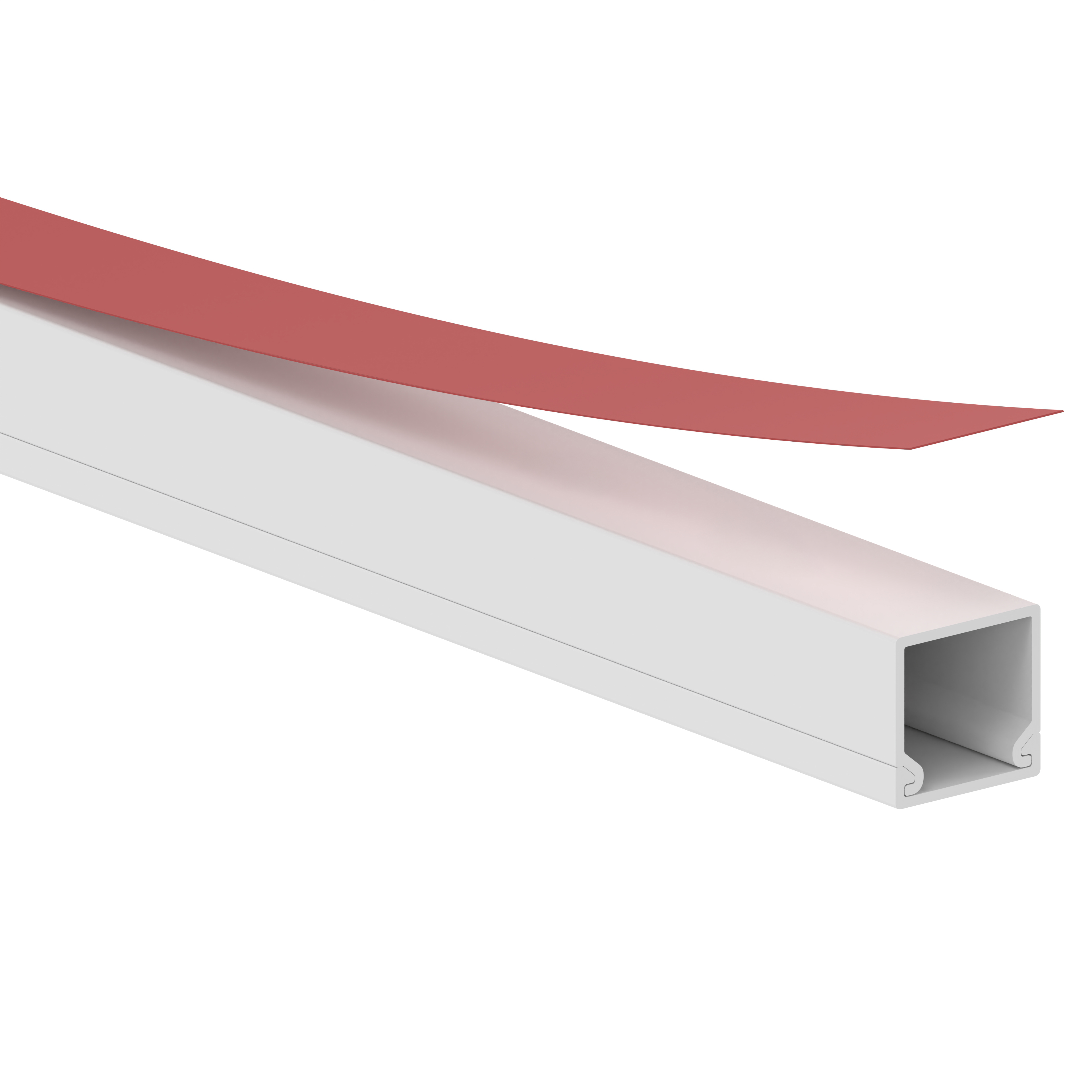

PVC installation trunking according to DIN EN 50085-2-1 for cable laying on walls and ceilings, consisting of a completely overlapping cover and base with double-sided film adhesive tape for fastening. Note: For long-term use, we recommend nailing or screwing.

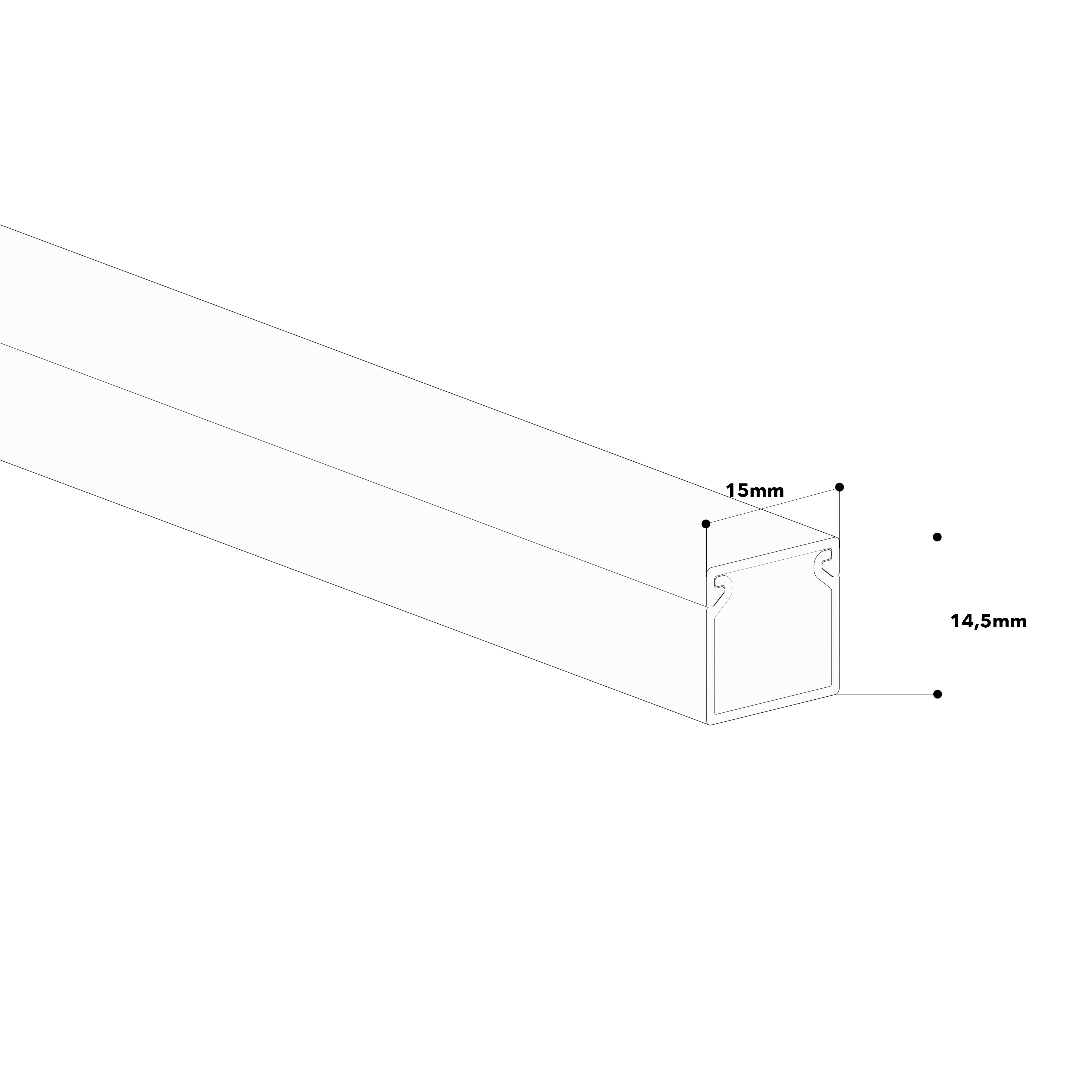

| Height | 15 mm |
| Width | 15 mm |
| Length | 2000 mm |
| Useful cross section | 142 mm² |
| Material | plastic |
| Material quality | Polyvinyl chloride (PVC) |
| Halogen free | no |
| Anti-bacterial treatment | no |
| Surface protection | other |
| Suitable for circuit integrity | no |
| Colour | white |
| Transparent | no |
| RAL-number | 9010 |
| Number of permanent partitions | 0 |
| Number of plug-in partitions | 0 |
| Type of fastening | adhesive |
| Cover model | loose |
| With cable fixing clip | no |
| With protective foil | no |
| With duct connector | no |
| Delivery on roll | no |
| Pre-stamping | no |
| Degree of protection (IP) | IP30 |
| Impact strength | IK08 |
| Operating temperature | from -5 to 60 °C |
