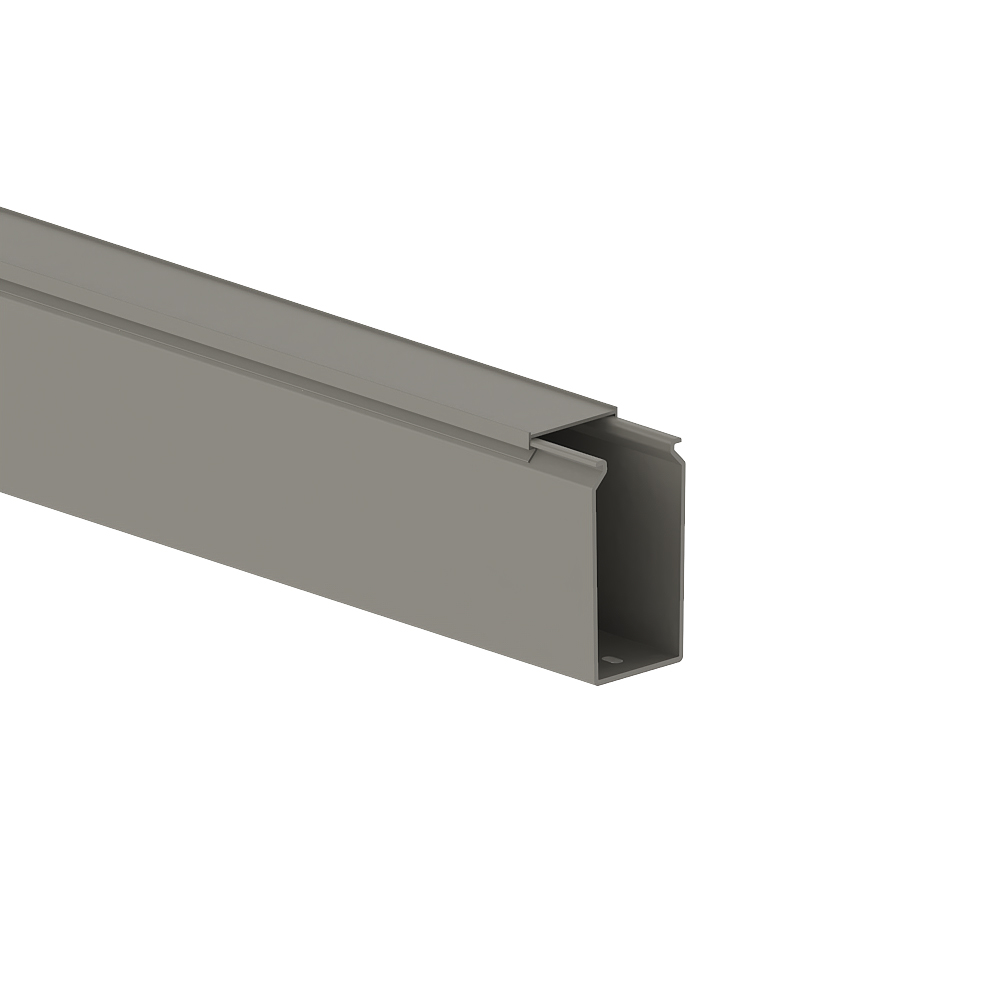

LF-lifter 80x40-7030, Installation trunking, PVC, base and cover, grey
| Manufacturer | GGK |
| Item number | 4754 |
| List price excl. VAT | 13,89 EUR / meter |
| Product group | 60-Slotted trunking |
| Packing unit | 28 meters |
| EAN code | 4018475047549 |
| Tariff number | 39259020 |
| Product status |
Discontinued item
|
PVC installation trunking according to DIN EN 50085 for cable laying especially for lift construction, consisting of a completely overlapping cover with a continuous labelling edge and a base with single-row base perforation according to DIN EN 50085-2-3 for fastening. Note: Sound and fire protection measures must be carried out professionally.

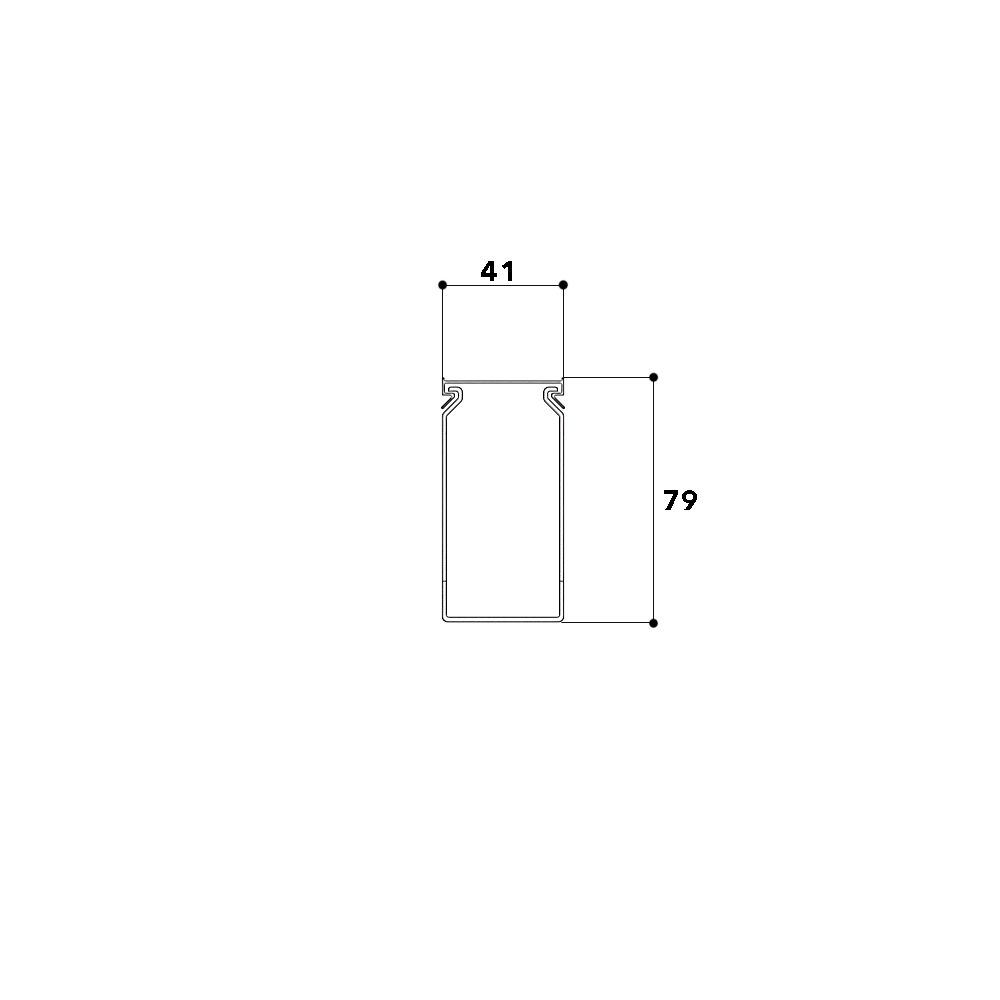

| Height | 80 mm |
| Width | 40 mm |
| Length | 2000 mm |
| Useful cross section | 2727 mm² |
| Material | plastic |
| Material quality | Polyvinyl chloride (PVC) |
| Halogen free | no |
| Colour | other |
| RAL-number | 7030 |
| Number of permanent partitions | 0 |
| Number of plug-in partitions | 0 |
| Type of fastening | base perforation |
| Cover model | loose |
| With cable fixing clip | no |
| With protective foil | no |
Please visit our Downloads section.
