LF-lifter 16x16-7030, Installation trunking, PVC, base and cover, grey

Manufacturer GGK
Item number 4740
List price excl. VAT 4,43 EUR / meter
Product group 60-Slotted trunking
Packing unit 100 meters
EAN code 4018475047402
Tariff number 39259020
Product status
Core range

PVC installation trunking according to DIN EN 50085 for cable laying especially for lift construction, consisting of a completely overlapping cover with a continuous labelling edge and a base with single-row base perforation according to DIN EN 50085-2-3 for fastening. Note: Sound and fire protection measures must be carried out professionally.

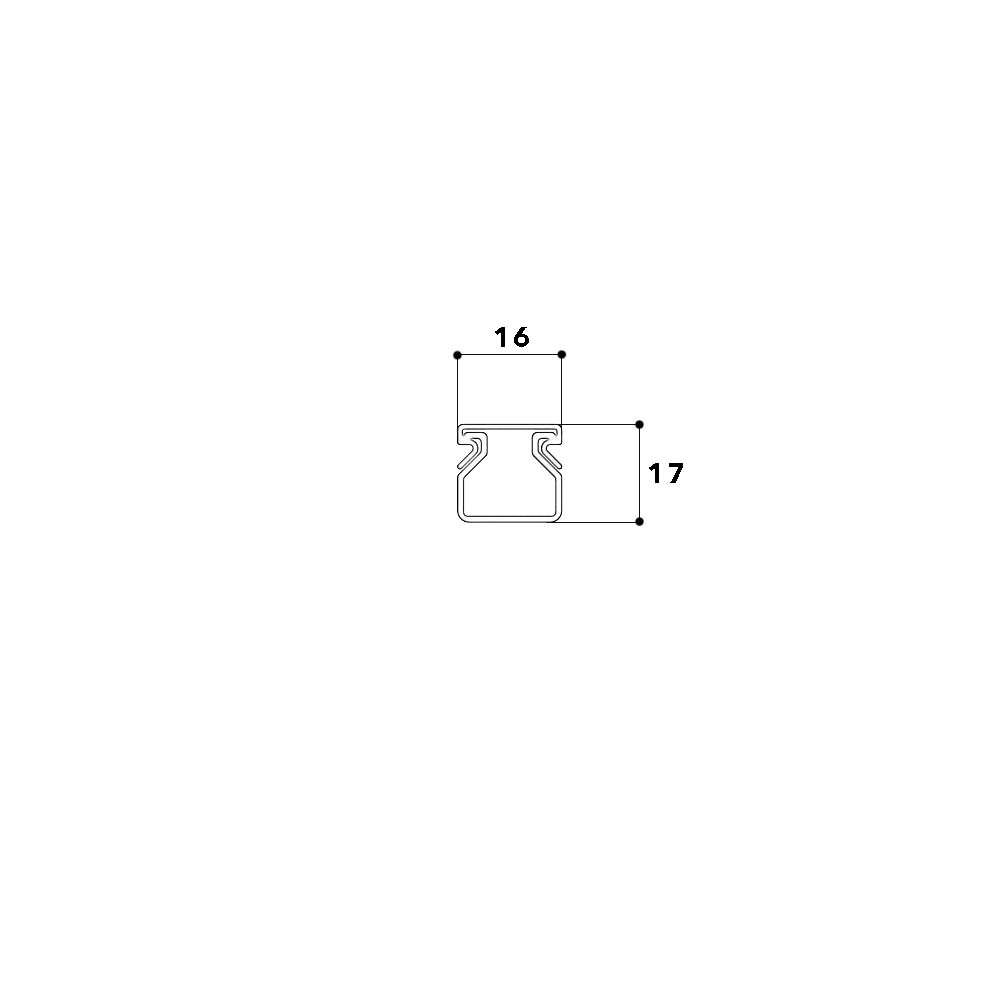

Height 17 mm
Width 16 mm
Length 2000 mm
Useful cross section 173 mm²
Material plastic
Material quality Polyvinyl chloride (PVC)
Halogen free no
Colour other
RAL-number 7030
Number of permanent partitions 0
Number of plug-in partitions 0
Type of fastening base perforation
Cover model loose
With cable fixing clip no
With protective foil no
