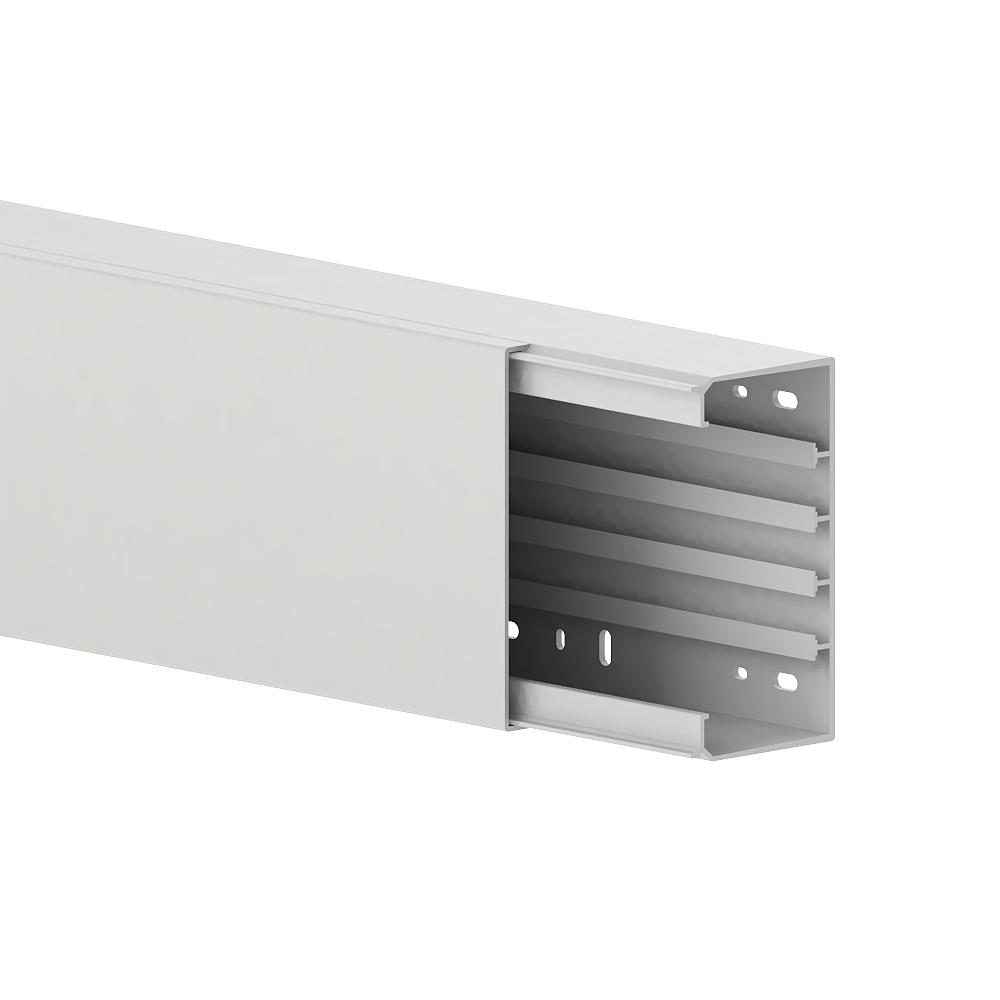

Installation trunking FB 80x150-7035, PVC, with base perforation, light grey

Manufacturer GGK
Item number 4495
List price excl. VAT 60,04 EUR / meter
Product group 10-Cable routing
Packing unit 8 meters
EAN code 4018475200111
Tariff number 39259020
Product status
Core range

PVC installation trunking according to DIN EN 50085-2-1 for cable routing on walls and ceilings, consisting of completely overlapping cover and base with double-row base perforation for fastening and two DIN rails for the installation of device installation boxes as well as snap-in partition walls, 4 freely movable cable clips are included per 2 metre. Note: Sound and fire protection measures must be carried out professionally.

Height 80 mm
Width 150 mm
Length 2000 mm
Useful cross section 10554 mm²
Material plastic
Material quality Polyvinyl chloride (PVC)
Halogen free no
Colour light grey
RAL-number 7035
Number of permanent partitions 0
Number of plug-in partitions 2
Type of fastening base perforation
Cover model loose
With cable fixing clip yes
With protective foil no
