Installation trunking FB 60x150-9001, PVC, with base perforation, cream white
Manufacturer | GGK |
Item number | 1023 |
List price excl. VAT | 44,99 EUR / meter |
Product group | 10-Cable routing |
Packing unit | 8 meters |
EAN code | 4018475010239 |
Tariff number | 39259020 |
Product status |
Core range
|

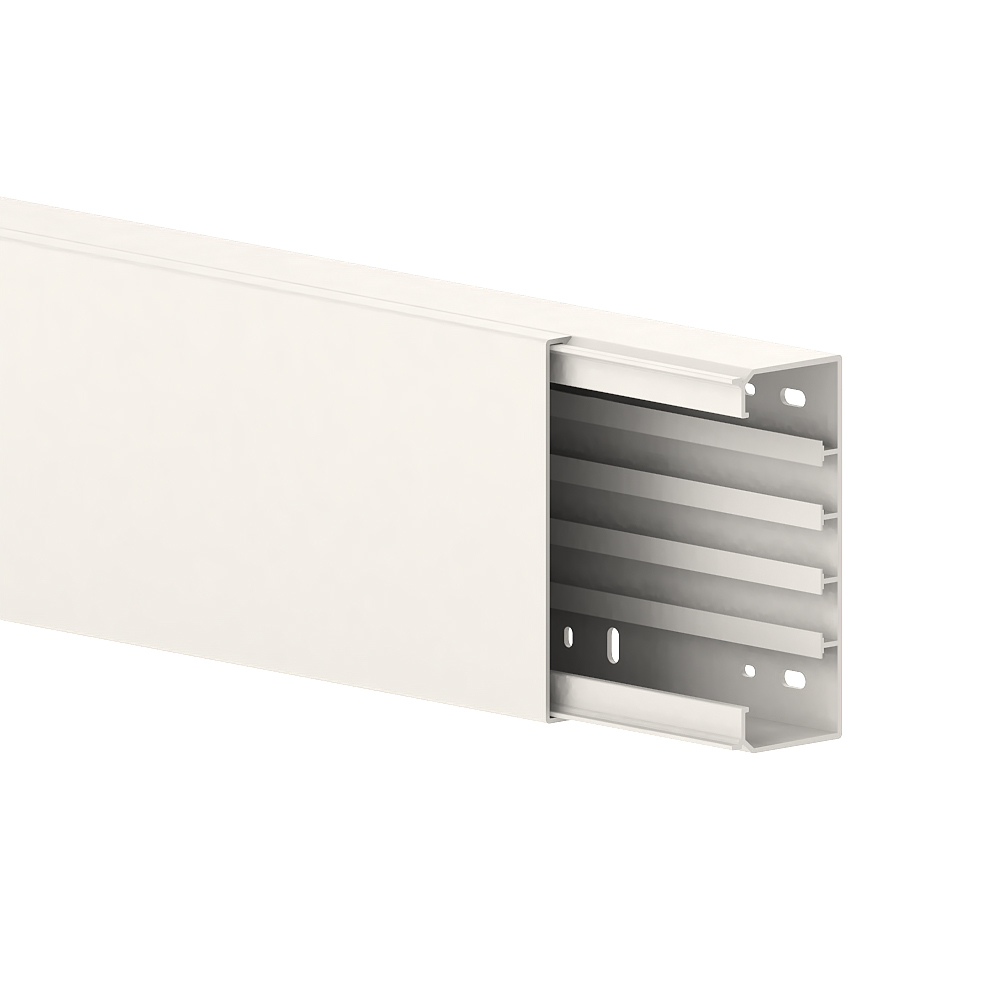

PVC installation trunking according to DIN EN 50085-2-1 for cable routing on walls and ceilings, consisting of completely overlapping cover and base with double-row base perforation for fastening and two DIN rails for the installation of device installation boxes as well as snap-in partition walls, 4 freely movable cable clips are included per 2 metre. Note: Sound and fire protection measures must be carried out professionally.

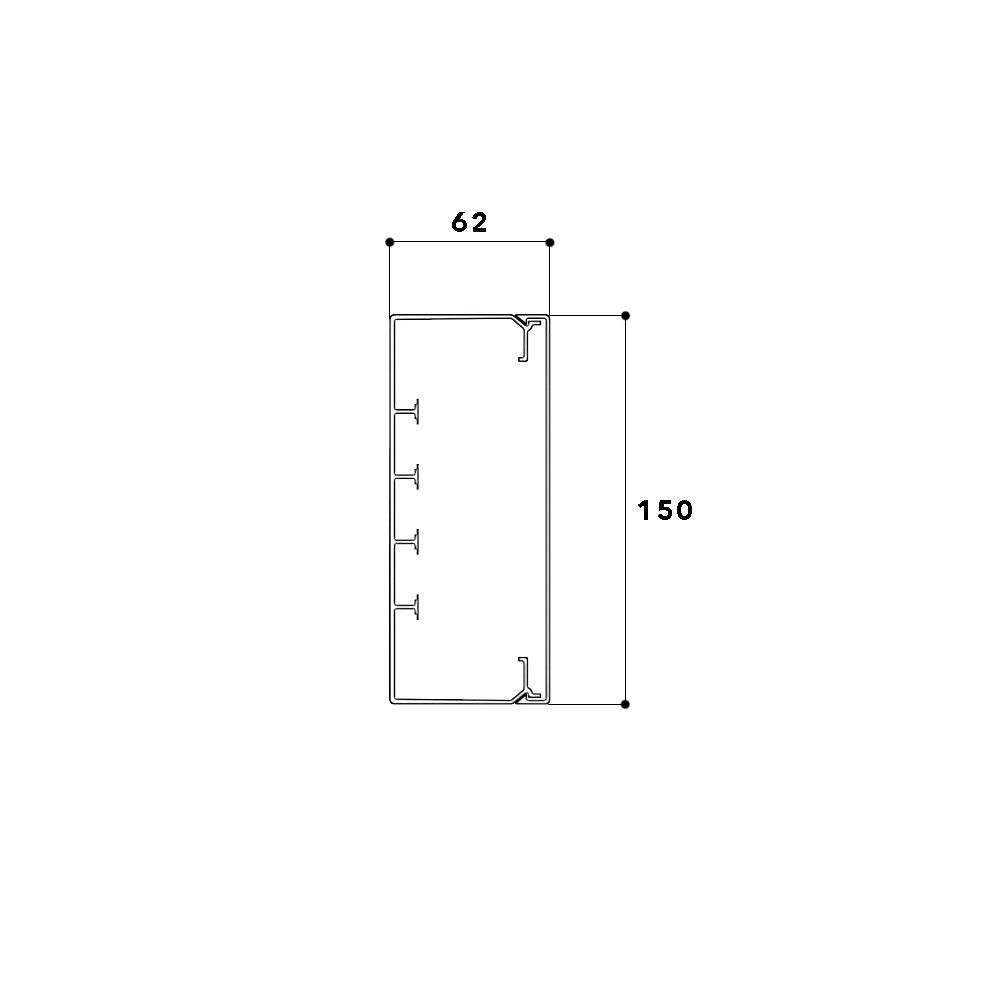

Height | 62 mm |
Width | 150 mm |
Length | 2000 mm |
Useful cross section | 7830 mm² |
Material | plastic |
Material quality | Polyvinyl chloride (PVC) |
Halogen free | no |
Colour | cream white |
RAL-number | 9001 |
Number of permanent partitions | 0 |
Number of plug-in partitions | 2 |
Type of fastening | base perforation |
Cover model | loose |
With cable fixing clip | yes |
With protective foil | no |
