Installation trunking FB 60x130-7030, PVC, with base perforation, grey

Manufacturer GGK
Item number 1010
List price excl. VAT 38,35 EUR / meter
Product group 10-Cable routing
Packing unit 10 meters
EAN code 4018475010109
Tariff number 39259020
Product status
Core range

PVC installation trunking according to DIN EN 50085-2-1 for cable routing on walls and ceilings, consisting of completely overlapping cover and base with double-row base perforation for fastening and a DIN rail for the installation of device installation boxes as well as snap-in partition walls, 4 freely movable cable clips included per 2 metre. Note: Sound and fire protection measures must be carried out professionally.

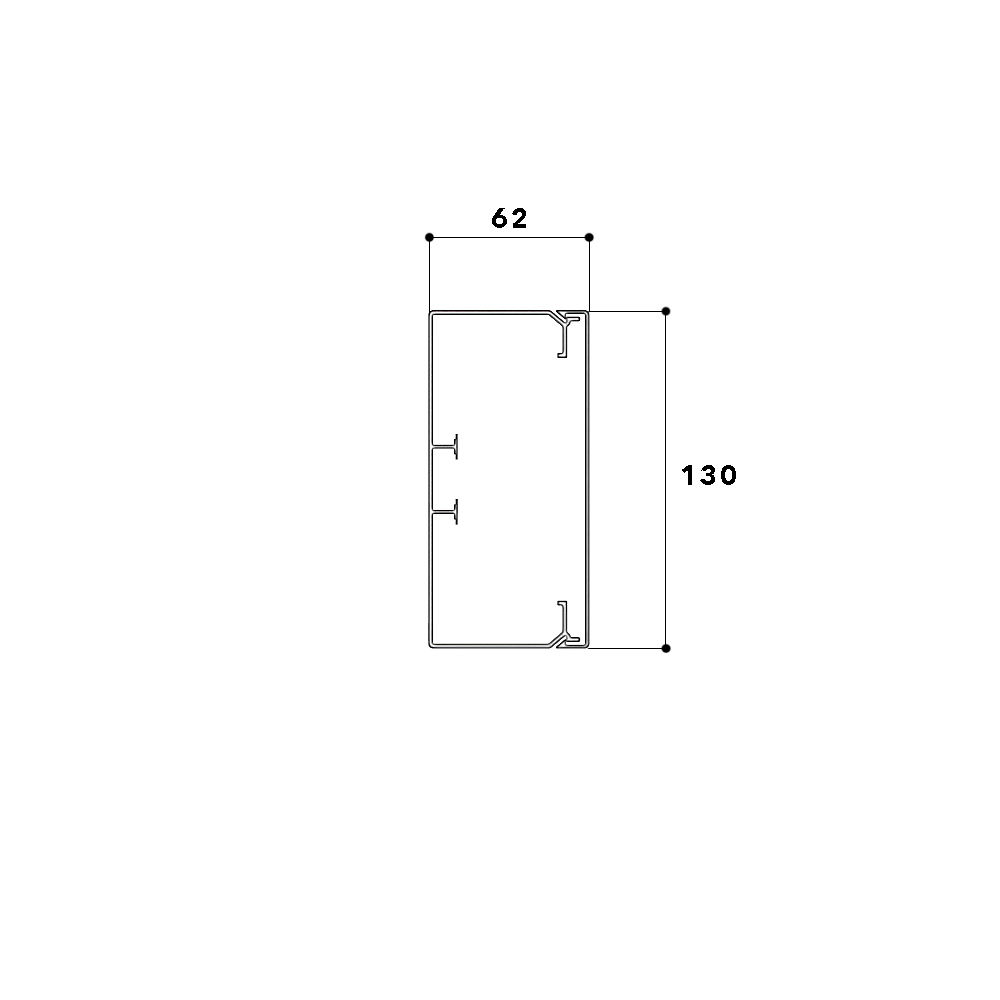

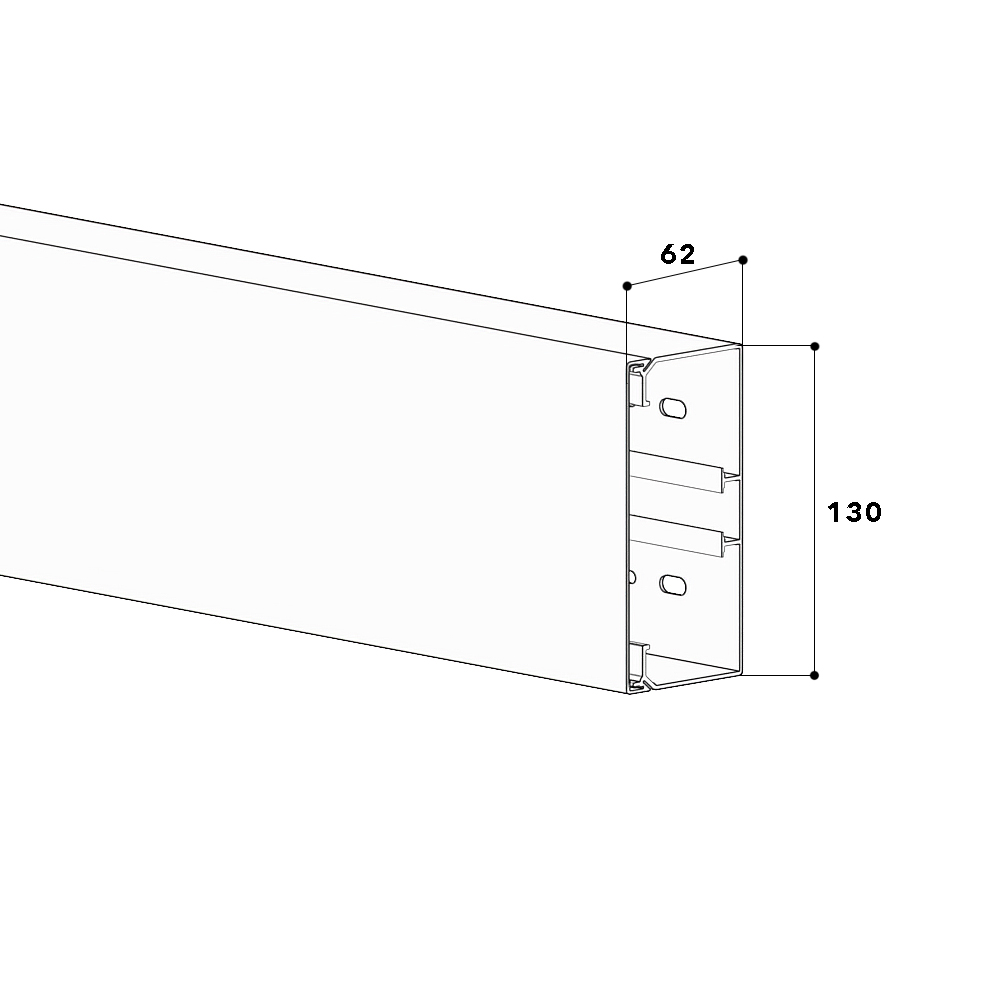

Height 62 mm
Width 130 mm
Length 2000 mm
Useful cross section 6890 mm²
Material plastic
Material quality Polyvinyl chloride (PVC)
Halogen free no
Colour grey
RAL-number 7030
Number of permanent partitions 0
Number of plug-in partitions 1
Type of fastening base perforation
Cover model loose
With cable fixing clip yes
With protective foil no
