Installation column MRS 70, 650 mm, round, aluminium, anodised
| Manufacturer | GGK |
| Item number | 18650 |
| List price excl. VAT | on request |
| Product group | 30-floor and ceiling installation |
| Packing unit | 1 piece |
| EAN code | 4018475331228 |
| Tariff number | 76109090 |
| Product status |
Core range
|

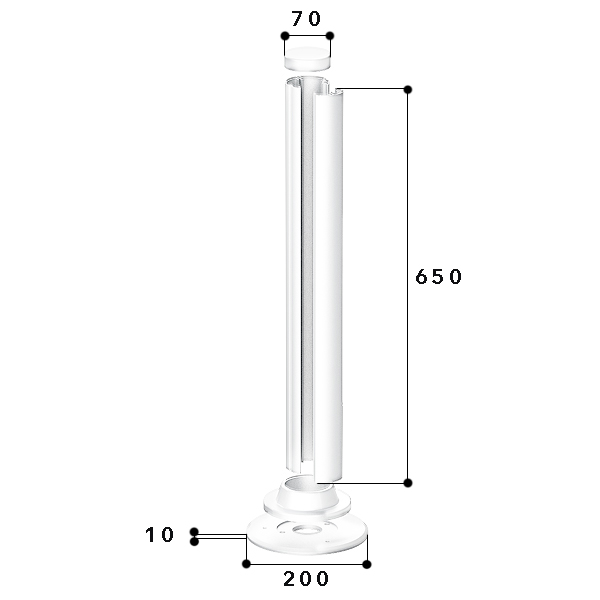

Powerpole made of aluminium with a 45 mm wide fixing track for device installation of compact M45 built-in devices in the 45x45 mm format, cable entry through the base, consisting of base and cover as pole body (height 650 mm), two circular segment covers including fixing pins for closing the semicircular openings, a fixed-mountable base plate (diameter: 200 mm, material thickness: 10 mm), a 360° all-round lamination for a clean transition from the base plate to the column body and an end cap for a clean finish. Potential equalisation and earthing measures must be carried out professionally. The specified length corresponds to the length of the column body.
| Pillar shape | Round |
| Model | Single-sided |
| Prewired | no |
| Adjustable | no |
| Height levelling | 0 mm |
| Column height | from 650 to 650 mm |
| Diameter | 70 mm |
| Number of usable covers | 1 |
| Cover width | 45 mm |
| Cover depth | 10 mm |
| Type of fastening | Stand (base) |
| Place variable | no |
| Suitable for ceiling mounting | no |
| Suitable for floor mounting | yes |
| Cable entry | bottom |
| Through-going profile | yes |
| Material installation column | aluminium |
| Material quality installation column | other |
| Material installation column halogen free | yes |
| Surface protection column | anodised |
| Colour column | silver |
| Material cover | aluminium |
| Material quality cover | other |
| Material cover halogen free | yes |
| Cover surface | anodised |
| Colour cover | silver |
| Number of partitions | 0 |
| Useful cross section | 3241 mm² |
