Installation column 124x110, 650 mm, 2-sided, aluminium, anodised
| Manufacturer | GGK |
| Item number | 18653 |
| List price excl. VAT | on request |
| Product group | 30-floor and ceiling installation |
| Packing unit | 1 piece |
| EAN code | 4018475331303 |
| Tariff number | 76109090 |
| Product status |
Core range
|

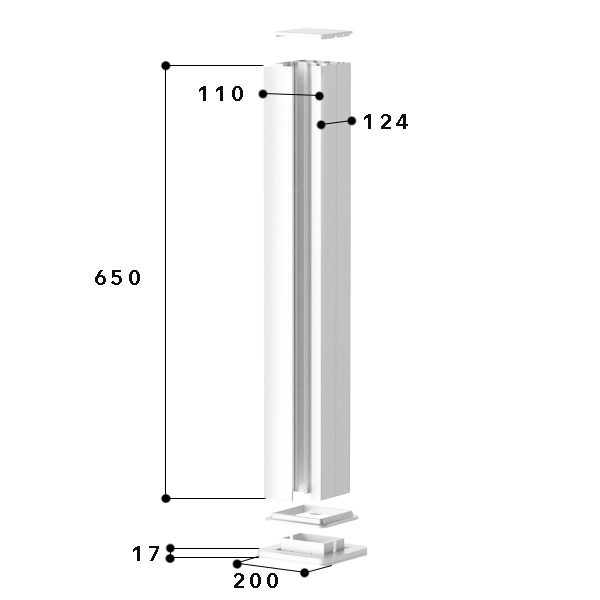

Powerpole made of aluminium with two 76.5 mm wide fixing tracks for device installation of commercially available switch ranges in combination with accessory mounting boxes or M45 built-in devices with the aid of front-locking installation frames, cable entry through the base, consisting of two bases with a DIN rail for snap-in mounting of a plastic partition for separating cables and two covers as pole body (height 650 mm), a fixed-mountable base plate (width: 200 mm, depth: 200 mm, material thickness: 17 mm) and a top plate to secure against unauthorised opening and for a clean finish. Potential equalisation and earthing measures must be carried out professionally. The specified length corresponds to the length of the column body.
| Pillar shape | rectangular |
| Model | double-sided |
| Prewired | no |
| Column height | 650 - 650 mm |
| Column depth | 132 mm |
| Column width | 110 mm |
| Number of usable covers | 2 |
| Cover width | 45 mm |
| Cover depth | 15 mm |
| Type of fastening | stand (base) |
| Place variable | no |
| Cable entry | bottom |
| Through-going profile | yes |
| Material installation column | aluminium |
| Material installation column halogen free | yes |
| Surface protection column | anodised |
| Colour column | silver |
| Material cover | aluminium |
| Material cover halogen free | yes |
| Cover surface | anodised |
| Useful cross section | 12010 mm² |
| Floor mounting possible | yes |
| Ceiling mounting | no |
