Inner corner FB 100x230-7035, PVC, mitre moulding, light grey
| Manufacturer | GGK |
| Item number | 4501 |
| List price excl. VAT | 173,83 EUR / piece |
| Product group | 10-Cable routing |
| Packing unit | 1 piece |
| EAN code | 4018475200050 |
| Tariff number | 39259020 |
| Product status |
Core range
|

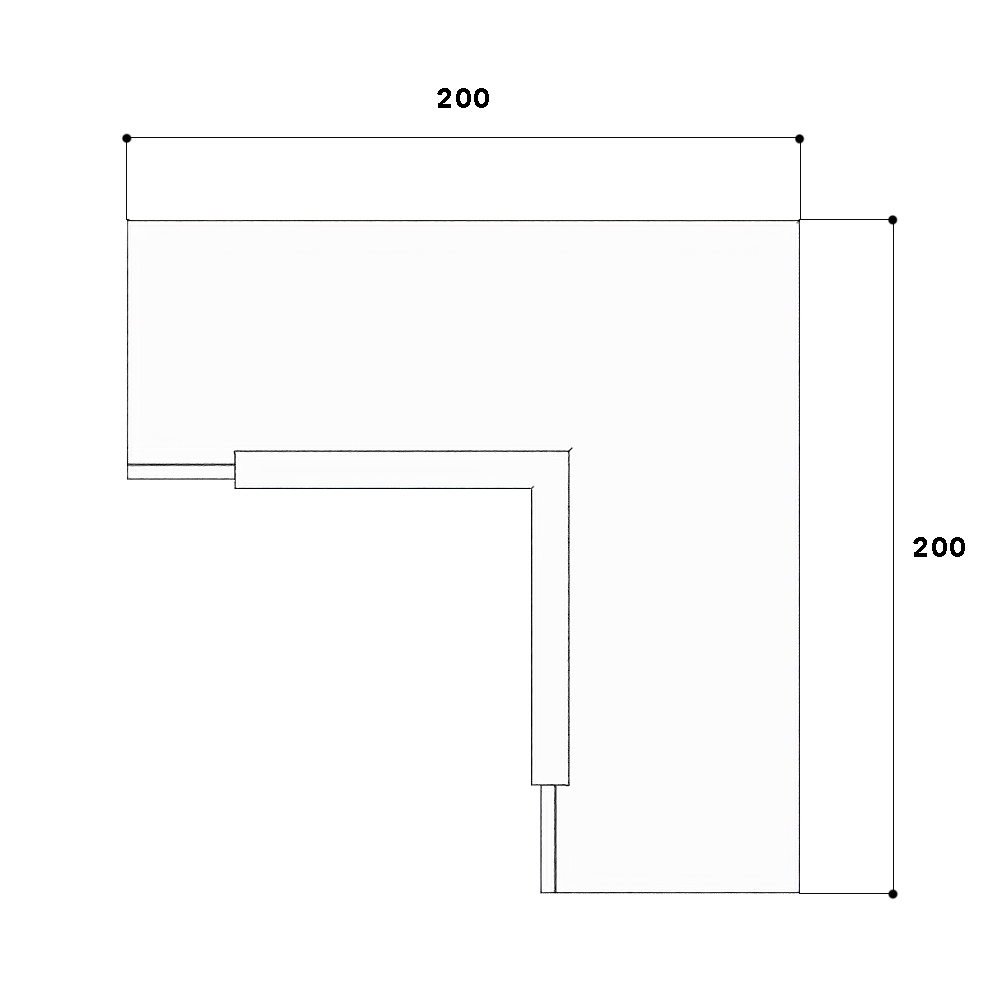

Internal corner 90°, from the basic profile of the installation trunking made of PVC, for corner bypass in rooms, side length: 200 mm.
| Height | 62 mm |
| Width | 230 mm |
| Model | Base unit and cover |
| Angle | from 90 to 90 ° |
| Material | plastic |
| Material quality | other |
| Halogen free | no |
| Anti-bacterial treatment | no |
| Surface protection | untreated |
| Suitable for circuit integrity | no |
| Type of fastening | snap on |
| Colour | grey |
| RAL-number | 7035 |
| Degree of protection (IP) | IP30 |
| Impact strength | IK07 |
| Operating temperature | from -5 to 60 °C |
Please visit our Downloads section.
