Inner corner BR 60x110/80-9001, PVC, mitre moulding, cream white
| Manufacturer | GGK |
| Item number | 18369 |
| List price excl. VAT | 33,57 EUR / piece |
| Product group | 20-Wall installation |
| Packing unit | 1 piece |
| EAN code | 4018475282513 |
| Tariff number | 39259020 |
| Product status |
Core range
|

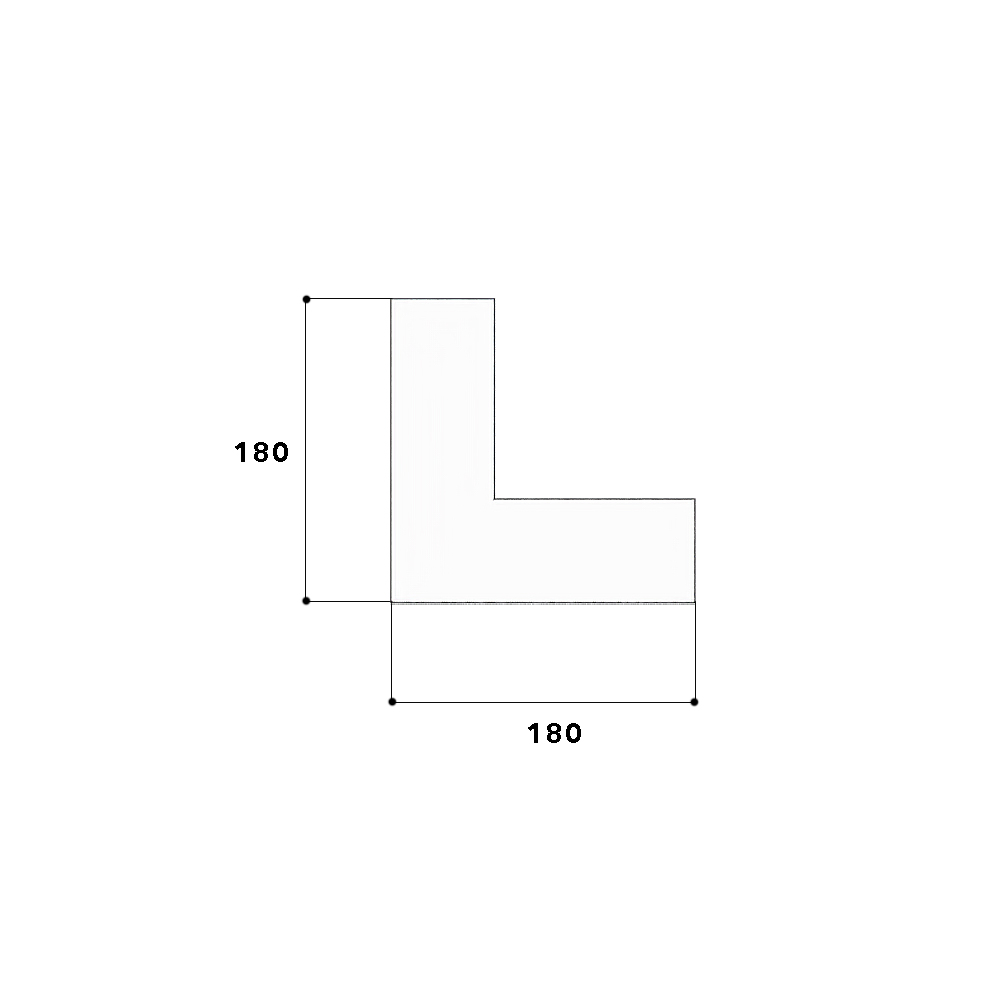

Internal corner 90°, made from the basic profile of the PVC wall duct base, for corner bypass in rooms, side length: 180 mm.
| Width | 110 mm |
| Depth | 62 mm |
| Shape | Symmetric |
| Number of covers | 1 |
| Cover width 1 | 80 mm |
| Model | Base unit and cover |
| Angle | from 90 to 90 ° |
| Material | plastic |
| Material quality | Polyvinyl chloride (PVC) |
| Halogen free | no |
| Anti-bacterial treatment | no |
| Surface protection | untreated |
| Colour | white |
| RAL-number | 9001 |
| With protective foil | no |
| With duct connector | no |
| Mounting perforation in bottom | yes |
| Mounting method cover | Inner lying |
| With cable fixing clip | no |
| Degree of protection (IP) | IP30 |
| Impact strength | IK10 |
| Operating temperature | from -5 to 60 °C |
Please visit our Downloads section.
