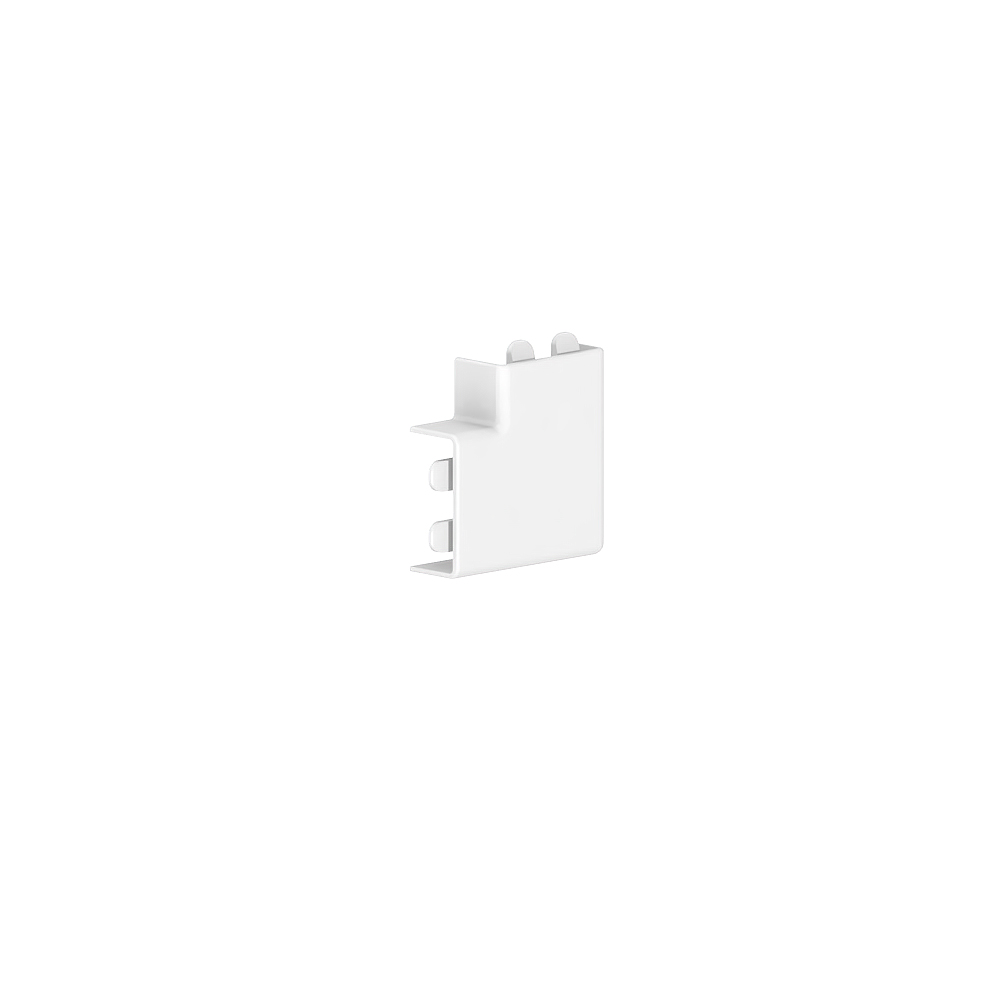

Flat angle Mini 10x20-9010, plastic hf, cut-covering, pure white
| Manufacturer | GGK |
| Item number | 214573 |
| List price excl. VAT | 2,68 EUR / piece |
| Product group | 10-Cable routing |
| Packing unit | 4 pieces |
| EAN code | 4018475265677 |
| Tariff number | 39259020 |
| Product status |
Core range
|
Flat angle as moulded hood for installation trunking, for cable routing with a 90° change of direction.
| Height | 10 mm |
| Width | 22 mm |
| Model | Moulded hood |
| Angle | from 90 to 90 ° |
| Material | plastic |
| Material quality | other |
| Halogen free | yes |
| Anti-bacterial treatment | no |
| Surface protection | untreated |
| Suitable for circuit integrity | no |
| Colour | white |
| RAL-number | 9010 |
| With protective foil | no |
| Type of fastening | snap on |
| Degree of protection (IP) | IP30 |
| Impact strength | IK07 |
| Operating temperature | from -5 to 60 °C |
