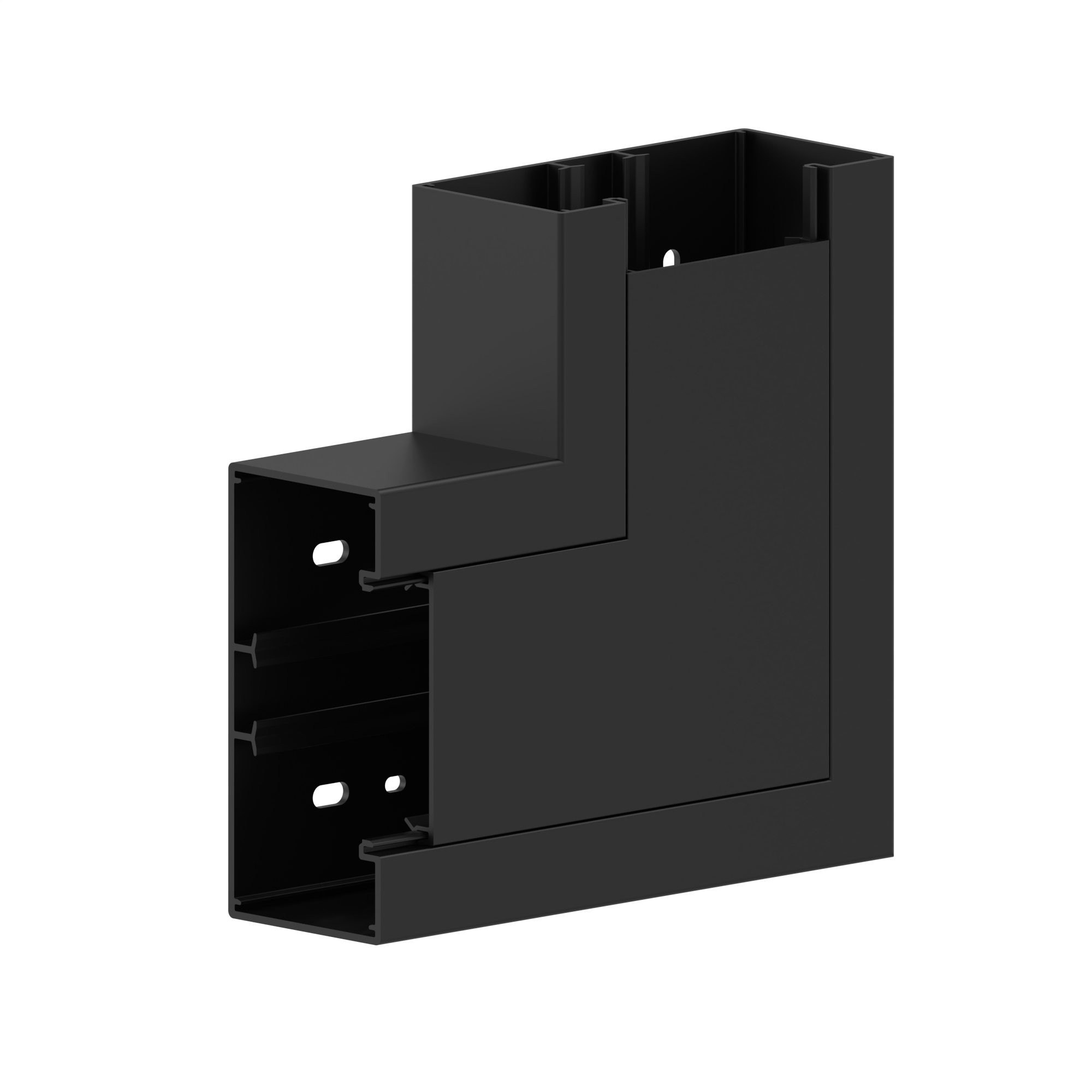

Flat angle BR 60x130/80-9005, PVC, mitre moulding, black
| Manufacturer | GGK |
| Item number | 18351 |
| List price excl. VAT | 53,65 EUR / piece |
| Product group | 20-Wall installation |
| Packing unit | 1 piece |
| EAN code | 4018475348134 |
| Tariff number | 39259020 |
| Product status |
Core range
|

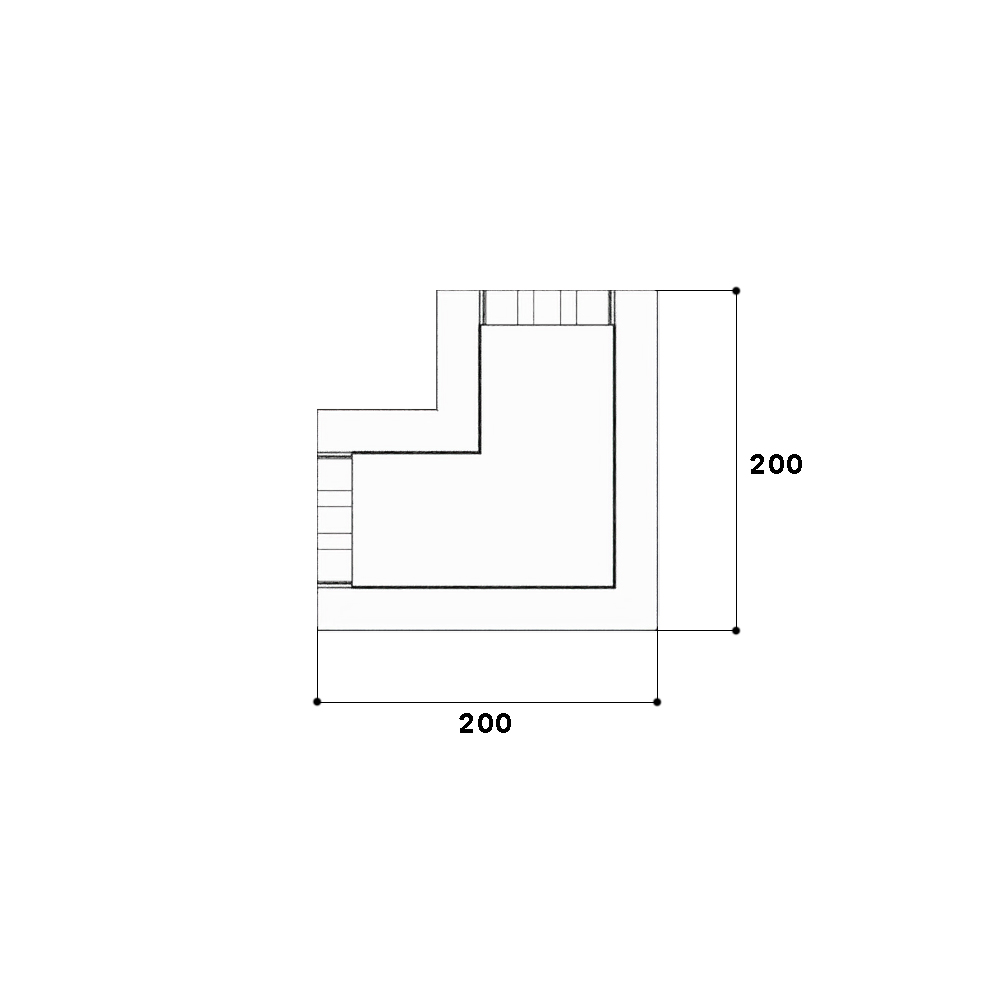

Flat angle, from the basic profile of the wall duct made of PVC, for cable laying with a 90° change of direction on the wall, side length: 200 mm.
| Width | 130 mm |
| Depth | 62 mm |
| Number of covers | 1 |
| Cover width 1 | 80 mm |
| Direction | rising/descending |
| Symmetric | yes |
| Model | base and cover |
| Angle | 90 - 90 ° |
| Material | plastic |
| Halogen free | yes |
| Colour | other |
| RAL-number | 9005 |
| Mounting method cover | inner lying |
