End-piece 3-sided BR 60x170/80-9006, plastic hf, cut-covering, alu
| Manufacturer | GGK |
| Item number | 12766 |
| List price excl. VAT | 31,24 EUR / piece |
| Product group | 20-Wall installation |
| Packing unit | 2 pieces |
| EAN code | 4018475272446 |
| Tariff number | 76109090 |
| Product status |
Core range
|

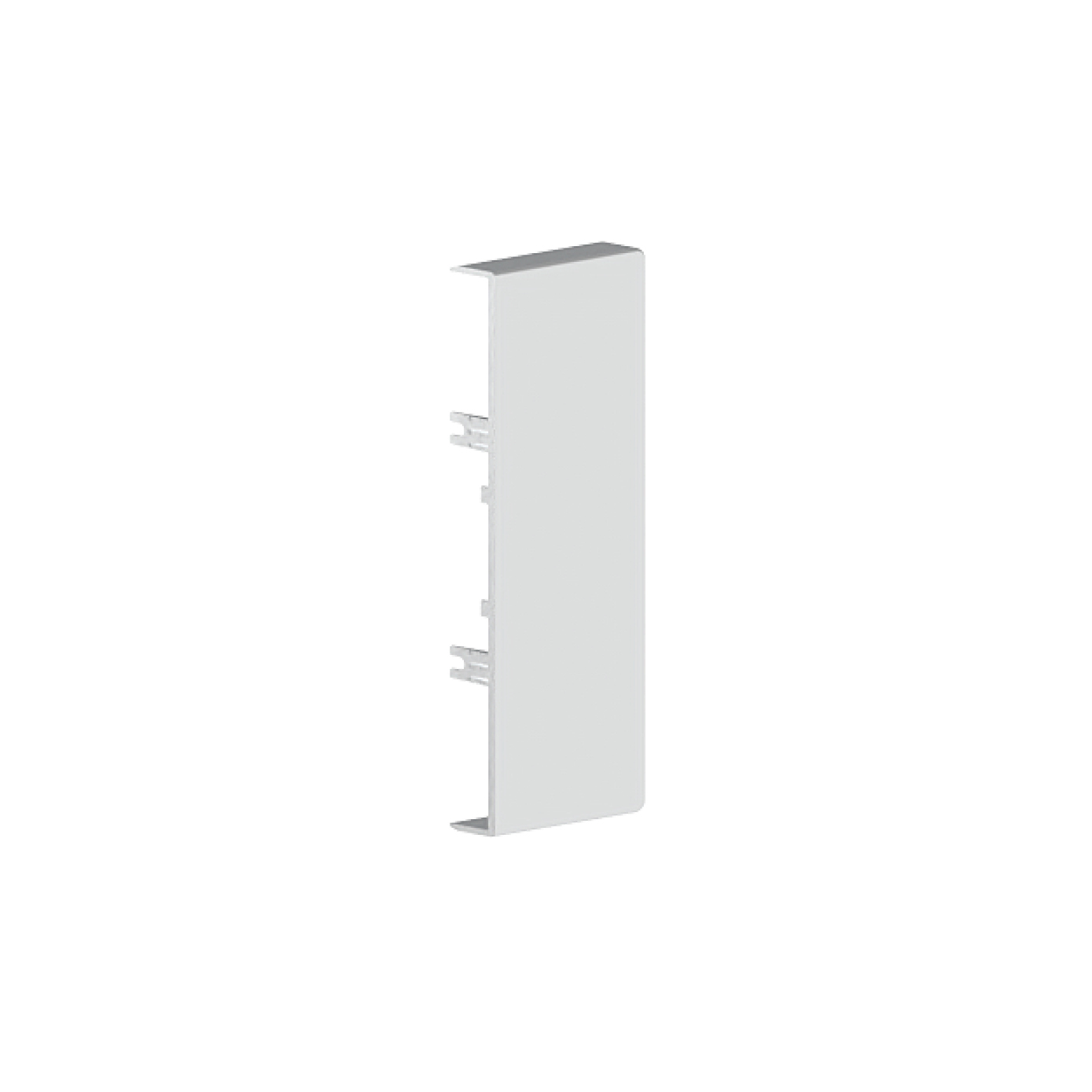

End piece as moulding for wall duct, for a clean finish and for covering open ends of the wall trunking, overlapping on 3 sides for a wall-mounted wall trunking.

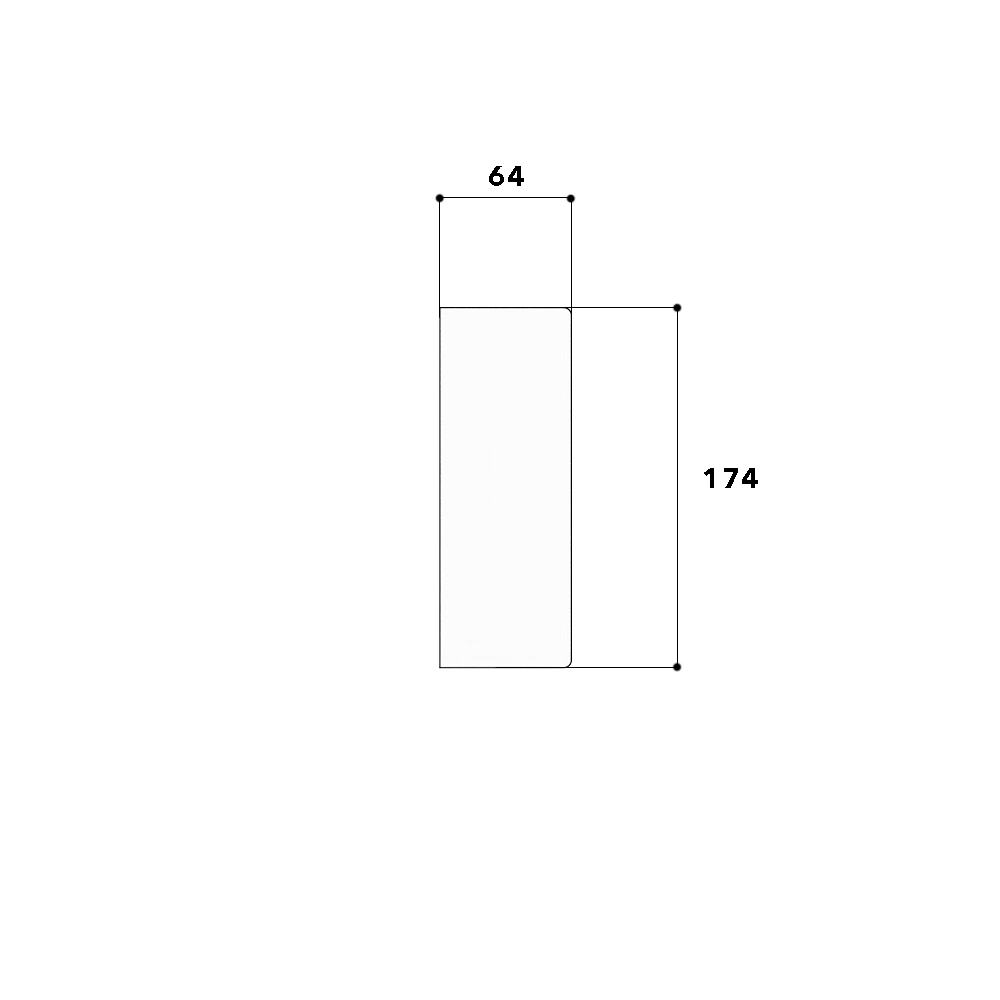

| Width | 170 mm |
| Depth | 62 mm |
| Thickness | 2 mm |
| Model | Symmetric |
| Suitable for | Left/right |
| Joint cover | yes |
| Type of fastening | snap on |
| Material | plastic |
| Material quality | Polyvinyl chloride (PVC) |
| Halogen free | no |
| Anti-bacterial treatment | no |
| Surface protection | wet varnished |
| Colour | aluminium |
| RAL-number | 9006 |
| With protective foil | no |
| Degree of protection (IP) | IP30 |
| Operating temperature | from -5 to 60 °C |
| Impact strength | IK10 |
